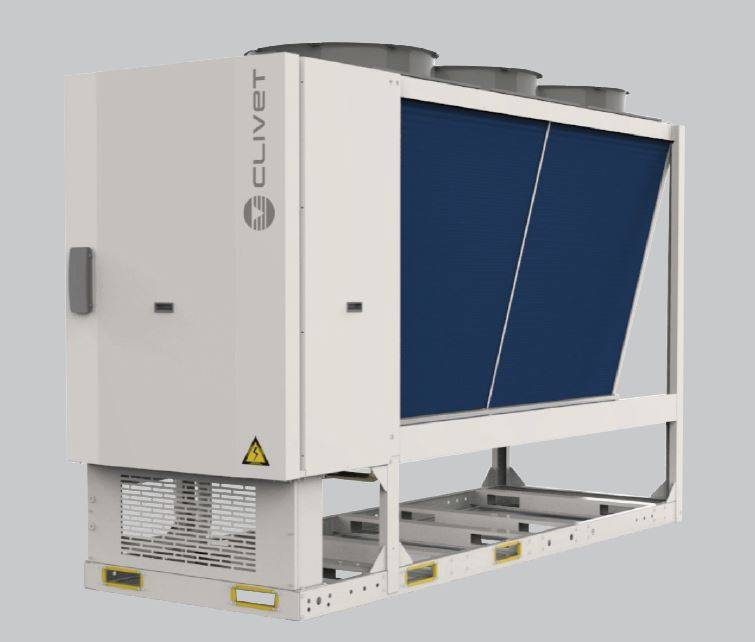

ELFOEnergy STORM EVO - WSAN-YES - Air Source Inverter Heat Pump

Verified by manufacturer 15 days ago

18.2

Clivet UK Variant:

Air source inverter heat pump for outdoor installation.

Jump to:
02392381235 Website

Application

Designed for outdoor applications.

Description

ELFOEnergy Storm EVO (WSAN-YES) series is the new air cooled heat pump, equipped with Full DC Inverter technology and R32 refrigerant, for outdoor installation. It is available from 53 kW up to 85 kW and is the most effective and valuable solution both in terms of capital investment and running costs.

Features and benefits:

    • Range 53–85 kW.
    • SCOP (W35) up to 4.08
    • SCOP (W55) up to
    • SEER up to 4.64.
    • Capacity modulation from 30% to 100%.
    • Up to 16 modules in a local network.
    • Operating with 48°C of outdoor air temperature in cooling.
    • Operating with -15°C of outdoor air temperature in heating.
    • Hot water production up to 55°C.
    • Copper/aluminium condensing coil.
    • Plate exchanger.
    • One refrigeration circuit.
    • All models satisfy prerequisites 2 (Minimum Energy Performce) and 3 (Fundamental Refrigerant Management) of Energy and Environment thematic area of LEED certification.
    • Eurovent Certified.
    • ErP Compliant.

General information

Color

Cream

Guidance for specification option:

RAL 9001.

White

Finish

Powder-coated

Material

Steel

Zinc

Aluminium

Shape

Rectangle

Length

2364 mm

3220 mm

Width

1130 mm

Height

2155 mm

Warranty description

One year

Uniclass

Pr_70_60_37_04 Air-to-water heat pumpsPrimary

CAWS

T90/505 Air-to-water heat pumps

T90/505 Air-to-water heat pumps

SKU Code

WSAN-YES

Specification data - Air-to-water heat pumps

Standards

-

Test requirements

To BS EN 14511-1, BS EN 14511-2, BS EN 14511-3 and BS EN 14511-4.

Electrical safety

To BS EN 60335-2-40.

Heat pump type

Monobloc.

Mode

Cooling and heating.

Coefficient of performance (minimum)

3.21.

Output

-

Heating

53.3 kW.

Cooling

53.1 kW.

Fan

-

Type

Axial.

Fan drive

Direct.

Configuration

Vertical.

Electrical supply type

Three phase.

Compressor

-

Type

Rotary vane.

Sealing

Hermetically sealed.

Drive

Inverter driven.

Accessories

Not required.
User side hydronic assembly with one inverter pump.
Steel inertial storage tank.
Built-in three way valve for domestic hot water on the unit.
Finned coil protection grill.

Refrigerant

R32.

EnergyEfficiencyRatio

2.95.

Guidance for specification option:

Seasonal Energy Efficiency Ratio (SEER): 4.57.

Manufacturer guidance

Terminal unit - cooling.

CoolingWaterFlowRate

2.58 L/s.

Manufacturer guidance

Terminal unit - cooling.

PressureDrop

26.0 kPa.

Manufacturer guidance

User side internal exchanger pressure drops.

Terminal unit - cooling.

CompressorCapacity

18 L.

Compressor

Two.

Manufacturer guidance

Number of compressors.

Coil

Hydrophilic aluminium fins coil.

Guidance for specification option:

Standard.

Copper/ aluminium condenser coil with acrylic lining.

Condenser coil with Aluminium Energy Guard DCC treatment.

Dimensions

2364 x 1130 x 2155 mm.

Manufacturer guidance

L x D x H.

SoundPressure

64 dB (A).

Guidance for specification option:

  • Silenced mode: 56 dB (A).
  • Super silenced mode: 52 dB (A).
  • At maximum conditions: 67 dB (A).

Manufacturer guidance

Sound pressure levels.

Standard mode.

Sustainability data

Country of product manufacture

Italy

Material

Steel
Zinc
Aluminium

Literature

ELFOEnergy STORM EVO - WSAN-YES 18.2–35.2 Range

ELFOEnergy STORM EVO - WSAN-YES 18.2–35.2 Range
