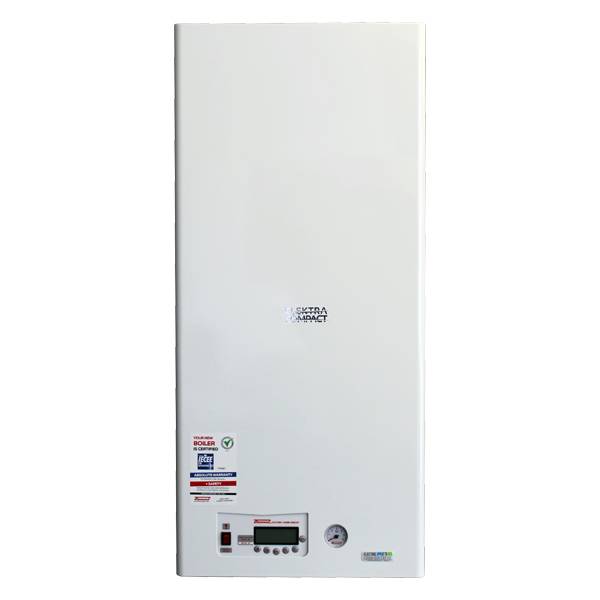

Elektra Electric Combi Boiler Wall hung with inbuilt cylinder EK.BPC

Using an electric combi boiler allows the end user to run the heating & hot water more safely and efficiently whilst being economical.

All three boilers can heat up a small flat to a big house. In case of a big house i.e. with large number of radiators, the only difference will be that the radiators will take slightly longer to heat up.

  • Clean and safe form of heating.
  • Instantaneous and continuous hot water.
  • 230/240 V single phase.
  • Uses 50 Amps.
  • Uses 10 mm cable.
  • Completely silent due to TRIAC based technology (D.E.S. system).
  • Can be used with radiators or under floor heating.
  • Modulates from 2kW - 12kW (Central heating).
  • Digitally displays temperatures.
  • Hot water limited to 60°C (EK.BPL, EK.BPC).
  • Central Heating limited to75°C.
  • Anti-Legionella function(EK.BPL, EK.BPC).
  • 37.5 lt glass lined, insulated cylinder with inspection flange,fitted with.
  • magnesium anode and mounted with an insulated boiler casing(EK.BPL,
  • EK.BPC only).
  • All boilers come with 2 years warranty.

General information




Digital temperature display, clean and safe form of heating, instantaneous hot water, no external hot water tank required, silent running, easy installation, eco and comfort mode available, fully insulated


428 x 875 x 450 mm


2 years

Uniclass 2015

Pr_60_60_08_27 Electric boilersPrimary
Specification data - Electric boilers
