Electroflo® Avanti™ Tap
Verified by manufacturer 25 days ago
Stainless Steel Effect– 326575
Stainless Steel Effect– 326575
Automatic, washbasin tap.
Application
Suitable for use within commercial washrooms applications that have either vanity tops or wash basins.
Description

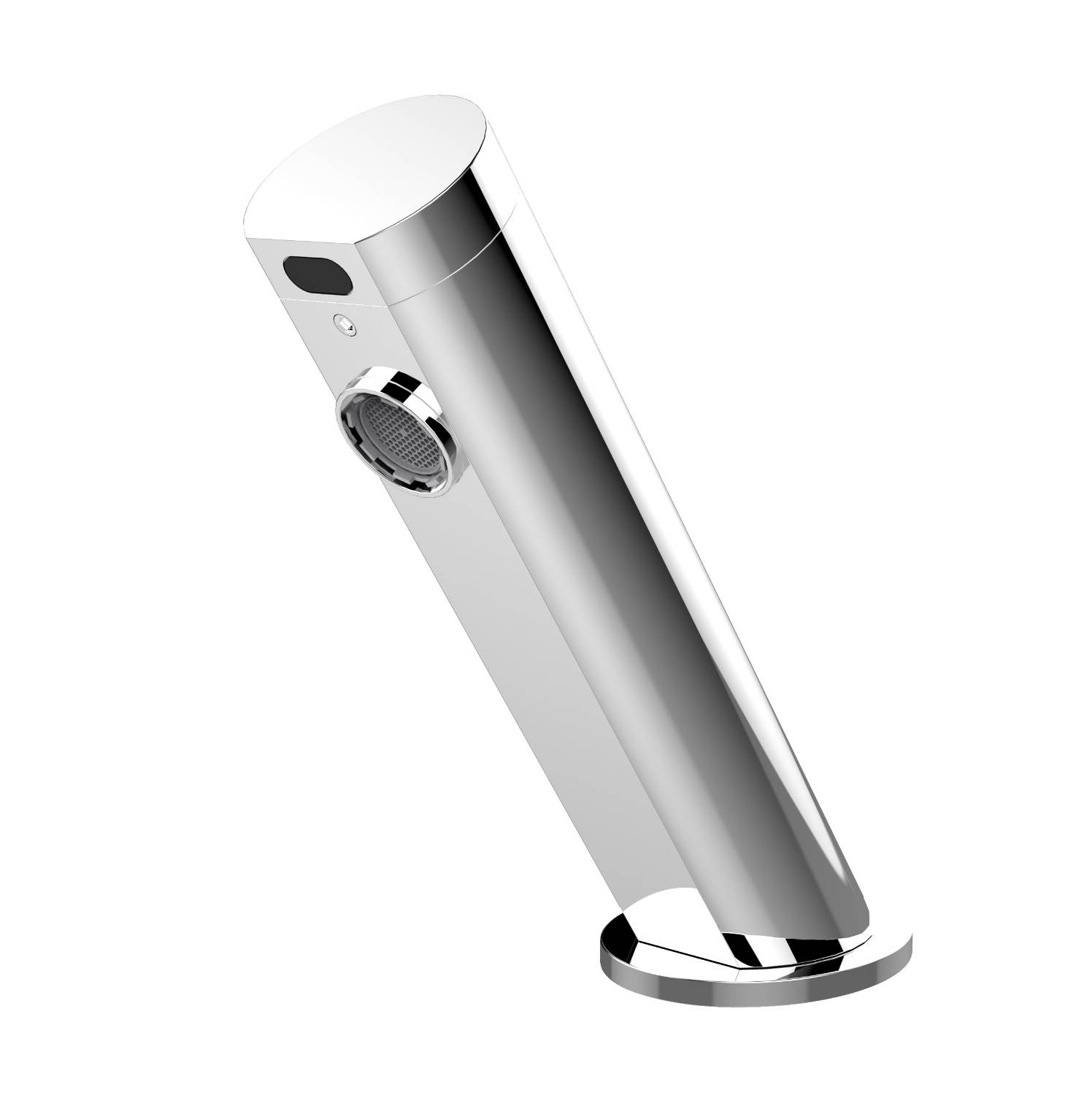

The Dudley Avanti™ Electroflo® Tap is a vanity top and basin mounted electronic tap. For use in most domestic and commercial applications. Angled in a way to ensure that hands can be easily placed in the waterflow while retaining the ability to be mounted in a reduced space area. Delivers as little as 1 litre of water per visit.
Features and benefits:
- Supports BREEAM.
- Sleek minimalist design.
- Hygienic touch free operation.
- Delivers cold or premixed water (thermostatic mixing valve required for premixed water).
- Robust one piece brass body and vandal resistant design.
- 15 mm push-fit connection.
- Mains or battery powered options available.
- Tap shuts off when hand is removed from sensor, water delivery rates can be adjusted.
- Fail safe feature automatically closes the solenoid when power is cut or power is very low.
- Available in polished chrome and stainless steel finishes.
- Pre-fitted with 5 LPM flow regulator.
- 50–300 mm sensor range.
- Suitable for pressures of 0.5–8.0 bar with flow restrictor.
General information
Color | Silver |
Finish | Chrome Stainless steel |
Material | Brass |
Shape | Other |
Length | 135 mm |
Height | 147.5 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/341 Vanity tops with formed washbasins N13/335 Washbasins N13/30 Washbasins |
SKU Code | 326400, 326575 |
Specification data - Washbasin taps
Form | Automatic-action cold tap. Automatic-action mixer tap. Guidance for specification option: Thermostatic mixing valve required for premixed water. |
Materials | |
Body | Brass. |
Finish and colour | Stainless steel finish. |
Flow rate (maximum) | 6 L/minute at 8 bar. Guidance for specification option: 1.9–3.5 L/minute available, consult manufacturer. 0.5–8.0 bar of pressure when fitted with a flow restrictor. |
Water supply temperature (maximum) | 70°C. |
Integral accessories | Occupancy detectors. |
Spout projection | 135 mm. |
Spout height | 98 mm. |
Height | 147.5 mm. |
Sensor | Infra-red, 50–300 mm activation range. |
Water pressure | 0.5–8.0 bar. |
Power supply | Mains, 230 V AC 50 Hz. Battery, 9 V DC PP3. |
Operating voltage | 9 V, DC. |
Connection | 15 mm push-fit. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Israel |
Country of product manufacture | Israel |
Material | Brass |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
