Electro-magnetic Locks

Features:

• Always fail unlocked.

• Steel armature fixed through door provides secure mounting.

• Monitored locks have LED indicator on underside of unit.

Type:

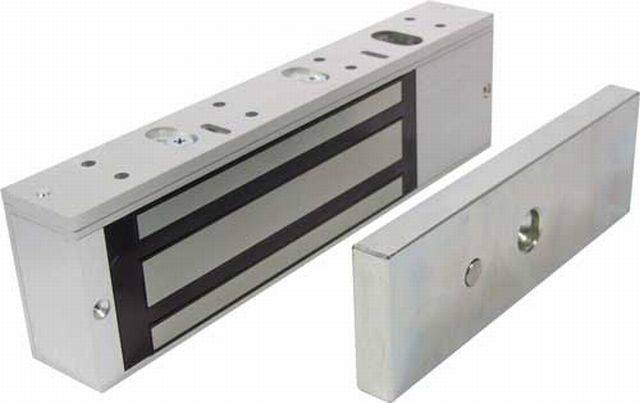

– 912.05.001/ 912.05.002/ 912.05.003/ 912.05.004:

• Single and double electromagnetic locks.

• Aluminium body.

• Single lock (h x w x d): 73 x 266 x 40 mm.

• Double lock (h x w x d): 73 x 532 x 40 mm.

• Single locking plate (h x w x d): 60 x 185 x 12 mm.

• Holding force (per magnet): 545 kg.

• Current consumption: 12 V DC, 500 mA; 24 V DC, 250 mA.

– 912.05.011/ 912.05.012/ 912.05.013/ 912.05.014:

• Mini electromagnetic locks.

• Aluminium body.

• Single lock (h x w x d): 42 x 250 x 25 mm.

• Double lock (h x w x d): 42 x 500 x 25 mm.

• Single locking plate (h x w x d): 38 x 185 x 12 mm.

• Holding force (per magnet): 270 kg.

• Current consumption: 12 V DC, 500 mA; 24 V DC, 250 mA.

– 912.05.060:

• Micro electromagnetic locks.

• Aluminium body.

• Lock size (h x w x d):34 x 166 x 21 mm.

• Locking plate size (h x w x d): 32 x 130 x 9 mm.

• Holding force: 180 kg.

• Monitored.

• Current consumption: 12 V DC, 630 mA; 24 V DC, 315 mA.

– 921.05.061/ 21/05/063:

• Single lock in 1 m horizontal housing.

• For outward opening swing doors.

• Aluminium body with brushed anodized housing.

• Lock size (h x w x d): 44 x 1000 x 31.5 mm.

• Locking plate size (h x w x d): 30 x 178 x 12 mm.

• Holding force (maximum): 300 kg.

• Current consumption: 12 V DC, 250 mA; 24 V DC, 500 mA.

– 912.05.062/ 912.05.062:

• Two locks mounted near the centre of a 2 m housing.

• For outward opening double swing doors.

• Aluminium body.

• Lock size (h x w x d): 44 x 2000 x 31.5 mm.

• Locking plate size (h x w x d): 40 x 178 x 12 mm.

• Holding force (maximum): 300 kg.

• Current consumption: 12 V DC, 250 mA; 24 V DC, 500 mA.

– 912.05.065:

• Weatherproof lock, for outward opening swing gates.

• Unmonitored.

• Aluminium body, brushed stainless steel cover.

• Lock size (h x w x d): 70 x 220 x 40 mm.

• Locking plate size (h x w x d): 63 x 190 x 12 mm.

• Holding force: 500 kg.

• Current consumption: 12 V DC, 500 mA; 24 V DC, 250 mA.

– 912.05.066:

• Mortice fixing Shearlock.

• Aluminium body.

• Lock size (h x w x d): 30 x 164 x 21 mm.

• Locking plate size (h x w x d): 30 x 164 x 25 mm.

• Shear force (maximum): 1000 kg.

• Current consumption: 1.5 A pull in for 2 seconds, 500 mA continuous hold.

– 912.05.067:

• Surface fixing Shearlock.

• Aluminium body.

• Lock size (h x w x d): 38 x 294 x 38 mm.

• Locking plate size (h x w x d): 38 x 294 x 38 mm.

• Shear force (maximum): 1000 kg.

• Current consumption: 1.5 A pull in for 2 seconds, 500 mA continuous hold.

– 912.05.068:

• High security MS maglock.

• Single door, single swing.

• Stainless steel with black end caps.

• Lock size (h x w x d): 48 x 152 x 70 mm.

• Locking plate size (h x w x d): 48 x 98 x 16 mm.

• Door gap (maximum): 3 mm.

• Holding force: 1800 mm.

• Current consumption: 12 V AC, 130 mA; 24 V AC, 250 mA; 12 V DC, 100 mA; 24 V DC, 200 mA.

– 912.05.081/ 912.05.082:

• Two locks mounted one at each end of a 2 m housing.

• For single swing doors.

• Aluminium body.

• Lock size (h x w x d): 44 x 2000 x 31.5 mm.

• Locking plate size (h x w x d): 40 x 178 x 12 mm.

• Holding force (maximum): 300 kg.

• Current consumption: 12 V, 250 mA; 24 V, 500 mA.
