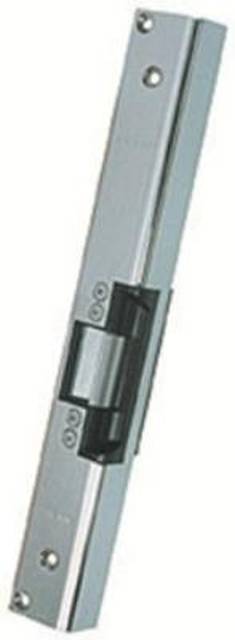

Electric Strikes 7181
Description

The Adams Rite 7100 Series is for remote use access control of any door equipped with Adams Rite 4700 series (or similar) deadlatch. The design of the steel wraparound faceplate helps provide additional protection to the timber door frame in the area of the electric strike.

Benefits:

  • Suitable for use on timber doors.
  • Angled fixing points to increase resistance against levering attack.
  • Facility to change duty from fail-safe to fail-secure and vice-versa.
  • Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself.
  • The sub cover is flush with the outer face of the steel faceplate and is therefore ideal in situations where a ‘T-Bar’ protection strip is fitted.
  • Non-handed.
  • 907 kg holding force.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Electric-Strikes/

General information

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Uniclass 2015

Pr_75_30_27_26 Electric strikes and faceplatesPrimary
Specification data - Electric strikes and faceplates

Product Reference

7181

Voltage

12 V

24 V

Current and duty

AC intermittent

Fail secure only.

DC continuous

DC intermittent

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Monitoring

Not required

Single, latch only

Double, latch and solenoid

Sub cover extension

Not required

91-0171-01

Door centreline to jamb edge: 38.1 mm.

91-0171-02

Door centreline to jamb edge: 41.4 mm.

91-0171-03

Door centreline to jamb edge: 44.5 mm.

91-0171-04

Door centreline to jamb edge: 47.8 mm.

91-0171-05

Door centreline to jamb edge: 50.8 mm.

91-0171-06

Door centreline to jamb edge: 54.1 mm.

91-0171-07

Door centreline to jamb edge: 57.2 mm.

91-0171-08

Door centreline to jamb edge: 60.5 mm.

91-0171-09

Door centreline to jamb edge: 63.5 mm.

91-0171-10

Door centreline to jamb edge: 66.8 mm.

91-0171-11

Door centreline to jamb edge: 69.9 mm.

91-0171-12

Door centreline to jamb edge: 73.2 mm.

91-0171-13

Door centreline to jamb edge: 76.2 mm.

Standard product features

General:

Case: Zinc aluminium alloy.

Mechanism: Stainless steel internal blocking mechanism.

Faceplate: Steel armoured forend/faceplate.

Face plate finish:

646 Satin Nickel.

Standard:

ANSI/BHMA 156.5 grade 1. UL listed for burglary resistance.
