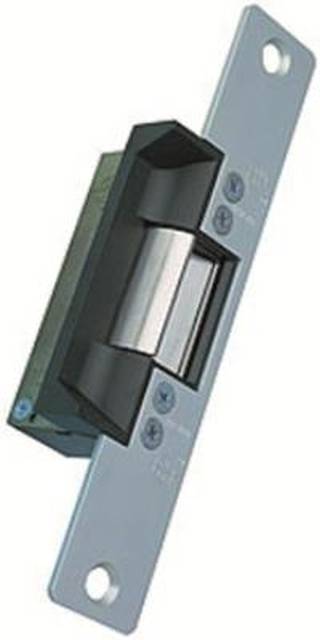

Electric Strikes 7130

Name: Electric Strikes 7130
Brand: ck3qNqr5euFacoStUuxv99
SKU: 2Tb8aCqExGnav2frMNAJUY

ASSA ABLOY Opening Solutions UK & Ireland

Electric strikes for MS® 1850 replacement - Aluminium doors.

Jump to:

+44 (0)1902 364120 www.assaabloy.co.uk

Description

The Adams Rite 7100 Series is for remote use access control of any door equipped with Adams Rite 4700 series (or similar) deadlatch. The 7130 series have a large faceplate to cover the strike opening when converting from an MS® pivoted - bolt deadlock to a deadlatch.

Benefits:

Suitable for use on aluminium doors.

Jaw Strength 907 kg.

Facility to change duty from fail-safe to fail secure and vice versa.

Non-handed.

Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself.

Designed for mounting in the frame of a single action single leaf doors.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Electric-Strikes/

General information

Features	Monitored/ Fail safe Monitored/ Fail secure Standard/ Fail safe Standard/ Fail secure
Uniclass 2015	Pr_75_30_27_26 Electric strikes and faceplatesPrimary

Specification data - Electric strikes and faceplates

Product Reference	7130 Flat 7131 Radius
Voltage	12 V 24 V
Current and duty	AC intermittent Fail secure only. DC continuous DC intermittent
Features	Monitored/ Fail safe Monitored/ Fail secure Standard/ Fail safe Standard/ Fail secure
Monitoring	Not required Single, latch only Double, latch and solenoid
Sub cover extension	Not required 91-0171-01 Door centreline to jamb edge: 38.1 mm. 91-0171-02 Door centreline to jamb edge: 41.4 mm. 91-0171-03 Door centreline to jamb edge: 44.5 mm. 91-0171-04 Door centreline to jamb edge: 47.8 mm. 91-0171-05 Door centreline to jamb edge: 50.8 mm. 91-0171-06 Door centreline to jamb edge: 54.1 mm. 91-0171-07 Door centreline to jamb edge: 57.2 mm. 91-0171-08 Door centreline to jamb edge: 60.5 mm. 91-0171-09 Door centreline to jamb edge: 63.5 mm. 91-0171-10 Door centreline to jamb edge: 66.8 mm. 91-0171-11 Door centreline to jamb edge: 69.9 mm. 91-0171-12 Door centreline to jamb edge: 73.2 mm. 91-0171-13 Door centreline to jamb edge: 76.2 mm.

Standard product features	General: Case: Zinc aluminium alloy. Mechanism: Stainless steel internal blocking mechanism. Faceplate: Aluminium. Face plate finish: 628 Satin aluminium. Standard: ANSI/BHMA 156.5 grade 1. UL listed for burglary resistance.
