Description

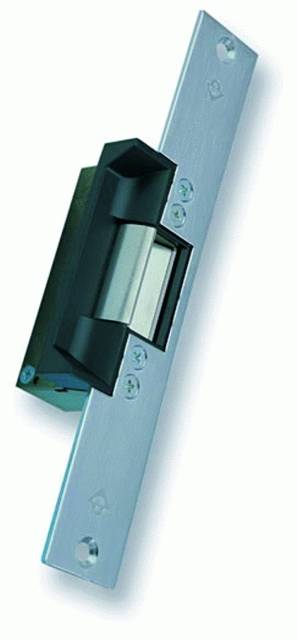

The Adams Rite 7100 Series is for remote use access control of any door equipped with Adams Rite 4700 series (or similar) deadlatch.

Benefits:

  • Suitable for use on timber and steel doors.
  • Non-handed.
  • Facility to change duty from fail-safe to fail secure and vice versa.
  • The 7113 features a narrower faceplate than the 7110 series and is particularly suited to 44 mm thick timber doors.
  • 907 kg holding force.
  • Can be mounted in the frame or the inactive leaf of a pair of doors and a modified sub cover is available as an option for applications using a T - bar on the door.
  • Electrical actuation unlocks the strike jaw, releasing the latchbolt so the door can be opened without operating the latch itself.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Electric-locking/Electric-Strikes/

General information

Specification data - Electric strikes and faceplates

Product Reference

7113

Voltage

12 V

24 V

Current and duty

AC intermittent

Fail secure only.

DC continuous

DC intermittent

Features

Monitored/ Fail safe

Monitored/ Fail secure

Standard/ Fail safe

Standard/ Fail secure

Face plate finish

652 Satin chrome

Other finishes may be available upon request.

Monitoring

Not required

Single, latch only

Double, latch and solenoid

Sub cover extension

Not required

91-0171-01

Door centreline to jamb edge: 38.1 mm.

91-0171-02

Door centreline to jamb edge: 41.4 mm.

91-0171-03

Door centreline to jamb edge: 44.5 mm.

91-0171-04

Door centreline to jamb edge: 47.8 mm.

91-0171-05

Door centreline to jamb edge: 50.8 mm.

91-0171-06

Door centreline to jamb edge: 54.1 mm.

91-0171-07

Door centreline to jamb edge: 57.2 mm.

91-0171-08

Door centreline to jamb edge: 60.5 mm.

91-0171-09

Door centreline to jamb edge: 63.5 mm.

91-0171-10

Door centreline to jamb edge: 66.8 mm.

91-0171-11

Door centreline to jamb edge: 69.9 mm.

91-0171-12

Door centreline to jamb edge: 73.2 mm.

91-0171-13

Door centreline to jamb edge: 76.2 mm.

Standard product features

General:

  • Case: Zinc aluminium alloy.
  • Mechanism: Stainless steel internal blocking mechanism.
  • Faceplate: Steel.

Standard:

ANSI/BHMA 156.5 grade 1. UL listed for burglary resistance.
