Elasto-Kote - Liquid Waterproofing Roof System
Verified by manufacturer 2 months ago

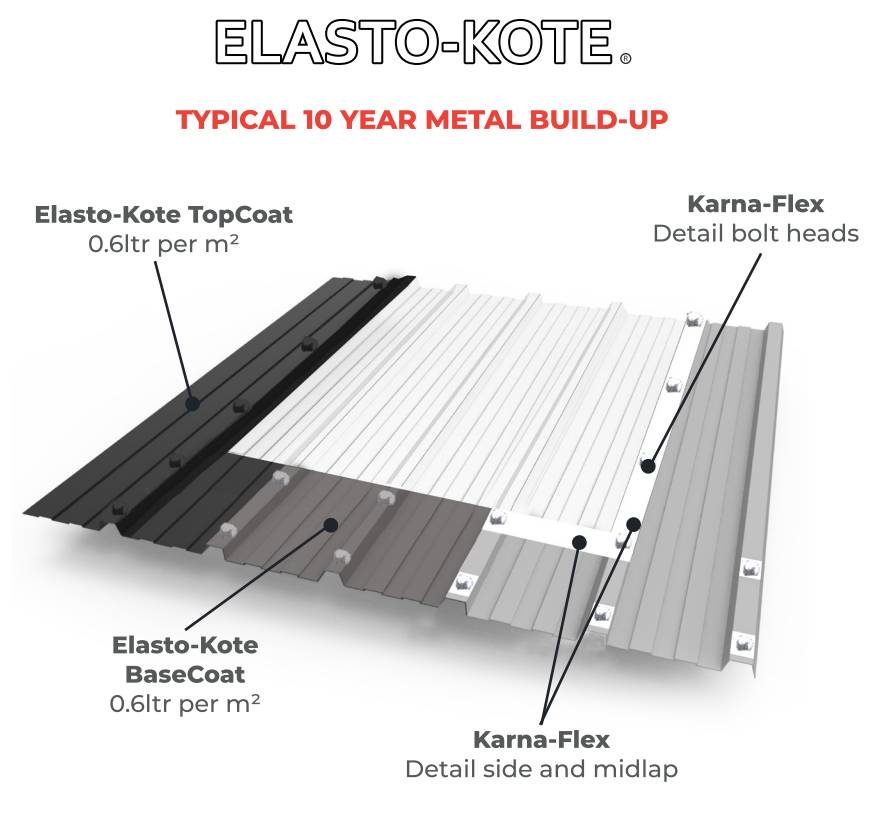

Profiled metal roof build-up (typical)
Profiled metal roof build-up (typical)
FM Approved
Certificate type
Cold-applied elastomeric (SEBS) liquid roof waterproofing system.
Application
Suitable for waterproofing flat and pitched commercial roofs.
Suitable for application on to: metal, coated metal, EPDM, single ply and fibre cement surfaces. Can be applied with an airless sprayer making it suitable for rapid application to corrugated surfaces.
Description
Cold-applied, elastomeric (SEBS) liquid roof waterproofing system.
Features and benefits:
- Single component.
- Sprayable.
- Self-priming.
- 650% elongation.
- Up to 85% solar reflective.
- FM approved.
- Built-in rust inhibitor.
- Resistant to ponding.
- Can be applied above 5°C.
- Typically shower-proof in 30 minutes, dries within four hours.
- All components available in various sizes.
- Guarantees up to ten years as standard. For extended guarantees, see Elasto-Kote® Pro (specified separately).
General information
Color | Grey Guidance for specification option: Light or Portland grey. White |
Finish | Smooth Reflective Guidance for specification option: Up to 85%. |
Shape | Formless |
Warranty description | Ten year Guidance for specification option: Maximum; consult manufacturer for details. |
Uniclass | |
CAWS | J31/47 Waterproof coating J31/353 Waterproof coating |
Specification data - Cold-applied polymer-modified bitumen waterproof coatings
Modifier | Styrene-ethylene-butylene-styrene (SEBS). |
Colour | Light grey.Portland grey.White.Manufacturer guidanceTopcoat only; consult manufacturer's literature for other components. |
Detailing/ Vertical work | Karna-Flex (white), with Karna-Flex tape as required. Karna-Flex (grey), with Karna-Flex tape as required. Karna-Flex (black), with Karna-Flex tape as required. Manufacturer guidanceApplied to side laps, mid laps and bolt heads as required. |
Base coating | Elasto-Kote. Guidance for specification option: To be applied at a coverage rate of 0.6 kg/m². |
Top coat | Elasto-Kote. Guidance for specification option: To be applied at a coverage rate of 0.6 kg/m². |
Curing time | Four hours. |
Application temperature | +5°C to 35°C. |
Elongation | 650%. |
SolarReflectance | Up to 85%. |
Fire performance | Fire test: FM Approved. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United States |
Recyclability | Manufacturer guidanceObserve all federal, state and local regulations when disposing of this substance. |
Third party certifications
FM Approved
FM Approvals
Literature
MSDS - Elasto-Kote
Brochure - Elasto-Kote Range - Elastomeric Liquid System
