Verified by manufacturer 17 days ago
Neaco’s Elan system is a stylish and minimalist alternative to traditional balustrades with a unique shoe to encapsulate the glass. Manufacture to drawings to ensure the highest quality product.
Elan powder-coated aluminium balustrades can be utilised for internal and external applications. The system benefits from a powder coating which provides enhanced durability and allows Neaco to offer an industry-leading guarantee.
The properties of aluminium provide the most cost-effective solutions whilst optimising the benefits of the system. In comparison to steel and stainless steel, aluminium has a low core temperature making the material classified as warm to the touch.
Spectrum powder coating can be utilised for schools, offices, leisure centres, balconies and much more. The system can be adapted to almost every application and can even provide a bespoke solution for your scheme.

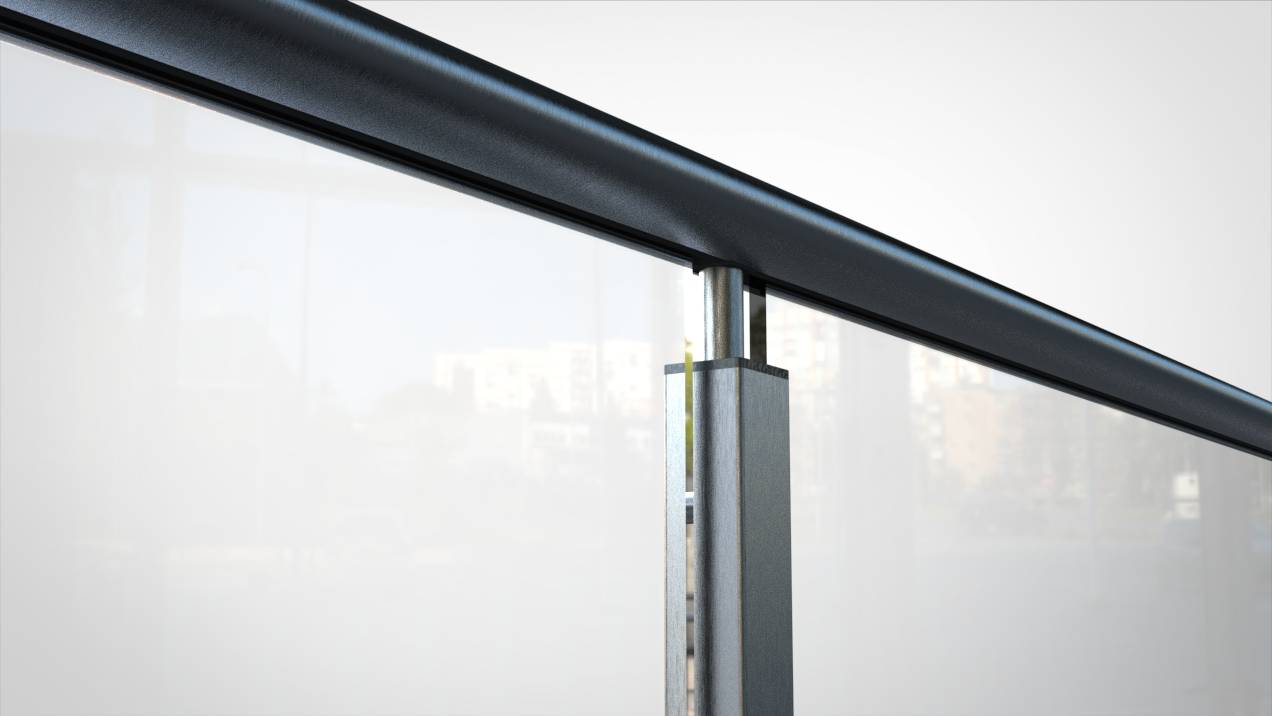

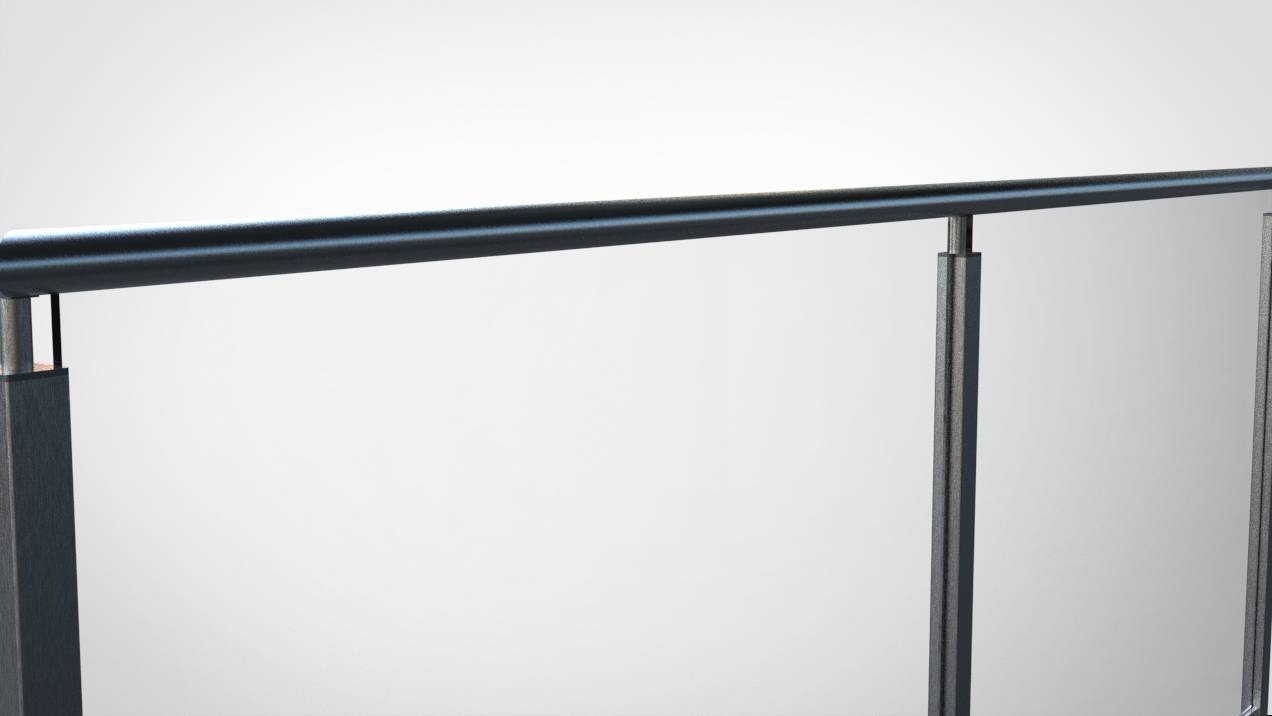

The Elan balustrade system is unique as most balustrade designs secure glass infill panels in place by attaching them to the stanchions with a clip, but Elan’s glass panels are secured by a top rail above and a subtle floor channel below. The result is a sleek appearance, economical use of materials and an easy-to-install solution. Designed for non-raked installations, Elan is also available as a modular balcony system.
The aluminium, powder-coated balustrade is available in a wide range of RAL colours including metallic colours. Bespoke RAL colours can be achieved as Neaco have its own in-house powder coating plant. The powder coating is offered in both polyester and nylon.
The powder coating gives the balustrade a satin-smooth finish which is non-chip, permanent, hard-wearing and abrasion-resistant. Handrails have excellent insulation properties, are warm to the touch and are comfortable to handle.
The modular system offers the versatility to meet virtually any design requirement, no matter how complex. The balustrade is engineered to close tolerances, with quality-formed bends eliminating the need for unsightly mitred joints. Component parts are mechanically secured with concealed fixings, requiring no welding and ensuring rapid assembly on site (all fixings are supplied).
Features and benefits:
Color | Black Grey Blue Red Yellow Manufacturer guidanceBespoke RAL color upon request. Nylon or polyester powder coated Solid or metallic colour |
Finish | Anti-microbial Guidance for specification option: Avalible upon request. Powder-coated Guidance for specification option: Neaco Standard Colour Range Jet Black RAL 9005 Anthracite Grey RAL 7016 Agate Grey RAL 7038 Sapphire Blue RAL 5003 Ruby Red RAL 3003 Golden Yellow RAL 1004 White Aluminium RAL Metallic Tungsten RAL Metallic * Chromium RAL Metallic Light Oak ** Dark Oak ** *Only available in Nylon ** Only available in Polyester |
Material | Aluminium |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | 1100 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | L30/55 Proprietary balustrades L30/560 Proprietary balustrades |
Product range |
Newels | |
Material | Aluminium alloy 6063 T4/ T6. |
Infills | 10 mm Thick Toughened Safety Glass.Guidance for specification option:
|
Rails | |
Base rails | 50.8 mm diameter tube. |
Fixing to parent structure | Flat Base Fixed.Guidance for specification option: Two hole fixing - 152 mm(w), 100 mm(l) - two fixings at 114 centers. Grout fixed. |
Samples required | Manufacturer guidanceAvailable upon request. |
Execution | Fully installed system. Construction Survey. |
System completion | Manufacturer guidanceO&M manual, as-built drawings, maintenance instructions, data sheet and brochures available. |
Barrier loading | 0.36 kN/m. Guidance for specification option:
0.74 kN/m. Guidance for specification option:
1.5 kN/m. |
Connecting profiles | Stem connector. Manufacturer guidanceStem Connector Straight Connector |
Standards | System compliance to BS 6180, EN 1991, BS 8300, BS 5395. |
Finish | Jet black (RAL 9005). Anthracite grey (7016). Agate grey (RAL 7038). Sapphire blue (RAL 5003). Ruby red (RAL 3003). Manufacturer guidanceHandrail. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 77 % |
