EKU PORTA 100 GM

Hawa Sliding Solutions AG

Sliding door mechanism designed for one top-running all-glass door weighing up to 100 kg.door mechanism designed for one top-running all-glass door weighing up to 100 kg.

Jump to:
+41 44 787 17 17 www.hawa.com
Application

Suitable for sliding doors in locations such as:

  • All-glass doors.
  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

Description

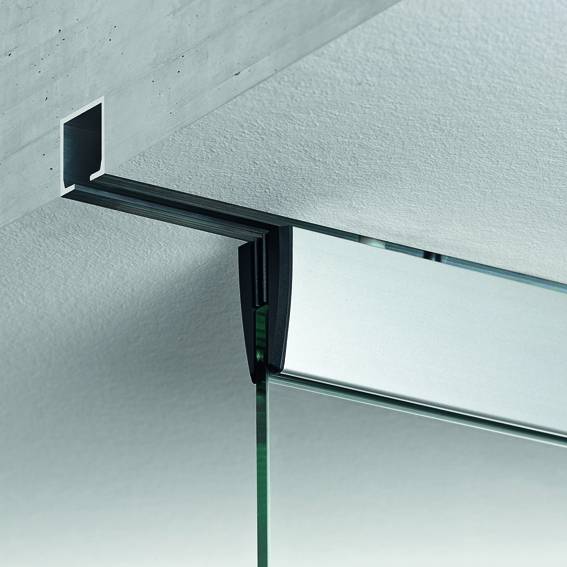

Sliding door mechanism designed for one top-running all-glass door weighing up to 100 kg. The glass is held at the top by two glass clamp shoes that are connected to the running gear. The running equipment moves inside a running track that is suitable for flush ceiling mounting. A suitable designer clip-on panel made from aluminium can be cut to size to suit the required installation width and installed without problems.

Features and benefits:

  • Glass mounted with clamping shoe technology.
  • For ceiling mounting.
  • Running gear concealed behind design fascia.
  • Continuous bottom guide adjustment for different glass thicknesses.

- Suitable for use with door panels:

  • Panel thickness: 8–12.7 mm.
  • Maximum panel width: 1600 mm.
  • Maximum panel height: 2700 mm.
  • Maximum panel weight: 100 kg.

Components:

System: Standard running track, installation flush with the ceiling, for one glass door. Clamping shoes with aluminium panel cover.

Applications:

Suitable for sliding doors in locations such as:

  • All-glass doors.
  • Private living areas.
  • Private and public offices.
  • Interior furnishings.

General information

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

EKU PORTA 100 GM

Installation/ Design

As drawing

Insert requirements, various possibilities available. Consult manufacturer for details.

Running track

1700 mm

2000 mm

2500 mm

3500 mm

6000 mm

Clip panel

Anodized aluminium, 2500 mm

Anodized aluminium, 6000 mm

Accessories/ Other requirements

See 'Options' below and insert requirements.

Standard product features

Running track:

Aluminium.

End cap set for panels:

Plastic anthracite.

Product Options

Accessories/ Other requirements:

Other accessories and spares are also available, consult the manufacturer for details.
