EKU Libra 20H Vertical Sliding Timber Door Fittings

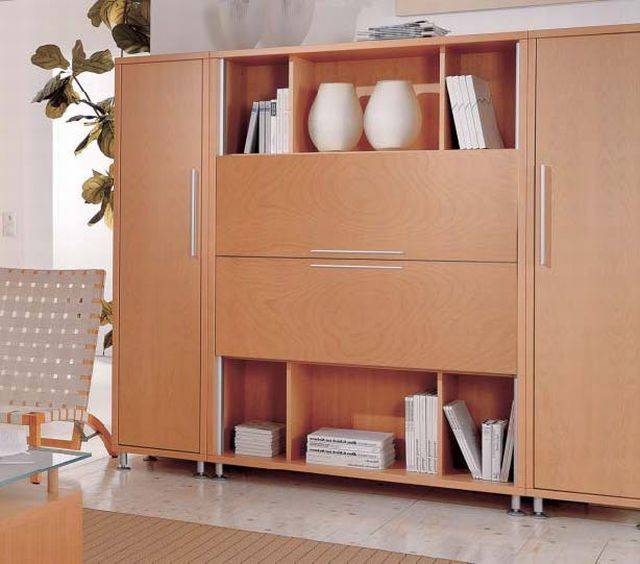

Fittings for vertical sliding timber cabinet doors.
Fitting sets of running gear and tracks for one or two vertically sliding timber doors, inset or overlay, with counterweight system. Synchronized opening of two doors is possible by specifying Libra 20H Synchro fitting set.
Features:
- Height (maximum): 1000 mm.
- Thickness (minimum): 16 mm.
- Weight (maximum): 20 kg.
- Width (maximum): 1600 mm.
| Features | Height (maximum): 1000 mm Thickness (minimum): 16 mm Weight (maximum): 20 kg Width (maximum): 1600 mm |
| Uniclass 2015 | |
| CAWS | P21/10 Quantities and locations P21/350 Door track and running gear |
| Product Reference | EKU Libra 20H Vertical Sliding Timber Door Fittings |
| Fittings | 403.20.001 Fitting setOne door. 403.20.002 Fitting setTwo doors. 403.20.010 Fitting setTwo doors, Libra 20H Synchro. 403.21.925 Front track2.5 m anodized aluminium. 403.22.925 Cover profile2.5 m anodized aluminium. 405.30.025 Rear track2.5 m bright aluminium. 405.30.035 Rear track3.5 m bright aluminium. |
| Accessories | None403.23.900 Additional guide rollerTwo doors none synchronized. |
| Product Options | Fitting sets: - None synchronized:
- Synchronized:
|
