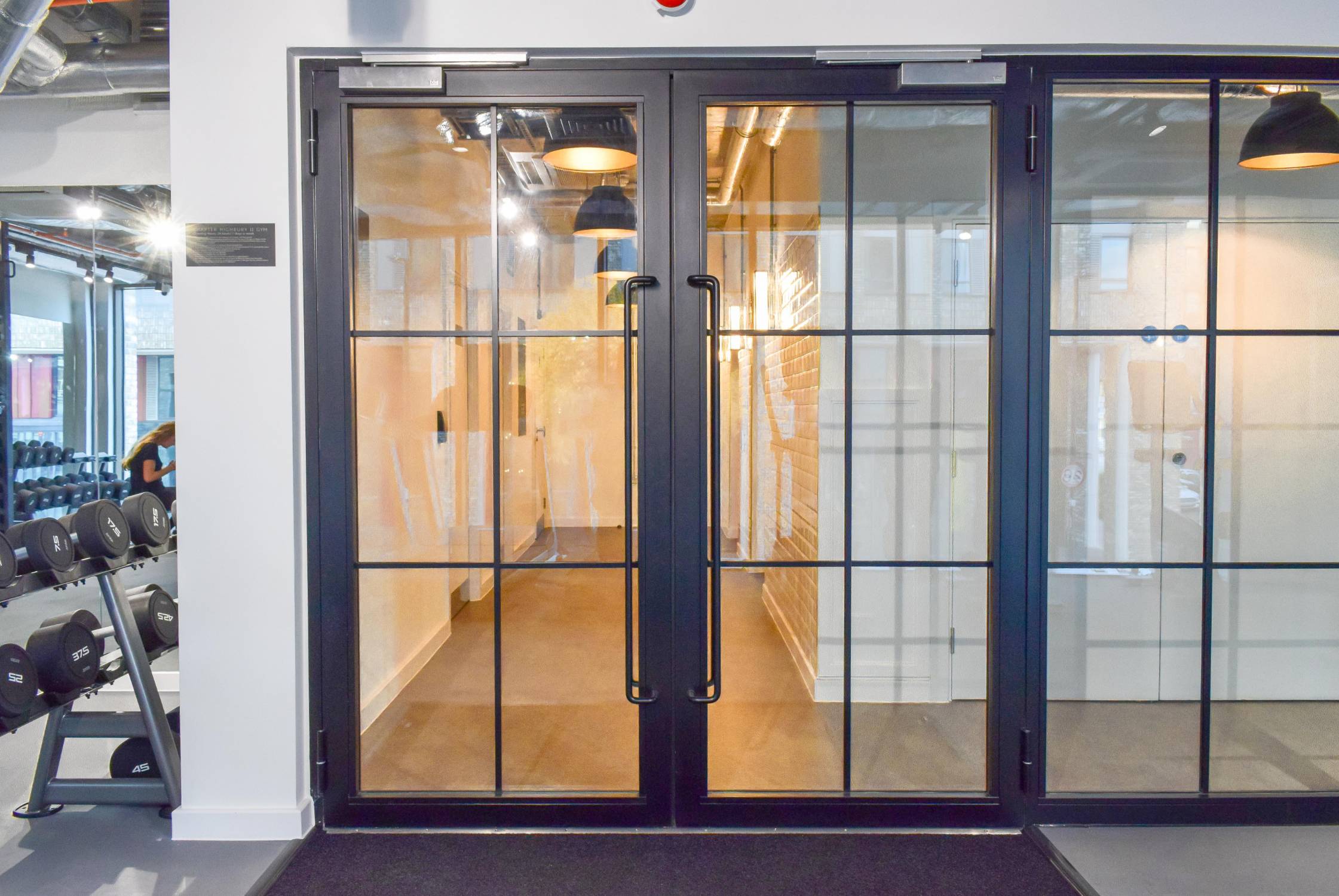

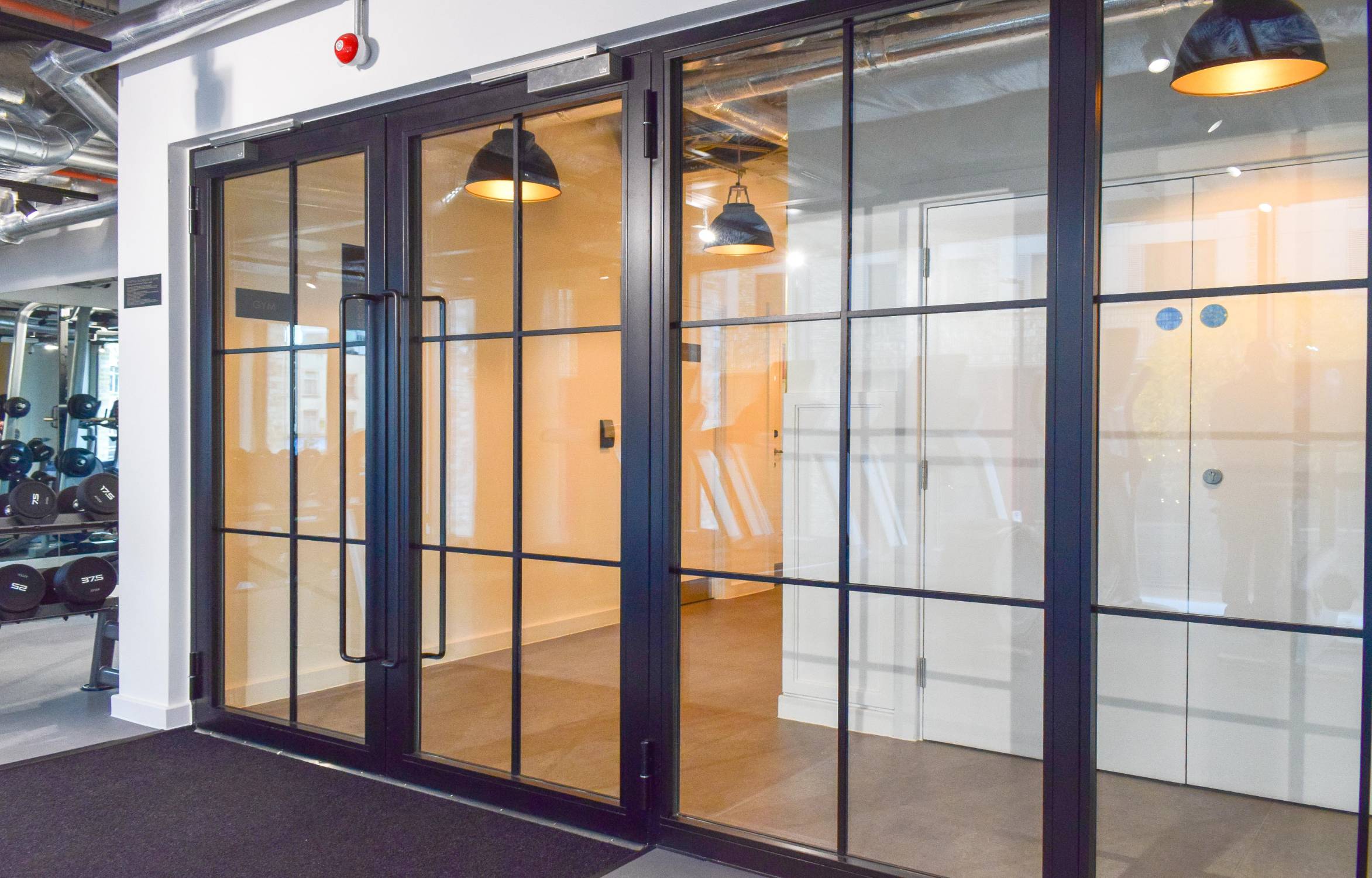

EI60/60 Technishield 65 Non-Rebated Fire-Rated Double Door
Verified by manufacturer 2 days ago
Fire-rated glass doorset, non-rebated offering 60 minutes insulation and 60 minutes integrity
Application
For use in conjunction with Technishield 65 partition system.
Description
A framed, double-leaf, non-rebated, fire-rated glass doorset on hinges.
Features and benefits:
- Offering 60 minutes' integrity and insulation.
- Part M-compliant clear opening.
General information
Color | Silver White Other |
Finish | Powder-coated |
Material | Glass |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Doorset systems
Classification data | |
System performance | Fire performance. |
Doorset | |
Type | Fire rated glass doorset. |
Seals or inserts | |
Door | Manufacturer's standard. Guidance for specification option: Dropseal: Type RO drop seals. Door seals: Fire and smoke protection double seal. |
Over panels | Not required. Over panel. Over panel and side panel. Guidance for specification option: Insert requirements. |
Side panels | Not required. Side panel both sides. Side panel left side. Side panel right side. Over panel and side panel. Guidance for specification option: Insert requirements. |
Hardware | Manufacturer's standard. Guidance for specification option: Hinges: Two face-fitted, weld-on hinges per leaf. Handles: Forster stainless steel cranked pull handles. Lock: Not applicable. Euro cylinder: Not applicable. Door closer: TS-93 2-4. Other. Guidance for specification option: Insert requirements; contact manufacturer for information. |
Samples required | Not required. Required. |
Finish/ Colour | Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). |
Manifestation | Guidance for specification option: Insert requirements. |
Fire rating | E60 – 60 minutes' integrity and insulation (60/60). |
Size | Guidance for specification option:
|
Configuration | As shedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Glass |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 179 Value guidance: A1-A3See Environmental Product Declaration literature for LCA data. | |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Literature type
Optima Technishield Product Summary
000005 (3) - Warranty - Company Policy
Technishield 65 Fire Rated 60 Door EPD
Technishield Designers Guide
