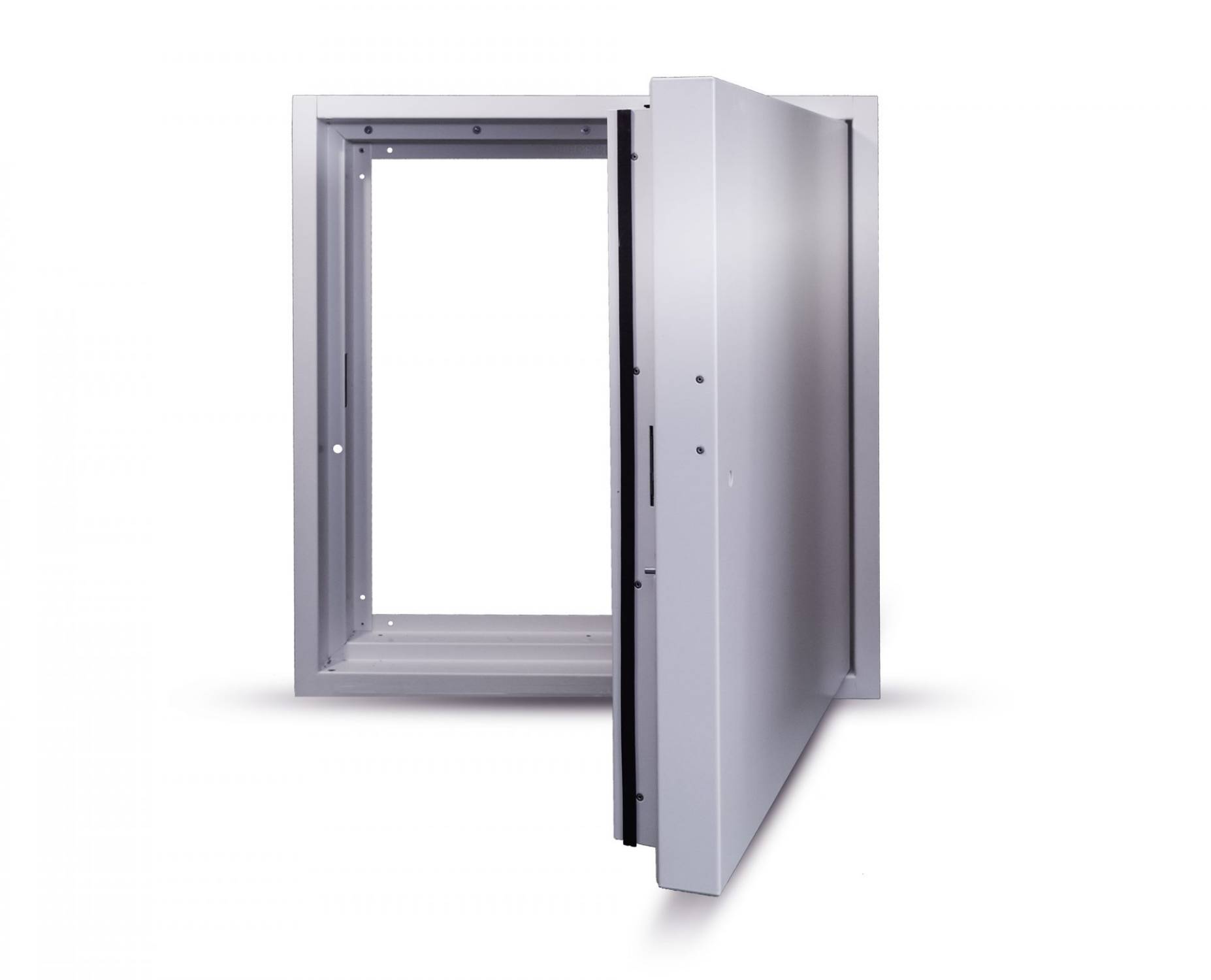

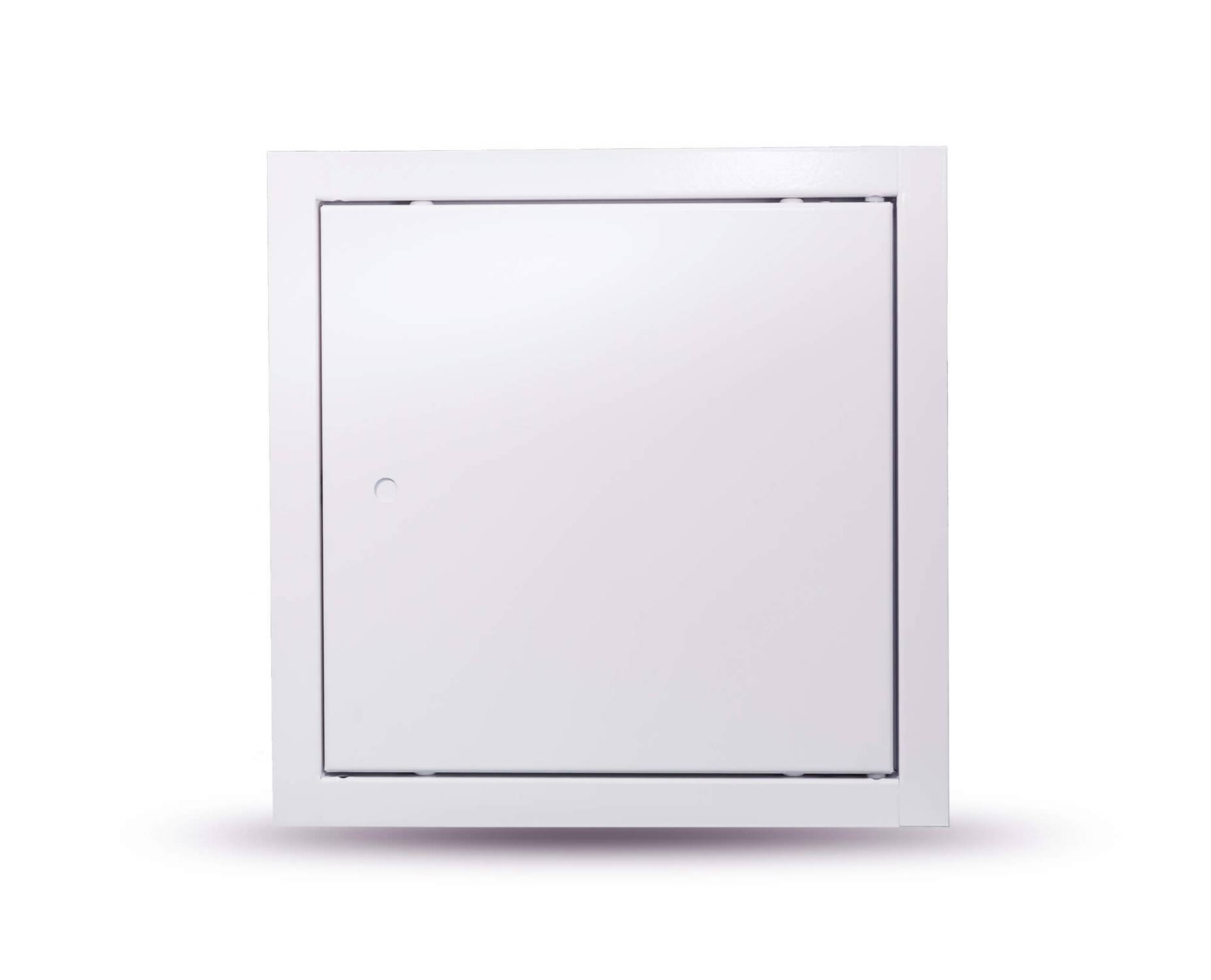

EI60 Access Panel
Verified by manufacturer 3 months ago
Fire rated access panel.
Application
Suitable for every day use, for openings in walls for access to building engineering services.
Description
The EI60 Fire Rated Access Panel provides fire-rated protection, with two hour integrity and ninety minute insulation for openings in walls for access to building engineering services. EI60 doors are factory fitted with removable pivot hinges and interlocking door to frame steel pins.
Features and benefits:
- Two hour fire integrity.
- 90 minutes fire insulation.
- Beaded and picture frame options.
- Steel faced door.
- Slik 'invisible keyhole' locking hides the keyhole allowing the door to blend into the surrounding surface.
- Distinctive pivot hinge.
- High quality and robust.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Rectangle Square |
Length | Bespoke 300 mm 450 mm 600 mm 550 mm |
Width | Bespoke 300 mm 450 mm 600 mm 550 mm |
Height | 90 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | EI 60 to BS EN 13501-2. |
Reaction to fire classification | To BS EN 13501-1. |
Position | Wall-mounted. |
Size | 300 x 300 mm.450 x 450 mm.600 x 600 mm.600 x 300 mm.550 x 550 mm.900 x 600 mm.1200 x 600 mm. |
Frame | Beaded frame type (SBF).Picture frame (PF). |
Panel | |
Material | Zintec electrogalvanized mild steel. |
Integral finish | Polyester powder-coated, white RAL 9010, 20% gloss. |
Latch or lock type | Square drive operated lock.Guidance for specification option: Concealed by the 'Slik' invisible keyhole system. |
Operation | Removable pivot plate hinge system. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Literature
EI60 Access Panel
EI60 Access Panel Picture Frame Technical Drawing
