Ei3024 Multi-Sensor Fire Alarm - Multi-Sensor Fire Alarm
Verified by manufacturer 3 months ago
BSI Kitemark
Certificate type
Multi-Sensor fire alarm. 230 V with ten year rechargeable lithium back-up. AudioLINK+. SmartLINK upgradeable.
Application
Suitable for hallway, landing, living room, dining room, bedroom and loft applications.
Description
The Ei3024 is a mains powered multi-sensor fire alarm with ten year rechargeable lithium back-up. It contains built-in AudioLINK+ data extraction technology and is upgradeable to SmartLINK wireless interconnection using a Ei3000MRF module. Mains powered with easi-fit base for quick and simple installation.
Features and benefits:
- Contains both an optical and heat sensor for a total fire response.
- Mains powered with rechargeable lithium back-up.
- Built in AudioLINK+ data extraction technology.
- Easi-fit base for quick and simple installation.
- Kitemarked to BS EN14604:2005 & BS5446-2:2003.
- Part of the 3000 Series
- Kitemark reference: 522831/83678.
- EAN number: 5099383006537
Product datasheet - https://aicodatasheets.epim.online/Datasheet?part=Ei3024&template=AicoDatasheet
General information
Color | White |
Finish | Other |
Material | Polystyrene Guidance for specification option: HIP UL94 V0 flame retardant. |
Shape | Circle |
Length | 150 mm |
Width | 150 mm |
Height | 73 mm |
Warranty description | Five year |
Uniclass | |
CAWS | W90/120 Fire detection and alarm system W90/335 Heat alarms W90/335 Heat alarms |
Specification data - Heat alarms
Standard | To BS EN 14604:2005. |
Third-party certification | BSI Kitemark-approved. |
Power supply | |
Primary | 230 V a.c. |
Battery backup | Rechargeable lithium back-up. |
Manufacturer's warranty (minimum) | Five years. |
Enclosure material | High impact polystyrene (HIP) UL94 V0 flame retardant. |
Packaged weight | 0.42 kg. |
Weight | 0.344 kg. Guidance for specification option: Plastic weight: 0.002 kg. Manufacturer guidanceProduct weight. |
Type | Lithium rechargeable. Guidance for specification option: Battery weight: 0.009 kg. Manufacturer guidanceBattery type. |
Width | 154 mm. |
Depth | 73 mm. |
Height | 155 mm. |
Sensor | Optical and heat. Guidance for specification option: With dust compensation. Manufacturer guidanceSensor type. |
Power consumption | 0.25 W. |
Fixing | Screws included. |
TemperatureRange | -10 to 40 °C. |
RelativeHumidity | 15-95%. Manufacturer guidanceHumidity range. |
Indicator colour | Green - Power; Red - Alarm; Yellow - Fault. |
Sustainability data
Country of product manufacture | Ireland |
Recyclability | Follow WEEE regulations |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications

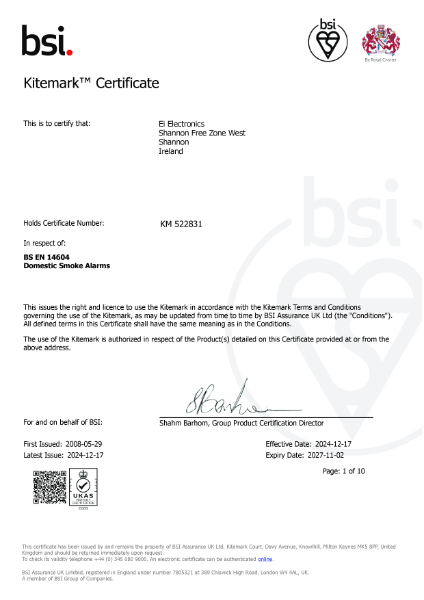

BSI Kitemark
BS EN 14604 - KM 522831
