Ei208 Carbon Monoxide (CO) Alarm - Carbon Monoxide (CO) Alarm

Verified by manufacturer 1 month ago

Aico Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

Carbon monoxide (CO) alarm. Lithium battery powered. AudioLINK+.

Jump to:
BOS
+44 (0)1691 664100 Website

Application

A standalone battery alarm for the detection of Carbon Monoxide (CO). Designed for domestic use

Description

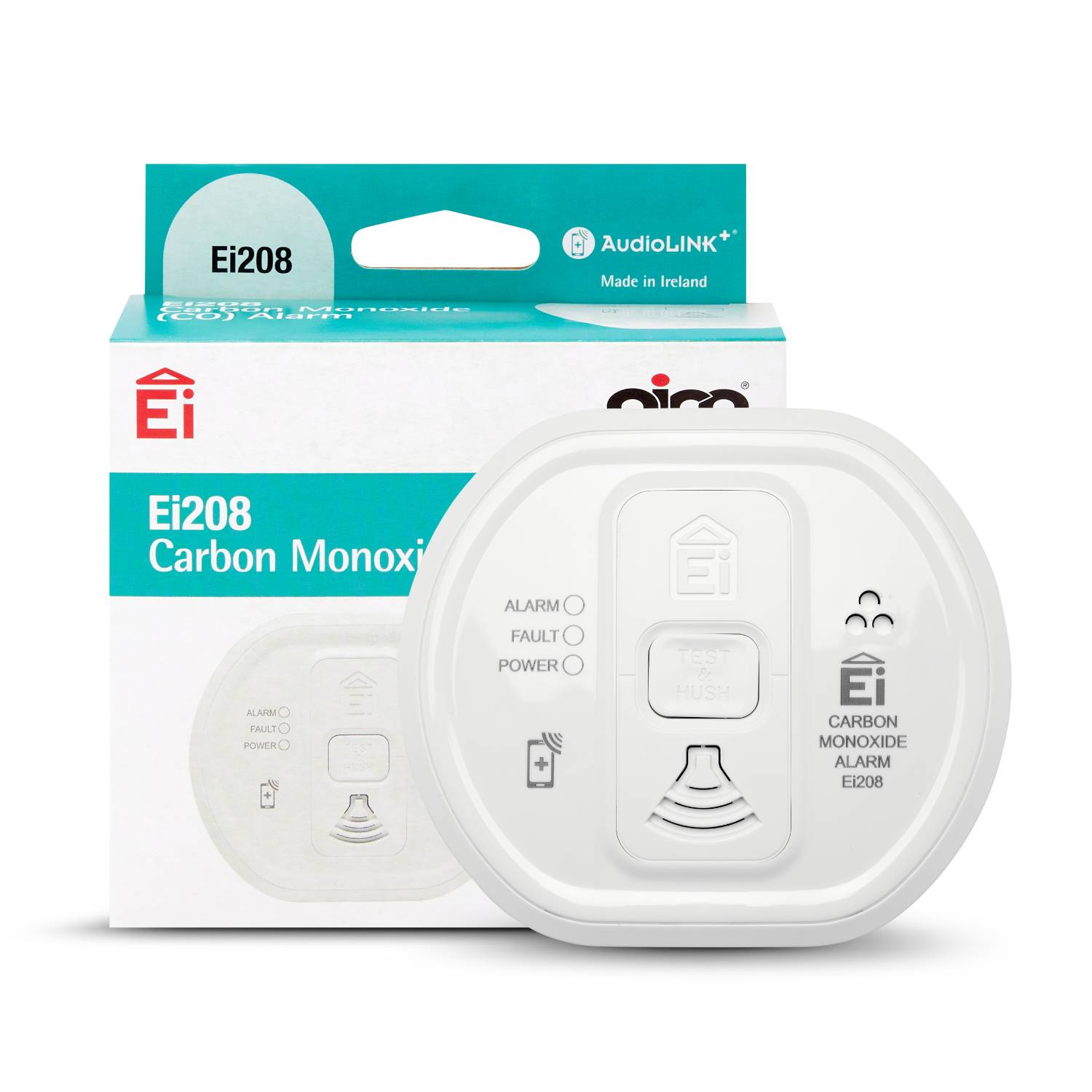

The Ei208 carbon monoxide alarm is a standalone battery unit, powered by ten year life sealed in lithium cell. It has AudioLINK+ built in – simply download the free AudioLINK app to your smartphone to be extract an ‘alarm status’ report from the alarm.


Features and benefits:

  • Proven electrochemical CO sensor.
  • Ten year lithium battery powered.
  • Built in AudioLINK+ data extraction technology.
  • Kitemarked to BS EN50291-1:2010 & BS EN50291-2:2010.
  • Five year guarantee.
  • Kitemark reference: 86596.
  • EAN number: 5099383004724


Product datasheet - https://aicodatasheets.epim.online/Datasheet?part=Ei208&template=AicoDatasheet

General information

Color

White

Finish

Other

Material

Polystyrene

Guidance for specification option:

HIP UL94 V0 flame retardant.

Shape

Other

Length

120 mm

Width

105 mm

Height

50 mm

Warranty description

Five year

Uniclass

Pr_75_50_76_12 Carbon monoxide detectorsPrimary

CAWS

W90/332 Combined smoke and carbon monoxide detectors

W90/332 Combined smoke and carbon monoxide detectors

W90/331 Carbon monoxide alarms

Specification data - Carbon monoxide detectors

Standard

To BS EN 50291-1:2010+A1:2012 and BS EN 59291-2:2010.

Detector type

CO.

Control features

Downloadable data including time in use, battery level, sensor status, peak CO level.

Manufacturer's warranty (minimum)

Five years.

Enclosure material

HIP UL94 V0 flame retardant.

Packaged weight

0.207 kg.

Weight

0.168 kg.

Manufacturer guidance

Product weight.

Type

Lithium primary.

Guidance for specification option:

Battery weight: 0.014 kg.

Manufacturer guidance

Battery type.

Width

120 mm.

Depth

50 mm.

Height

105 mm.

Fixing

Screws included.

TemperatureRange

-10 to 40 °C.

RelativeHumidity

15-90%.

Manufacturer guidance

Humidity range.

Indicator colour

Green - Power up; Red - Alarm; Amber - Fault event.

Sustainability data

Contains Red List materials

Yes

Country of material origin

Netherlands

Country of product manufacture

Ireland

Recyclability

Follow WEEE regulations

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

BSI Kitemark

BSI Kitemark

BS EN 50291-1 - KM 86596
