Description

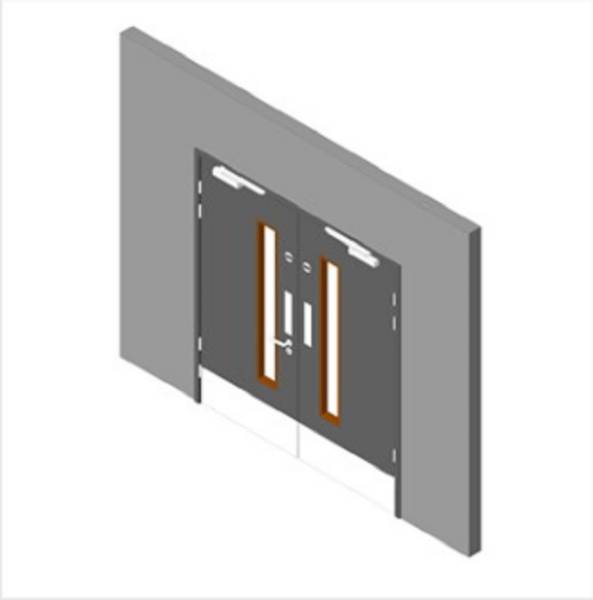

A severe duty double corridor doorset (pair), with one vision panel per door. Available with FSC/ PEFC certification - consult manufacturer for details.

Doors:

The severe duty range of flax core doors (framed) are available in 44 mm and 54 mm thickness.

Frames:

Bridgman supply two types of frame construction:

  • Solid rebated frame with integral stop - main section 94 x 44 mm (finished). Extensions can be fitted for wall depths up to 200 mm.
  • Planed square edge (PSE) section with loose door stops - 32 mm up to 125 mm solid (one piece) with a 32 x 13 mm stop. For wall depths in excess of 125 mm a tongued extension piece is fitted to suit.

Frames can be softwood or hardwood to suit project requirements.

Architrave:

Bridgman supply three profile types as standard, other profile types and sizes can be supplied to requirements. Consult manufacturer for details.

Bridgman are members of the Exova/ BM Trada Q Mark Scheme.

General information
Finish

Factory primed

Hygienilac

Lacquered

Laminated

Uniclass 2015
Wood doorsets (Pr_30_59_24_97)Primary
Specification data - Wood doorsets
Product Reference

Education Range: Corridor Doorset (pair) with 1 Vision Panel

Door -
Door thickness

44 mm

54 mm

Facings

Acrovyn

Laminated

Medium density fibreboard (MDF)

Plywood

Veneered

Finish

Factory primed

Hygienilac

Lacquered

Laminated

Frame and architrave -
Wood species

Hardwood

Softwood

Frame

PSE section with loose door stops

Solid rebated frame with integral stop

Architrave

Type 1

Type 2

Type 3

Hinges

Cookes Brothers butt

With 25 year guarantee.

Royd and Tucker Hi-Load H105 lift off hinges

With 25 year guarantee.

Union 603 butt hinges

With 25 year guarantee.

Accessories

Kick plates

Mouldings

Overpanels

Push plates

Optional items

Alarm wiring facilities

Linked to existing alarm systems.

Emergency exit facilities

Factory mortising for locks

Fire resisting doors

Standard product features

Lippings:

Hardwood.
