Application

Suitable for educational facilities.

Description

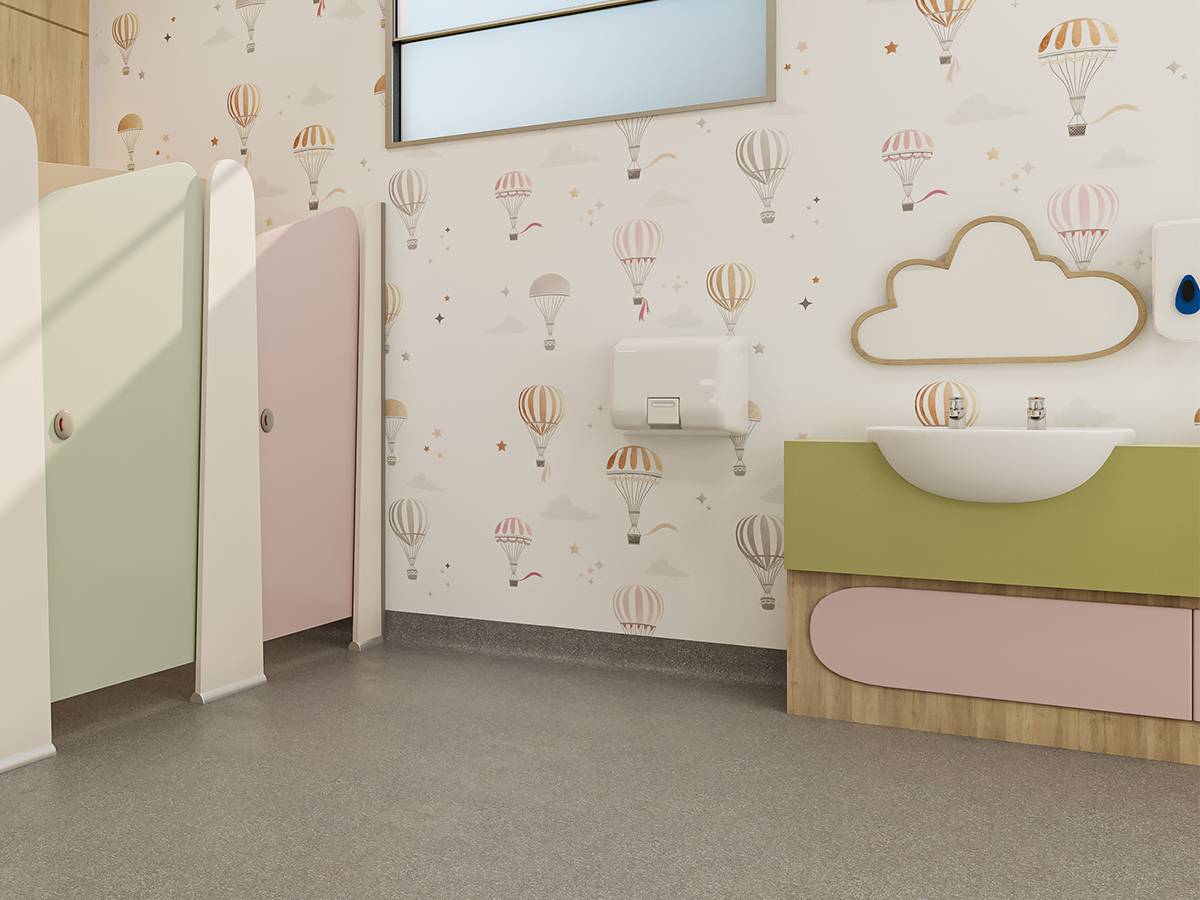

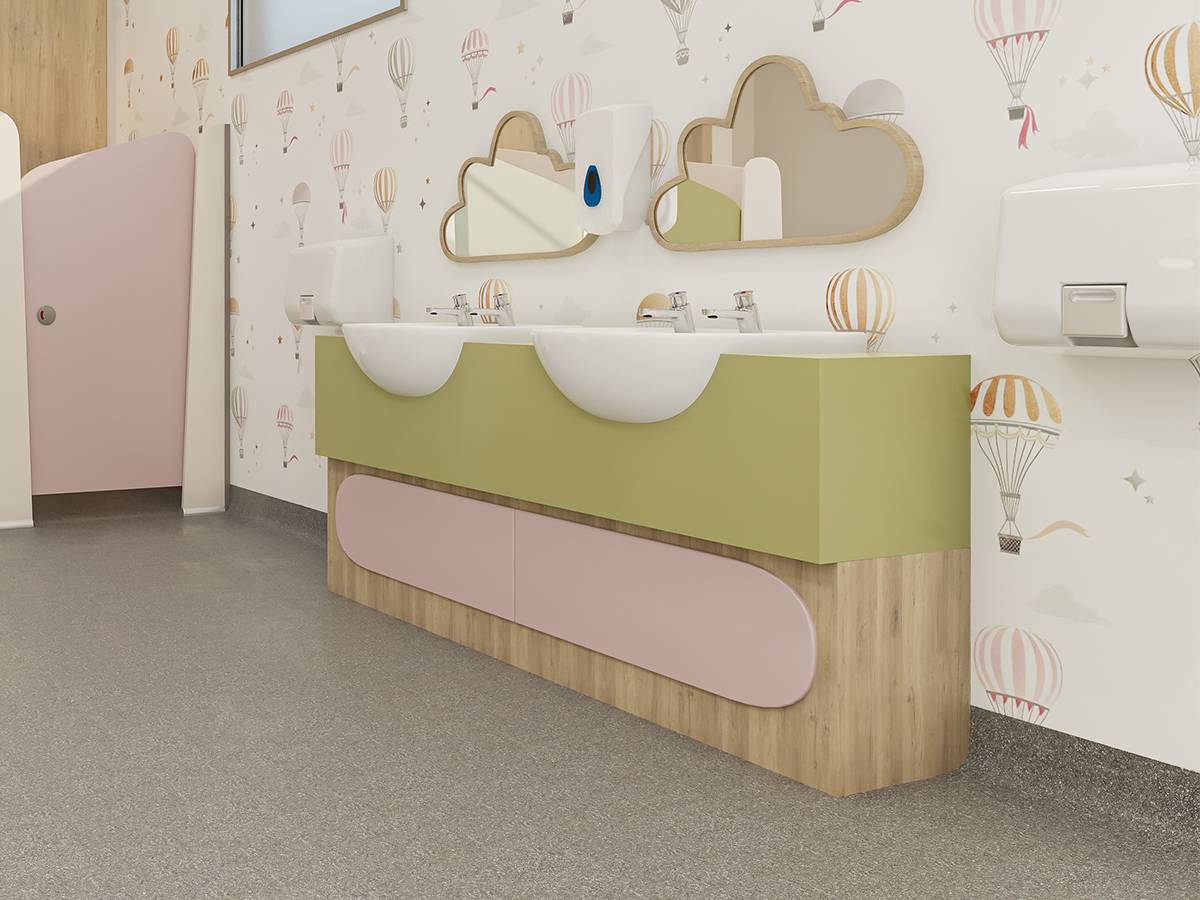

Pre-plumbed vanity units for educational facilities, with high pressure laminate worktops and a range of underpanel materials and finishes.


Features and benefits:

  • Removable access panels.

General information

Material

MFC

High pressure laminate (HPL)

Solid grade laminate (SGL)

Uniclass

Pr_40_20_76_94 Vanity unitsPrimary

CAWS

N10/145 Vanity and washroom furniture

Product range

Vanity Units
Cubicles / Education Cubicles

Specification data - Vanity units

Materials

-

Carcass

-

Frame and panels

18 mm nominal thick high performance melamine faced 660 kg/m³ grade moisture resistant chipboard (MFC), 18 x 18 x 75 softwood corner blocks.

High density solid grade laminate (SGL) with decorative face both sides, 18 x 18 x 75 softwood corner blocks.

Finish and colour

Decorative face both sides.

Manufacturer guidance

From manufacturer's standard colour range. Insert requirements.

Worktop

-

Material

660 kg/m³ grade moisture resistant chipboard faced each side with high pressure laminate (HPL).

Guidance for specification option:

660 kg/m³ grade.

Reinforced with moisture resistant chipboard divisions and ends, with 25 mm MDF backrails, all framed together with 18 x 18 x 75 mm softwood corner blocks, glued and screwed.

Finish and colour

High pressure laminate (HPL).

Guidance for specification option:

From manufacturer's standard colour range. Insert requirements.

Size (nominal)

350 mm deep worktop to receive semi-recessed washbasin, with postformed and radiused 300 mm apron (downstand).

Overall bed height

600 mm.

Support frame facings/ Flashgaps

70 mm flashgap.

Panel fixings

Concealed plastic clips fixed to edge of underframe cut outs and reverse of facing panels.

Joint treatment

70 mm (nominal) shadowgap with panels butt-jointed.

Edge treatment

Radiused and polished.

Sustainability data

Material

MFC

High pressure laminate (HPL)

Solid grade laminate (SGL)
