EdgeGuard Premium Green Roof Edging Trim
Verified by manufacturer 2 months ago
EG-A-P-50/2400.
EG-A-P-50/2400.

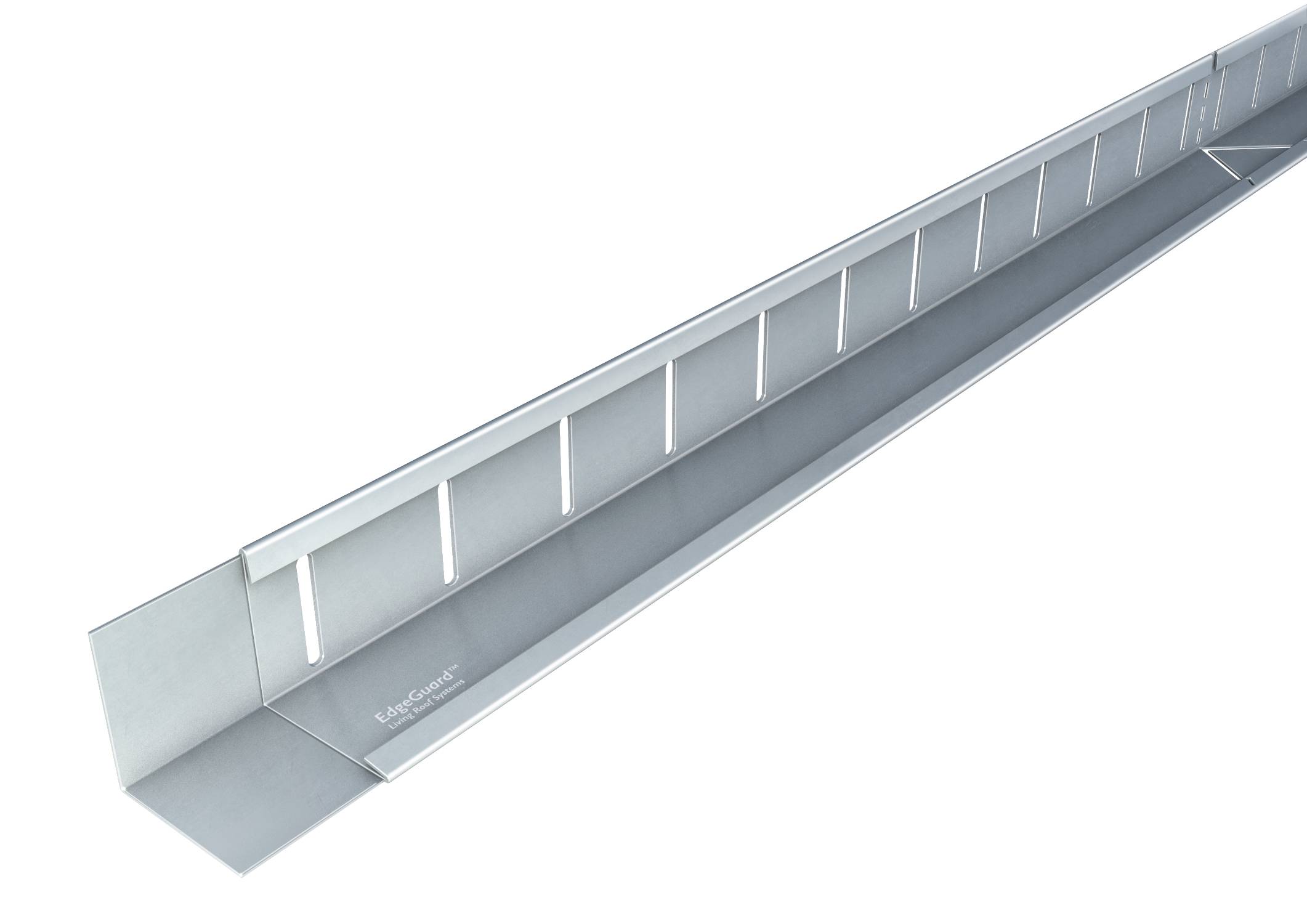

Aluminium edge restraint and substrate separator for living roofs
Application
- Designed for use in variety of green or ballasted roof applications.

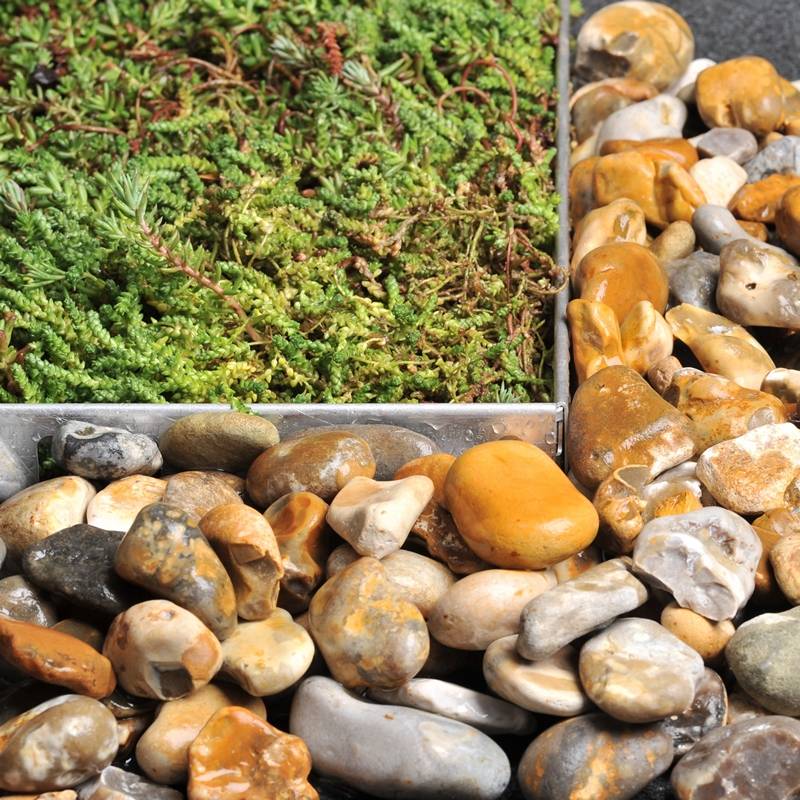

- Can be used either as an edge restraint, or where a solution for retaining or separating the roof garden materials is required.
Description
Living roof systems.
Features and benefits:
- Supplied in 2.4 m lengths - quick installation.
- Lightweight and robust.
- Can be cut to length.
- Available powder coated in any colour.
- Connectors not normally required.
- Manufactured from aluminium - long lasting and aesthetically pleasing.
- Manufactured in accordance with ISO 9001, ISO 14001 and ISO 45001 Quality and Management Systems.
General information
Color | Other Guidance for specification option: Powder coated to any RAL or BS colour, contact manufacturer for details. |
Finish | Mill Powder-coated |
Material | Aluminium |
Length | 2400 mm |
Height | 50 mm 75 mm 100 mm 120 mm 150 mm |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/12 Inverted roof covering J21/345 Perimeter trims J31/355 Perimeter trims J41/345 Perimeter trims J42/345 Perimeter trims J31/12 Inverted roof coating J41/10 Reinforced bitumen membrane warm deck roof covering Q37/130 Extensive green roof Q37/110 Intensive green roof Q37/120 Simple intensive green roof J31/5 Cold deck roof coating J31/10 Warm deck roof coating |
Product range |
Specification data - Aluminium edge retaining profiles
Height (nominal) | 50 mm. |
Width (nominal) | 100 mm.Manufacturer guidanceWidth of base. |
Finish | Powder coated. |
Colour | Guidance for specification option: Available powder coated in any colour, insert requirement. |
Length | 2400 mm. |
Material | Aluminium, pre-punched and profiled. |
Thickness | 1.2 mm. |
Literature
Living Roof Overview
Living Roof Retention System Checklist
Case studies
Pondwick's Close, St Albans
The Flowerbowl
