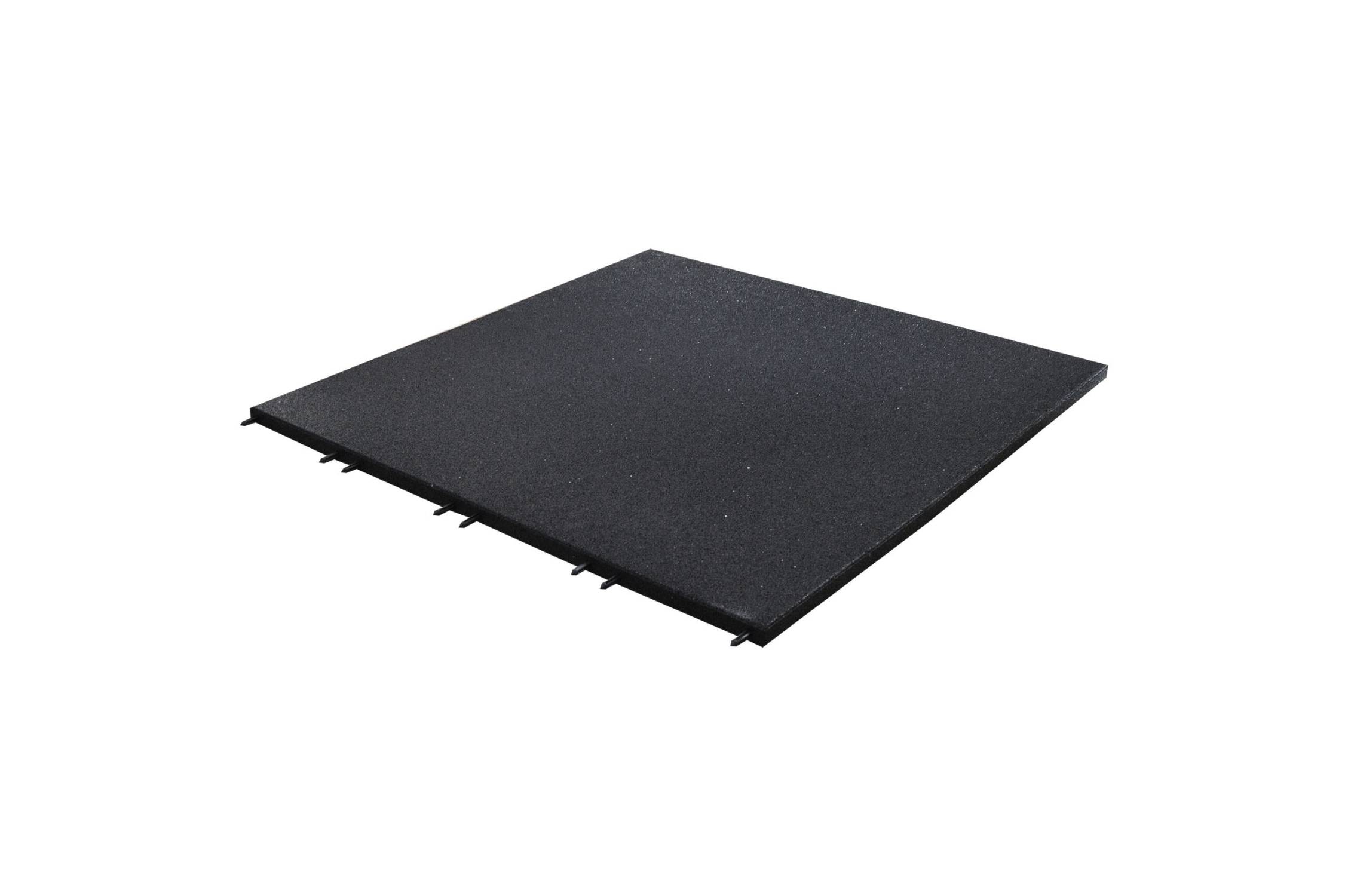

Ecotred 1000 - Rubber Promenade Walkway Tile

Verified by manufacturer 5 days ago

Rubbertech Ltd

Fully recycled and recyclable black rubber granulate commercial tile, designed specifically for use on roofing areas that require demarcation routes for maintenance access.

Jump to:
+44 (0)1824 702666 Website

Application

  • Membrane protection solution for balcony and terraces or used for walkway access as maintenance paths.
  • They can also be used around swimming pools, sports field perimeters and household gardens as an alternative to artificial turf.
  • Particularly suitable choice for specifiers and contractors for use in eco-friendly BREEAM projects.

Description

The Ecotred 1000 commercial tile is a fully recycled and recyclable rubber granulate walkway tile, designed specifically for use on roofing areas that require demarcation routes for maintenance access.

Rubbertech's own-brand promenade tile offers an affordable and purposeful solution for terrace and balcony protection solutions whilst providing an aesthetic finish to an outdoor space. As well as excellent slip resistance, it will also support lightweight plant of up to 4 tonne per square meter with a deflection of 30%. Due to the recycled rubber granulate compound used in the manufacturing process, it is the ideal choice for specifiers and contractors for use in eco-friendly BREEAM projects.

Features and benefits for our promenade tiles:

  • Fully recycled and recyclable.
  • Integrated drainage; drainage channels on the bottom side ensure the free flow of water.
  • The slabs are easily installed over any paved level subsurface and come with an inclusive pegging system.
  • Plastic connecting pins lock the tiles in place with minimal labour requirements, providing a cost effective access solution.
  • Compatible with most surfaces such as single ply membranes, bituminous systems and liquid coatings.
  • Made from natural black SBR granulate tyre materials, they have high acoustic values, good compressive strength and excellent vibration qualities.
  • Designed to have a porous surface with drainage channels on the underside which allows for free drainage on all walkway access areas, is UV resistant and performs well in extreme temperatures.
  • Available with markings to meet modern safety regulations.
  • B2 fire rated.
  • Two-year guarantee.

These tiles DO NOT hold a critical fall height certification.

General information

Color

Black

Finish

Anti-slip

Micro-textured

Material

Styrene-butadiene rubber (SBR)

Shape

Square

Length

1000 mm

Width

1000 mm

Height

30 mm

Warranty description

Two year

Uniclass

Pr_35_57_71_36 Granular rubber tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

SKU Code

Ecotred1000

Specification data - Granular rubber tiles

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

0.6 µ.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

Fully recycled.

Size

1000 x 1000 mm.

Thickness

30 mm.

Tile material

Polyurethane-bonded recycled tyre granulate.

Top profile

Smooth with open pores.

Bottom profile

Dimpled underside allowing free drainage.

Side profile

Pre-drilled plastic connector pins.

Colour

Black.

Tensile strength

147 N/cm².

Compression strength

16.7 N/cm² (before elastic deformation).
200 N/cm² (before elastic deformation).

Hardness (shore A)

28÷34.

Fire rating

B2 (DIN 4102 Part 1).

Guidance for specification option:

Equivalent to Euro Class E.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Styrene-butadiene rubber (SBR)

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

96 %

Expected Life

Ten year
