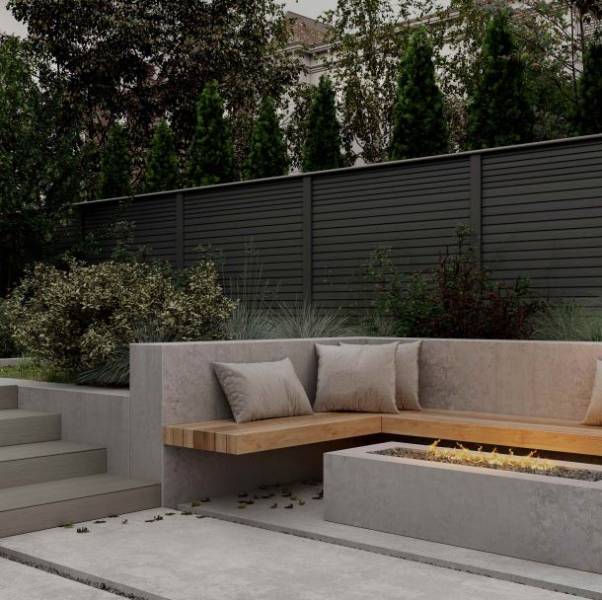

Ecoscape UK Clarity® Fencing
Verified by manufacturer 5 months ago
Composite fencing.
Application
The system can be fitted with composite posts or simply slotted between existing fence posts.
Description
Composite fencing is an eco-friendly alternative to wooden fencing which is made from reclaimed wood fibres and plastic composites. Composite fencing from Ecoscape comes in five different colours and does not have the associated problems that natural wood fencing does, such as; cracking, warping or expensive maintenance requirements. The characteristics of composite fencing compared to lumber allow Ecoscape to offer a 20 year warranty on all fencing panels.
System includes:
- Fence Post Steel Insert.
- Aluminium Bottom Rail.
- Fence Board.
- Fence End Post.
- Fence Top Board.
- Fence Full Top Cap / Fence Post Capping Board.
- Fence Inter Post.
Features and benefits:
- Manufactured from wood fibre and recycled plastic.
- With extensive testing including wind force test up to 63 mph.
- Low maintenance.
- Fast, easy installation.
- 20 year warranty.
- Acoustically tested -28 dB.
- FSC certified, and manufactured in accordance with ISO 9001, ISO 14001.
General information
Color | Grey Brown |
Finish | Matt |
Material | Composite |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 1240 mm 1540 mm 1840 mm Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Composite post and panel barrier systems
Posts | Existing.Fence end post 3000 x 125 x 125 mm.Fence inter post 1940 x 125 x 125 mm.Fence corner post 1940 x 125 x 125 mm.Fence corner post 3000 x 125 x 125 mm.Fence end post 1940 x 125 x 125 mm. |
Rails | Aluminium bottom rail - 1830 x 45 x 52 mm. |
Panels | Composite panel - 3 x 38 mm Batten.Composite panel - 2 x 63 mm Batten. |
System accessories | Composite post cap.Bottom holder/ Security clip.Fence post steel insert. |
Capping rail | Full Top Cap (Fence Post Capping Board) 4000 x 145 x 23 mm. Full Top Cap (Fence Post Capping Board) 2000 x 145 x 23 mm. |
Reaction to fire | To EN 13501-1, D-S3, d0. |
Colour/ Finish: | Charcoal. Graphite. Walnut. |
Sustainability data
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
