EconoBoil - Water Tap
Verified by manufacturer 3 months ago
305542
305542

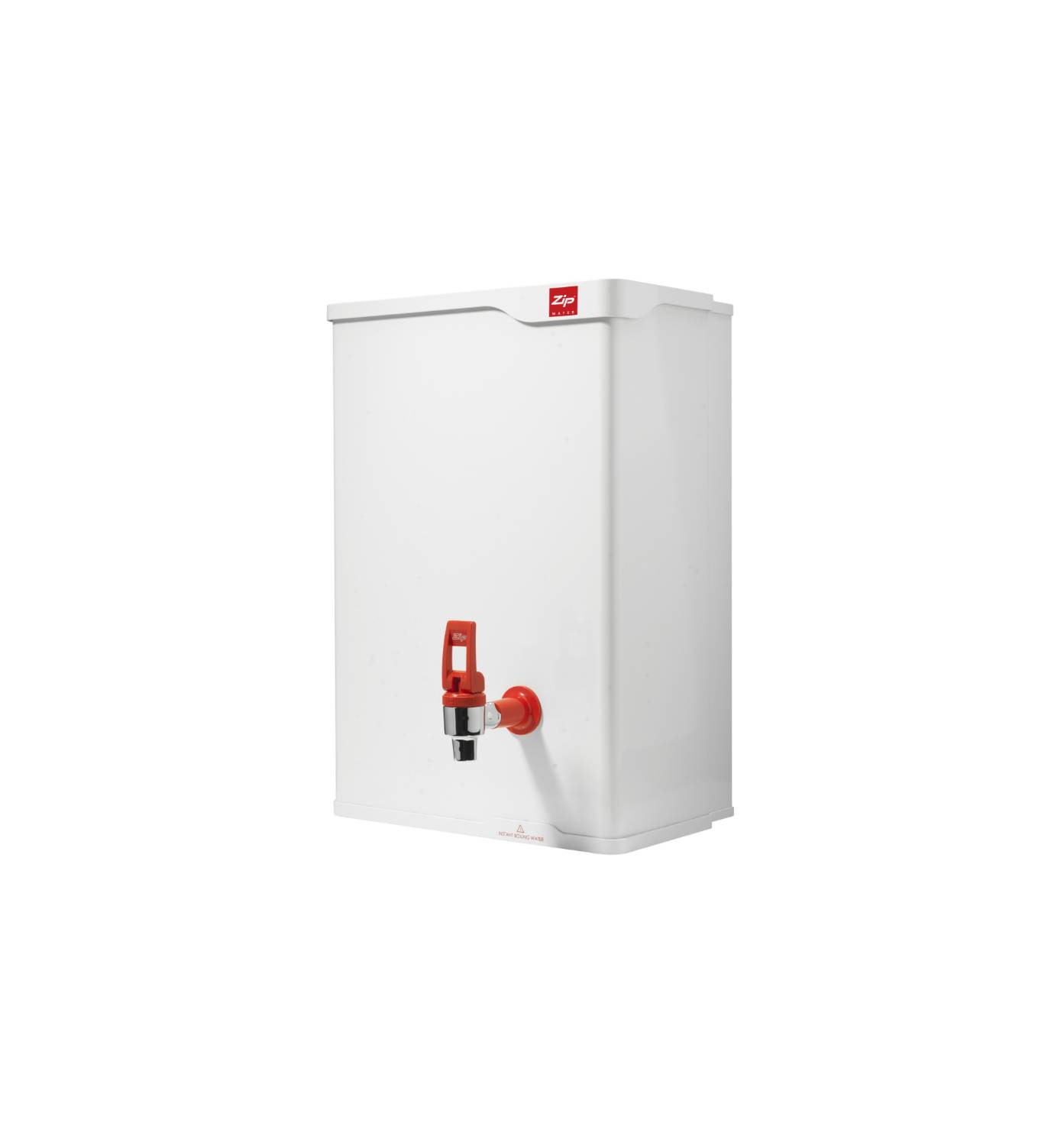

Wall mounted instant boiling water tap.
Application
Suitable for use in a range of applications.
Description
The EconoBoil is a thermostatically controlled instant boiling water system for settings where affordable reliability is required. The three-litre Econoboil delivers boiling water at a constant temperature from a smart, compact unit.
Features and benefits:
- Steam-Heat-Boost™ system recycles energy from steam to preheat the incoming cold water.
- Thermostatically controlled, twin-chamber technology with stainless steel boiling tank.
- Available in two sizes.
- Thermostat pre-set to 98°C.
- Insulated with Tontine.
General information
Color | White |
Finish | Semi-gloss Guidance for specification option: Enamelled. |
Material | Steel Guidance for specification option: Corrosion-resistant white enamelled steel. |
Shape | Rectangle |
Length | 201 mm |
Width | 329 mm |
Height | 473 mm |
Warranty description | One year Guidance for specification option: One year parts and labour warranty. |
Uniclass | |
CAWS | N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Product range |
Specification data - Instant boiling and cold water taps
Water | Boiling. |
Duty | |
Tank capacity | 5 L.Guidance for specification option: 20 users. |
Hot cups | 140 L/h. |
Dimensions | 318 x 198 x 465 mm. |
Electrical connection | |
Power | 2.2 kW. |
Voltage | 230 V. |
Water inlet | 1/2" BSP. |
Accessories | Not required. ZD100 Tundish. Guidance for specification option: ZD100 Wall mounted, chromed. ZD101 Tundish. Guidance for specification option: ZD101 Sink mounted, chromed. 93734 Safety tap top assembly. 94514 Insulating tap body cover. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
HydroCare Commercial Flyer 2024
Zip Commercial Product Guide - HydroBoil
Zip Water Commercial Price List 2024
