EchoCheck Acoustic Blocks

Verified by manufacturer 12 days ago

Colinwell Acoustic Blocks EC140

Oscar Acoustics Variant:

Concrete cellular facing blocks with resonating cavity sound cancellation, excellent absorption of low frequency and good absorption of mid and high frequency sound reverberation.

Jump to:
BOS
+44 (0)1474 854902 Website

Application

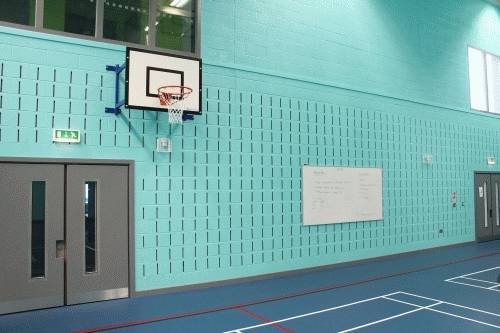

Part of wall construction. Particularly suitable for use in sports halls, swimming pools, gymnasiums, public halls and lecture theatres. Also loading bays, anaerobic digesters, plant rooms, factories, external road and railway/ road sound barriers, bus stations, train stations, road and rail tunnels.

Description

High performance acoustic block.


Concrete cellular facing blocks with enhanced acoustic properties; sound reverberation cancellation is based on the Helmholtz resonator principle. They have been specifically designed to reduce noise reverberation in both internal and external applications, giving acoustic clarity to speech and reducing noise levels of machinery, plant rooms, transport loading yards and sports hall noise. The product manufacturer has ISO 9001 and ISO 14001 accreditation.


Features and benefits:

  • Benefits from twin Helmholtz resonators for enhanced acoustic performance, even at low frequency.
  • CE-marked and manufactured in accordance with BS EN 771-3, BS 5628-1.


Finish:

Paint grade.


Options:

Colinwell Standard Blocks and Acousta Tex Blocks:

Available in the same sizes and colour options and can be used in conjunction with EchoCheck blocks for continuity of finish. Acousta Tex blocks have enhanced acoustic properties at higher sound frequencies due to a specific textured finish.

Consult Oscar Acoustics for the acoustic properties of Acousta Tex blocks.

General information

Color

Brown

Cream

Green

Red

White

Show more

Finish

-

Manufacturer guidance

Paint grade.

Material

Concrete

Guidance for specification option:

Cement, specially selected graded aggregates, an integral waterproofer and pigment.

Shape

Rectangle

Guidance for specification option:

Standard UK block size.

Length

440 mm

Width

100 mm

140 mm

215 mm

Height

215 mm

Uniclass

Pr_20_93_52_01 Aggregate concrete blocksPrimary

CAWS

F10/18 Concrete facing blockwork

F10/255 Concrete facing blockwork

Specification data - Aggregate concrete blocks

Block description

Cellular acoustic block.

Appearance

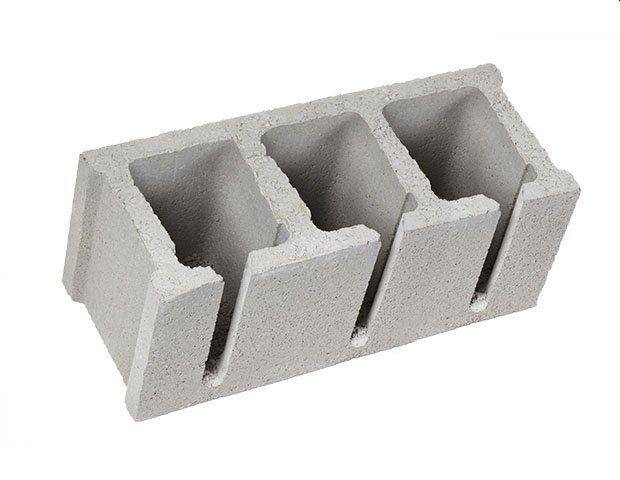

Block with twin helmholtz resonator slots in face.

Configuration

Group 2.

Compressive strength

-

Mean value

15 N.

Thermal conductivity

1.28 W/m·K.

Recycled content

65%.

Guidance for specification option:

Recycled secondary aggregate content.

Work sizes (length x width x height)

440 x 215 x 140 mm.

Accessory and special shape types

Bond-beam blocks.

Cavity closers.

Cills.

Half blocks.

Lintels.

Quoins.

Squints.

Tolerance category

D2 to BS EN 771.5.

Density

-

Net dry density

2100 kg/m³.

Reaction to fire

Fire-resistant and will not contribute to the spread of flame.

Water absorption by capillarity

<5%.

Colour

Bracken.

Guidance for specification option:

Recommended mortar: Maroon U53.

Brown.

Guidance for specification option:

Recommended mortar: Brown H21.

Buff.

Guidance for specification option:

Recommended mortar: Beige E74.

Cream.

Guidance for specification option:

Recommended mortar: Cream G89.

Green.

Guidance for specification option:

Recommended mortar: Green N70.

Show more

Weight

170 kg/m².

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Can effectively lower the carbon footprint of a building project by sequestering rich stores of carbon for the life of the structure or application.

Recyclability

-

Manufacturer guidance

Disposal in accordance with local recycling/disposal rules.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Guidance for specification option:

Recycled secondary aggregate content.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

4
