Eaves Lintels
Steel lintels designed to provide support over openings at eaves level.
Description

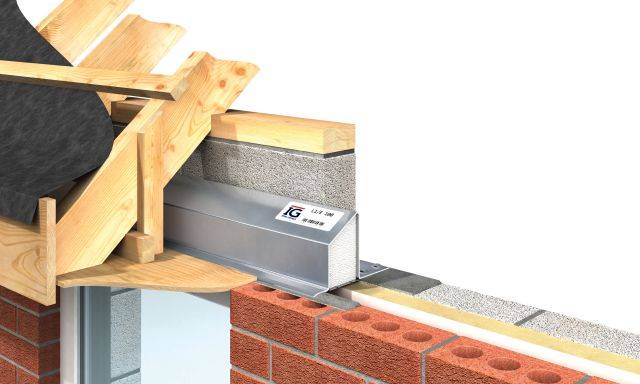

The eaves lintel has a shortened outer flange to allow the underside of the soffit board to be positioned tight against the window frame. It must be noted that brickwork cannot be built onto the outer flange of an eaves lintels. Masonry is built on the inner leaf only. The loading figures are achieved by considering the lintel and masonry as a composite unit. The IG eaves lintel also incorporates a thermal break plate on the underside of the lintel for superior structural performance. Eaves lintels are insulated with expanded polystyrene and conform to BS 13163: 2008. Profiled CFC-free insulation.
General information
Material | Galvanized steel To BS EN 10346: 2009. DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003). Stainless steel Grade 304 2b 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer. |
Uniclass 2015 | |
CAWS | F30/755 Prefabricated steel lintels F30/85 Prefabricated steel lintels |
Specification data - Carbon steel lintels
Product Reference | Eaves Lintel |
Type | L1/E 50For cavity widths 50–85 mm. L1/E 100For cavity widths 90–125 mm. |
Material | Galvanized steelTo BS EN 10346: 2009. DX51D plus Z600 or grade Z275 to BS 5977-2: 1983 (BS EN 845-2: 2003). Stainless steelGrade 304 2b 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer. |
Length | As drawingAs schedule |
Product Options | Length: Manufactured in 150 mm increments: - L1/E 100 lintels, 600–1500 mm:
- L1/E 100 lintels, 1650–2100 mm:
- L1/E 100 lintels, 2250–2400 mm:
- L1/E 100 lintels, 2550–2700 mm:
Eaves Lintel is also available for cavity widths 50–85 mm. Consult manufacturer for further details. |
