Description

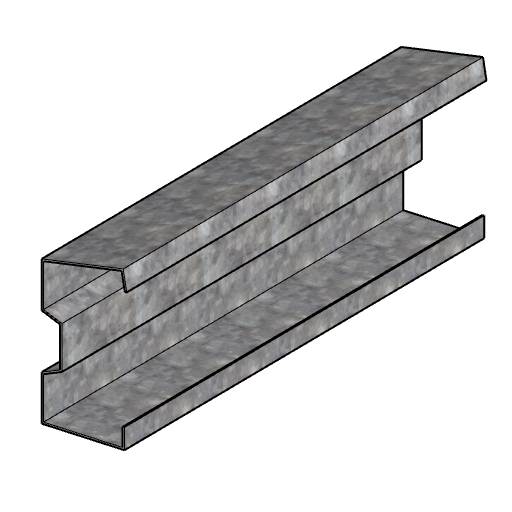

Designed to combine the function of purlin, cladding rail and gutter support at the eaves position Supported by a complete range of accessory components and brackets to complement the existing range of Zeta, Zeta II and Zed purlin and cladding rail systems.

General information
Material

Hot dipped zinc coated steel

Uniclass 2015
Cold-formed galvanized steel sections (Pr_20_76_51_21)Primary
Specification data - Cold-formed galvanized steel sections
Product Reference

EB16020

160 mm deep, 2.0 mm thick.

EB16025

160 mm deep, 2.5 mm thick.

EB16032

160 mm deep, 3.2 mm thick.

EB24020

240 mm deep, 2.0 mm thick.

EB24025

240 mm deep, 2.5 mm thick.

EB24032

240 mm deep, 3.2 mm thick.

EP16020

160 mm deep, 2.0 mm thick.

EP16025

160 mm deep, 2.5 mm thick.

EP16032

160 mm deep, 3.2 mm thick.

EP24020

240 mm deep, 2.0 mm thick.

EP24025

240 mm deep, 2.5 mm thick.

EP24032

240 mm deep, 3.2 mm thick.

Length

Insert requirements

Accessories

FL16 fixing brackets

FL24 fixing brackets

FR16 fixing brackets

FR24 fixing brackets

S16 fixing brackets

S16/125

S16/140

S16/150

S16/155

S16/170

S16/175

S16/185

S16/200

S16/225

S16/245

S16/265

S16/285

S24 fixing brackets

S24/125

S24/140

S24/150

S24/155

S24/170

S24/175

S24/185

S24/200

S24/225

S24/245

S24/265

S24/285

EB160 restraint bracket

EB240 restraint bracket

FB fixing bracket

Eaves tie

Standard product features

Material:

- Eaves beam:

Manufactured from galvanized steel S450GD + Z275, with minimum guaranteed yield strength of 450 N/mm².

- Fixing brackets:

Made from grade S275 to BS EN 10025 hot dipped galvanised finish to BS EN ISO 1461.

Product Options

Technical characteristics:

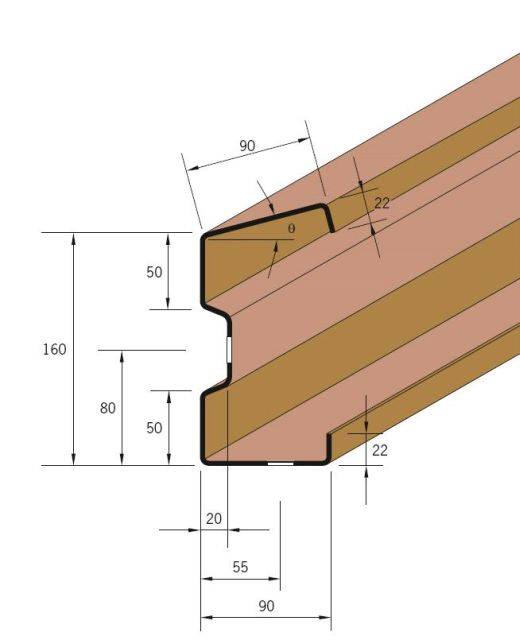

  • Eaves beam roll formed to ordered length. NB. 400 mm minimum, 16.0 m maximum.
  • 18 mm diameter web and flange holes positioned along each length as required.
  • The top flange slope can be specified from -25° minimum to +30° maximum in 1° increments.
  • Eaves beams with a negative slope or non-standard positive slope are prefixed 'EP' e.g. EP24020.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 5 2.1
Revit
- 5 2.1
Download now from NBS National BIM Library
