Single, double & triple Easy Clean timber sash windows.
Suitable for high-rise buildings and complement both traditional and modern architectural styles.

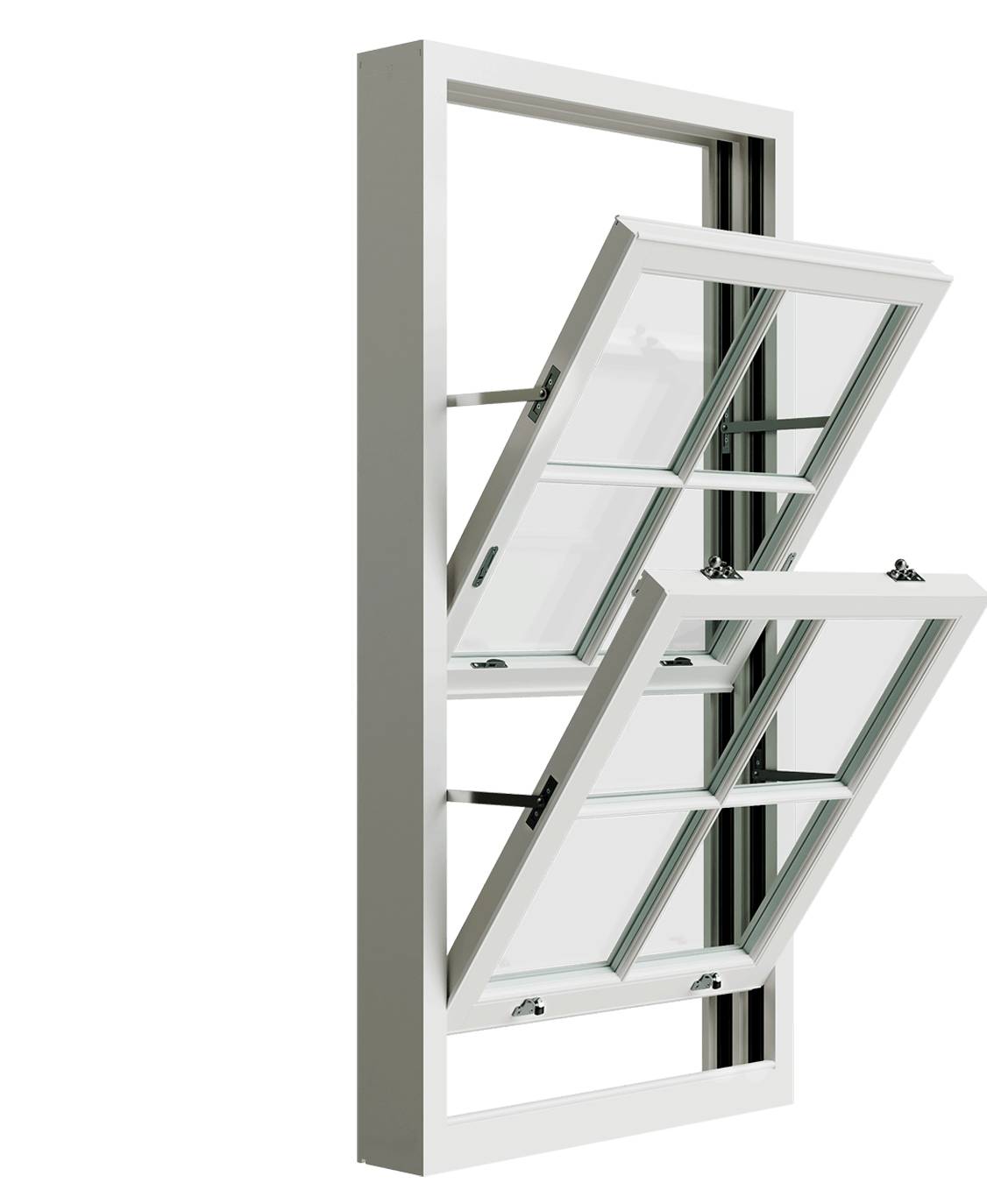

TRC’s Easy Clean Sash Windows combine the appearance of a traditional sash with a modern tilt-and-slide mechanism. Each sash can tilt inwards up to 50 degrees, making it possible to clean panes and frames safely from inside the property – a practical solution for upper floors or difficult-to-reach areas.
Built from sustainable, engineered timber, these windows are factory finished with a durable three-coat microporous paint or stain. They achieve U-values as low as 1.4 W/m²K, with tested weather performance including Class 4 air permeability, Class 5A water tightness, and Class 4C wind resistance.
With options for glazing types, ironmongery, cill projections and finishes, the Easy Clean Sash Window provides long-term durability, flexibility, and a simple way to maintain traditional character while meeting modern performance standards and functionality.
Features and benefits:
Guarantees:
TRC Contracts Ltd offers robust guarantees on all TRC window ranges we supply and install. The following general terms apply on all new windows:
Color | Black Brown White Manufacturer guidanceColour from RAL classic range - standard, dual finish or stain - optional. |
Finish | Painted Manufacturer guidanceAvailable in dual finish, RAL classic range and stain. Insert requirements. |
Material | Timber Wood |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Project specific. |
Width | Bespoke Guidance for specification option: Project specific. |
Height | Bespoke Guidance for specification option: Project specific. |
Warranty description | Ten year |
Uniclass | |
CAWS | L1/304 Wood windows L10/210 Wood windows L10/10 Wood windows |
Classification data | |
Standard | To EN 14351. |
Third-party certification | Secured by Design (SBD) approved. |
Dimensions and configurations | As drawing. Guidance for specification option: Insert reference. As schedule. Guidance for specification option: Insert reference. |
Product performance | |
Fire performance | |
Fire egress | Yes. |
Weather performance | |
UK exposure category | To BS 6375-1. |
Air permeability | To BS EN 1026, Class 4. |
Watertightness | To BS EN 1026, Class 4A. |
Resistance to wind load | To EN 12211, Class C4. |
Durability | |
Operation and strength characteristics | To BS 6375-2 |
Safety | |
Security level | To PAS 24:2016. |
Environmental | |
Background ventilation | Yes. |
Acoustic performance rating | 36 (0;-3) dB. |
Thermal | |
Whole window U-value | 1.4 W/m2K. |
Frame | |
Standard | To BS EN 942. |
Profile | 70 x 160 mm (lining width x frame depth), manufactured using mortise and tenon joints, glued and mechanically fixed. |
Wood species | Softwood. Hardwood. Accoya. Oak. |
Chain of custody | FSC. |
Appearance class | For opaque finishing: to BS EN 942, J10 for glazing beads and drip mouldings. |
Finish as delivered | Three coats of sprayed applied microporous water based TEKNOS paint system. |
Preservative treatment to wood components | Yes. |
Ventilator | Not required. Concealed through frame head trickle ventilator. Manufacturer guidanceConcealed through frame head trickle ventilator: 1700 mm², 4400 mm² or 5000 mm² air flow dependent on frame width. |
Frame horns | Not required. Type H1. Type H2. Type H3. Type H4. Type H5. Type H6. Manufacturer guidanceSolid feature horns to top sashes are included as standard. |
Glazing or infill | |
Standard | Relevant parts of BS EN 1279. |
Requirements | Factory glazed with 24 mm thickness dual sealed units. |
Hardware | A lockable Fitch fastener and two finger pulls to the bottom sash. |
Operation | |
Type | Manual. |
Fixing features | A lockable fitch fastener and two finger pulls to the bottom sash. |
Sill projection | 35 mm. 50 mm. 60 mm. 70 mm. 80 mm. 90 mm. 100 mm. 110 mm. |
Windowboard groove | Required. Not required. |
Internal Glazing Bars and/or Perimeter Bead | 18 mm lambs tongue type 2. 18 mm ovolo profile type 2. 22 mm lambs tongue type 1. 22 mm ovolo profile type 1. |
External Glazing Bars | 18 mm chamfered putty bar. 22 mm chamfered putty bar. |
Glass units | 24 mm double glass unit. Guidance for specification option: 4 mm tough/ 16 mm argon/ 4 mm tough Low-E. 24.8 mm sound control double glazed unit. Guidance for specification option: 6.8 mm sound control laminated/ 14 mm argon/ 4 mm tough Low-E. Special order. Guidance for specification option: Insert requirement, safety, obscured, acoustic or solar control glass options available. |
Perimeter/Integral spacer bar | Black warm edge perimeter spacer and integral glazing bars within unit cavity. Matt chrome warm edge perimeter spacer and integral glazing bars within unit cavity. White warm edge perimeter spacer and integral glazing bars within unit cavity. |
Ironmongery | Antique brass sash fitch fastener, sash lifts, sash pulleys. Brass sash fitch fastener, sash lifts, sash pulleys. Oil rubbed bronze sash fitch fastener, sash lifts, sash pulleys. Polished chrome sash fitch fastener, sash lifts, sash pulleys. Satin chrome sash fitch fastener, sash lifts, sash pulleys. Satin nickel sash fitch fastener, sash lifts, sash pulleys. Special order. Guidance for specification option: Selected Croft ironmongery with bespoke finish is available; consult manufacturer and insert requirement. |
Child restrictor | Not required. Angel lock. Guidance for specification option: Standard. Traditional sash stop. |
Species | Engineered Accoya. Engineered European oak. Engineered hardwood. Engineered redwood. Guidance for specification option: Standard. |
Applied finish | Dual finish. Guidance for specification option: Insert requirements. RAL classic range. Guidance for specification option: Insert requirements. Stain. Guidance for specification option: Insert requirements. Manufacturer guidanceThree coat spray applied factory finish using water based micro-porous paint/ stain. |
Sash | 55 x 55 mm top rail and stiles, 90 x 55 mm bottom rail, 56 x 55 mm meeting rail. Manufacturer guidanceSashes are hung on spiral balances and have an additional feature, which allows the sash to be lowered into the room to allow cleaning and maintenance of the outside face. |
Transom/ mullion | 140 mm wide (70 mm for triple sash with fixed outer sash). |
Sill | 69 x 160 mm. Manufacturer guidanceSolid hardwood. |
Staff bead | Timber. |
MoistureContent | 12–19% (wood). |
Glazing beads | Internally beaded. |
Contains Red List materials | No |
Country of material origin | Latvia |
Country of product manufacture | Lithuania |
Material | Timber Wood |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 0.5 (kg CO₂ eq/kg) Declared unit : 0.5 Lower emissions | |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
