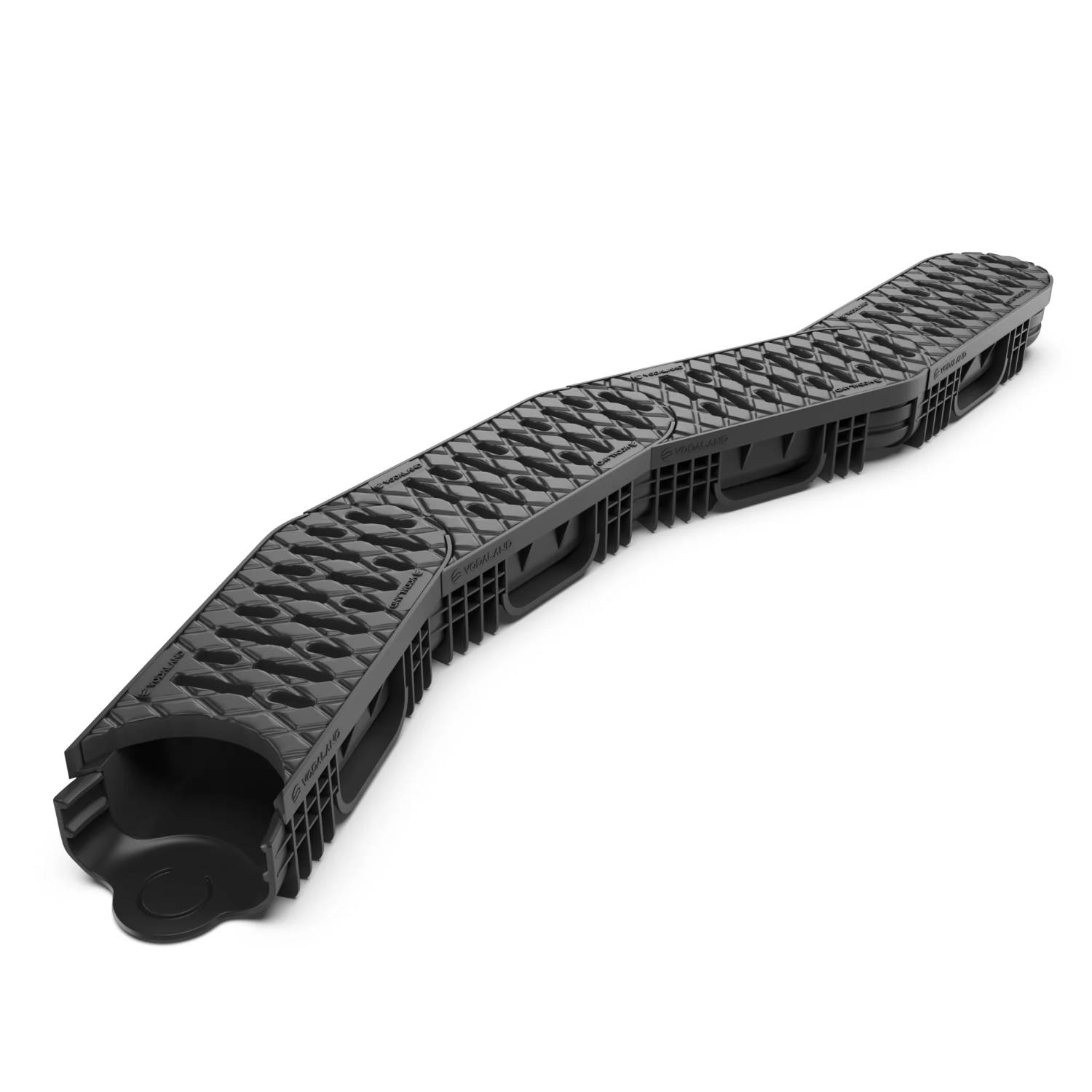

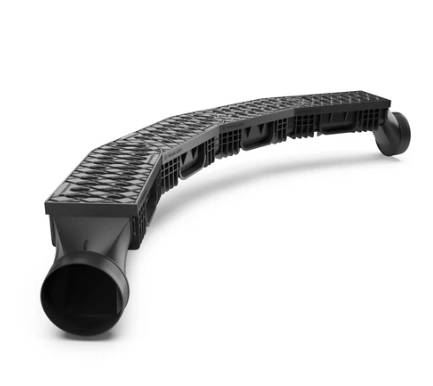

EASY 2 Radius channel drain, A15 - Curved Drainage Channels with Grating
Verified by manufacturer 4 days ago
Radius channel drain, 100 mm wide polypropylene system with plastic grates, allows curved runs up to 22° per unit or 66° per metre, A15 pedestrian rated, ideal for patios, gardens, and landscaping.
Application
Radius drainage channel suitable for curved surface water drainage in patios, gardens, landscaping projects, fountains, bay windows, terraces, and other pedestrian areas requiring aesthetic and functional curved drainage.
Description
The EASY 2 Radius channel drain is a modular polypropylene drainage system engineered for curved and complex layouts. Each 1-metre set consists of one R1 unit, two R2 units, and one R3 unit, enabling up to 66° curves per set, with the option to extend using additional R2 units.
The channel measures 100 mm internal width, 125 mm external width, and 75 mm depth, with 110 mm vertical outlet compatibility. Pedestrian load rated (A15), the system features removable plastic grates and secure clip connections for fast assembly. Every component, including end caps, outlets, and connectors is compatible with the radius units for versatile layouts. Sealant is recommended for watertight installation.
Features and benefits:
- Up to 22 degree turns with each unit.
- Every run must start with R1 channel unit and end with R3 channel unit. Can have as many R2 units in between as needed to achieve desired length. For example, a continuous curved run of 3 metres would consist of 1x R1, 1x R3, & 10x R2 unis.
- Polypropylene plastic channel and plastic grate.
- Load class A15.
- Compatible with EASY 2 straight channel drain.
- 100 mm internal and 125 mm external width.
- 75 mm external depth.
- Six made to order colours.
General information
Color | Black White Grey Beige Brown |
Material | Polypropylene Plastic |
Shape | Other |
Length | 300 mm 350 mm |
Width | 125 mm |
Height | 75 mm |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
SKU Code | 08818-R1, 08818-R2, 08818-R3 |
Specification data - Drainage channels with gratings
Classification data | |
Standard | To BS EN 1433. |
Properties | |
Material | Plastics. Guidance for specification option: Polypropylene plastic. |
Gratings | |
Material | Plastics. |
Form | Slotted. |
Colour | Black. Guidance for specification option: As standard. White. Guidance for specification option: Made to order. Grey. Guidance for specification option: Made to order. Dark grey. Guidance for specification option: Made to order. Sandstone. Guidance for specification option: Made to order. Brick. Guidance for specification option: Made to order. Green. Guidance for specification option: Made to order. |
Load class (minimum) | A 15. |
Channel unit dimensions | |
Width (nominal) | 100 mm. Guidance for specification option: 100 mm internal and 125 mm external width. |
Depth (nominal) | 75 mm. |
Length | Unit R1: 300 mm. Unit R2: 350 mm. Unit R3: 300 mm. Manufacturer guidanceComplete set of (1x R1 unit, 2x R2 unit, 1x R3 unit). |
Integral accessories | Not required. Extension unit, unit R2. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Ukraine |
Material | Polypropylene Plastic |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
