EasiWall
Verified by manufacturer 2 months ago
Rw 41 dB
Rw 41 dB

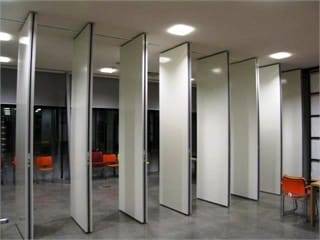

Acoustic semi-automatic sliding stacking individual panel partition.
Application
Suitable for a range of applications including commercial institutions, sports stadia, stores and hotels.
Description
Acoustic semi-automatic sliding stacking individual panel partition. A range of extruded aluminium and cold rolled steel tracks are available to suit every project size. The walls are fitted with welded steel frames to ensure durability and longevity. The choice of board finish, consisting of hardwood, chipboard or MDF core, is embedded into concealed or exposed aluminium profiles.
Features and benefits:
- As PremierWall, with the addition of electrically operated automatic seal operation.
- Individually operated, top hung panels, purpose made to suit any opening size up to 3 metres high.
- Retractable top and bottom seals, able to deal with floor level differences up to 20 mm.
- United Kingdom Accreditation Service (UKAS) laboratory certified acoustic performance, able to achieve up to Rw 59 dB.
- Manually operated by scissor mechanism providing 2 kN of pressure for optimal acoustic performance.
- No unsightly floor track, to keep a clean aesthetic design.
- Each panel is supported by low maintenance, non-deforming trolleys. Pre-sealed long life multiple bearing races to each wheel.
- Bespoke layouts and configurations, utilizing corner panels, junction panels, pass doors, glazing cut-outs and matching recess doors for more control of design.
- A wide variety of features and finishes.
- UK manufactured product delivered straight from the manufacturer's Midlands-based factory.
General information
Color | White Guidance for specification option: Bright White. Cream Grey Guidance for specification option: Graphite. Brown Guidance for specification option: Walnut, Natural Oak or Pale Oak. Black |
Finish | Matt Woodgrain Gloss Primed Laminated Manufacturer guidanceLow and high pressure laminates are available in a selection of different textures. |
Material | Aluminium Chipboard Steel Laminate Medium density fibreboard (MDF) |
Length | Bespoke Guidance for specification option: Maximum System Length = 20m |
Width | Bespoke Guidance for specification option: Maximum Individual Panel Width = 1250mm |
Height | Bespoke Guidance for specification option: Maximum Panel Height = 3m |
Warranty description | One year Guidance for specification option: One year manufacturer's warranty, extended to ten years with service agreement. |
Uniclass | |
CAWS | L20/60 Doors L20/545 Sliding stacking panel partitions |
Specification data - Sliding stacking panel partitions
Third-party certification | United Kingdom Accreditation Service (UKAS) laboratory certified acoustic performance. |
Performance | To EN ISO 140-3, Rw 41 dB. |
Operation | Semi-automatic operation of scissor mechanism. |
Seal pressure | 2 kN.Manufacturer guidanceMechanical seals. |
Dimensions (nominal) | |
Structural opening size | Manufacturer guidanceInsert requirements or refer to drawing or schedule. |
Panel (average) | |
Width | Manufacturer guidanceInsert requirements or refer to drawing or schedule. From 650 mm up to 1250 mm as standard, wider panels possible to special order; consult manufacturer. |
Height | 3000 mm. |
Thickness | 100 mm. |
Average panel weight | |
Standard panel | 37 kg/m². |
Track system | |
Head track | S1 – Single point suspension.Guidance for specification option: Straight runs only, panels stacked within opening. Single track, single point suspension. Four-wheel hanger. S2 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S3 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S4 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S5 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S6 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S7 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S8 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S9 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. S10 – Double roller suspension.Guidance for specification option: For 90° movement of panels away from main track, for offset stacking. Twin point twin disc or cross roller suspension. Manufacturer guidanceTrack layout. |
Park position | Single stack.Double-ended stack.Offset stack.Bespoke stack. |
Panels | |
Construction | Full steel frame, with double skin cladding of 16 mm thick high-density chipboard. |
Finish as delivered | Low pressure laminate from standard range.Guidance for specification option: Insert requirements. Available in White, Bright White, Cream, Graphite, Black, Grey, Walnut, Natural Oak, Pale Oak. Duhospan low pressure laminate.Guidance for specification option: Over 30 finishes are available including 131/7 Super White, U23/6 Pastel Grey and HN312 Light Oak. Low, and a selection of different textures including Orange Peel, Matt, Pearl, Woodgrain, Nature Matt, Gloss, Satin. Consult manufacturer and insert requirements. High pressure laminate.Guidance for specification option: From Altofina, Egger and Formica. Insert requirements. Magnetic whiteboard laminate.Guidance for specification option: Manufacturer's colour range. RAL colours and woodgrains from Accordial house collection, as standard. Drywipe gloss laminate.Guidance for specification option: Over 30 finishes are available. Consult manufacturer and insert requirements. Real wood veneer.Guidance for specification option: Wide range available including American Oak, European Oak, Birch, Maple. Consult manufacturer and insert requirements. Primed for on site decoration by others.Guidance for specification option: Priming sheet. Applied sheet, ready for final finish by manufacturer. Fabric wrapped finish.Guidance for specification option:
Manufacturer guidanceWhere panel type varies within the partition assembly, insert identifiers for panels after each selection. |
Vision panels | None.Single glazed to all standard panels.Single glazed to all standard panels and pass door panels.Double glazed to all standard panels.Double glazed to all standard panels and pass door panels.Double glazed with internal blinds to all standard panels.Double glazed with internal blinds to all standard panels and pass door panels.Bespoke glazing.Guidance for specification option: To be confirmed. |
Pass doors | Not required.Single, inset. |
Hardware | Not required.With aluminium handle and black PVC backplate.With FSB handle and recessed backplate.Manufacturer guidancePass door handle. |
Partition assembly | As per drawing. Guidance for specification option: Insert drawing number. As per schedule. Guidance for specification option: Insert schedule number. |
Track finish | Aluminium, RAL 9010. Steel, RAL 9010. Other, RAL. Guidance for specification option: Consult manufacturer and insert requirement. |
Panel Type | Standard panel NE. Telescopic closure panel with concealed nose TE. Guidance for specification option: One TE panel required at end of run for each opening. Internal telescopic nose for visual neatness as standard, matching panel finish. Inset passdoor panel SE. Guidance for specification option: Single leaf inset pass door panel. Reduces overall acoustic insulation. Minimum Panel Height: 2645 mm. Manufacturer guidance
|
Fire resistance | Euro Class D boards. Guidance for specification option: As standard. Euro Class C boards. Guidance for specification option: Surface spread of flame. Euro Class B boards. Guidance for specification option: Treated non-combustible substrate board. |
Panel vertical edge type | Concealed. Guidance for specification option: Hardwearing 2 mm thick edge banding. Exposed. Guidance for specification option: Protective edge onto panel face by 7 mm. |
Panel vertical edge finish | Aluminium satin anodized. Guidance for specification option: As standard. Aluminium other. Guidance for specification option: RAL colour; consult manufacturer for more information. |
Track profile | Manufacturer guidance
|
Mechanical seals | Horizontal and vertical seals activated by a 24 V electric motor concealed within panel thickness. Manufacturer guidancePanel clearance: 20 mm top and 25 mm bottom. |
Acoustic seal | Lip, tadpole and bulb seals. |
Locking | Height adjustment mechanism. Manufacturer guidanceCarrier locking type. |
Posts | Wapl: Acoustic foam adaptor. Wal: Traditional profile post. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Electrical connection | 240 V 13 A with isolated breaker and fused spur adjacent to Accordial control box, below ceiling level and adjacent to TE panel. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
