QA Certificate
Certificate type
DPC for protection against radon, air and moisture.

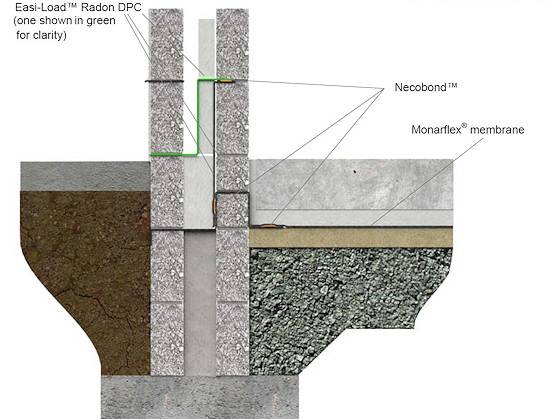

Radon DPC manufactured using thermoplastic co-polymer technology to give effective protection where a radon, air and moisture seal must pass through masonry walls. It is particularly suitable for cavity wall construction and can be used at all floor/ wall junctions. As well as offering high radon, air and moisture vapour resistance, Easi-Load™ Radon DPC also has a high tear strength, will not extrude under load and provides excellent mortar adhesion. It has similar radon gas resistance properties to Necoseal, RMB 350 and RMB 400. Ends should be overlapped by 100 mm and joints should be sealed with Necobond RT Tape.
Features:
Necoflex RAM system:
Can be used with other products to form the radon, air and moisture protection system for ground floors in buildings. It is used to seal floors, walls and service penetrations, thereby ensuring the necessary degree of separation between the interior spaces of a building and the underlying soil.
Features | Available in 900 mm wide roll format to allow full cavity seal Fully meets I.S. 57 for Polyethylene DPCs Fully compatible with all Monarflex radon, air and moisture membranes Provides a robust Radon DPC for masonry walls and ensures correct specification at floor/ masonry wall junctions Tested using radon gas and certified by NSAI |
Size | 0.9 x 20 m rolls |
Uniclass 2015 | |
CAWS | F30/320 Damp proof courses – plastics F30/46 Damp proof course – plastics |
Product Reference | Easi-Load™ Radon DPC |
Easi-Load™ Radon Corner Assembly | Not requiredRequired |
Standard product features | Size: 0.9 x 20 m rolls. Colour: Black. |
Product Options | Easi-Load™ Radon Corner Assembly: Developed to provide a fast and effective radon, air and moisture seal in traditionally difficult to seal corners. The assembly comprises three pieces, each carefully pre-formed from low density polyethylene (LDPE), without seams or joints in factory controlled conditions. Its unique design makes it suitable for sealing various upstand heights of 100–225 mm, and a specially developed, pre-applied sealant strip, provides radon, air and moisture protection while accommodating construction settlement up to 8 mm. |
