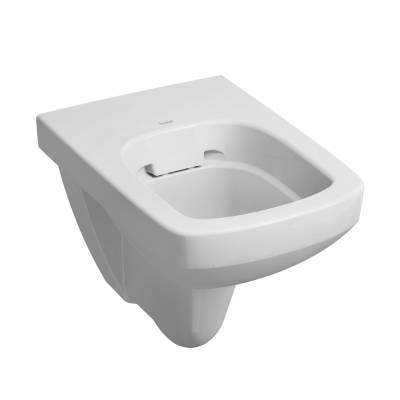

E100 Rimfree Square Wall Hung WC
Description

Rimfree WC suite, easy to clean and nowhere for germs to hide. Achieves a flushwise 4/2.6 L flush.

General information

Material

Vitreous china

Uniclass 2015

Ss_40_15_75_97 WC systemsPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC systems

Product Reference

E100 Rimfree Square Wall Hung WC

Pan

E11909WH

Horizontal outlet.

Cistern

Insert requirements from the Twyford concealed cisterns matrix.

Seat and cover

E17816WH

Metal hinges, bottom fix.

E17856WH

Metal hinges, bottom fix.

E17858WH

Quick release. Metal hinges, soft closing mechanism.

E17866WH

Metal hinges, top fix.

Fixings

SR8138XX

Supporting bracket and fixing kit. Supporting brackets screwed to floor for non load-bearing walls, up to 100 mm thick.

Outlet connector

WF1240WH

P trap outlet connector.

WF1241WH

S or turned P trap connector.

Standard product features

Material:

Vitreous china.

Colour:

White.
