Dynamic ZM - Mimic Fire Alarm Panel
Verified by manufacturer 2 days ago

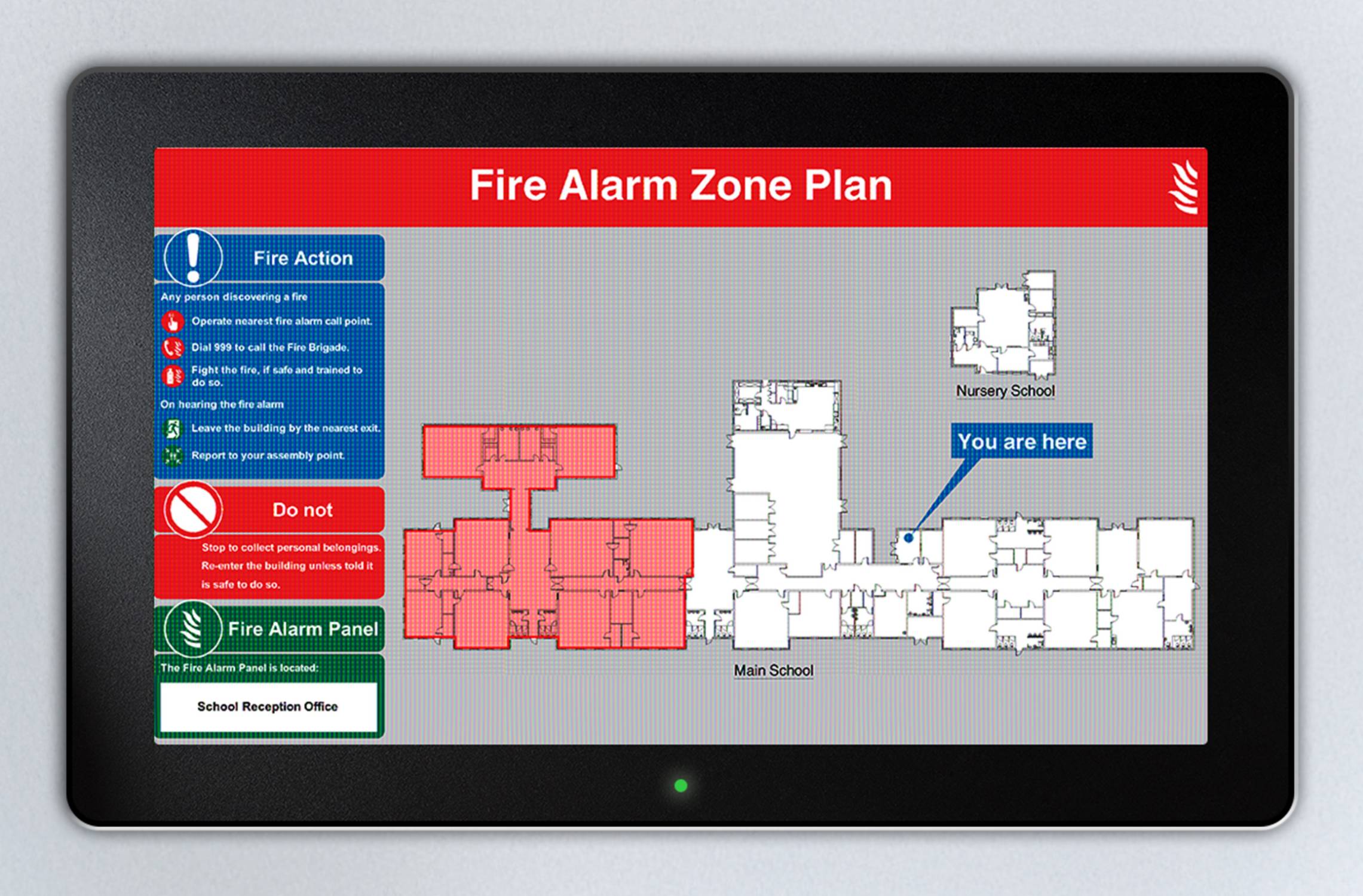

Mimic fire alarm panel with 21.5" LCD screen.
Application
Suitable for use internally within fire alarm system applications.
Description
dynamicZM is a dynamic zone mimic® compatible with a range of addressable and conventional fire alarm control panels.
Using a large 21.5” LCD screen, it displays any active fire alarm zones onto a plan of the protected premises automatically without any user intervention.
Where fire alarm zones are used for remote inputs or non-fire events, specific and bespoke messaging can be applied relating to the activated zone on the fire alarm panel.
At all other times, dynamicZM displays scheduled media content. This can be set at the commissioning stage or controlled by the end user through an online media manager platform.
Features and benefits:
- Compatible with both conventional and addressable systems.
- Allows siting of fire alarm panel to an alternative location.
- Large 21.5” LCD display.
- Unobtrusive design.
- Displays active fire zones during an alarm condition without user intervention.
- User-configured media display.
- Built-in fault output for monitoring.
- Smart power saving mode conserves battery power during a mains failure.
- Remote key switch test facility.
- Compatible with fire alarm panels from C-Tec, Global Fire Equipment, Fike, Advanced and Kentec.
General information
Color | Black |
Finish | Other |
Material | Glass Other |
Shape | Rectangle |
Length | 517 mm |
Width | 310 mm |
Uniclass | |
CAWS | W90/325 Fire detection and alarm control and indicating equipment |
SKU Code | DZM-1 |
Specification data - Mimic fire alarm panels
Classification data | |
Standby power supply | |
Capacity | Guidance for specification option: 24 V d.c. display powered from a separately installed third-party EN 54-4 approved power supply unit, including batteries to support a minimum display standby period of 24 hours and 30 minutes in an alarm condition (display at full brightness during an alarm condition). |
Enclosure | |
Colour | Black. |
Mounting | Semi-recessed. Surface. |
Display | 21.5" LCD display, HD 1920 x 1080 resolution. |
Connectivity | RJ-45. Guidance for specification option: Users connectivity option. Installers connectivity options: WiFi (1 x 802.11 a/b/g/n/ac Wireless LAN) and USB 3.2. |
Dimensions | 517 x 310 mm. |
Weight | 10 kg. |
Operating temperature range | 0–40°C. |
Load | Quiescent (standby): 490 mA. Alarm (screen on): 1.57 A. Manufacturer guidanceCurrent load. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Glass Other |
