DX Celsius 1 Outlet, 2 Handle Concealed Thermostatic Valve

DX Celsius 1 Outlet, 2 Handle Concealed Thermostatic Valve

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

VADO

DX Celsius 1 outlet, 2 handle concealed thermostatic valve object

Jump to:
+44 (0)1934 744466 www.vado.com
Description

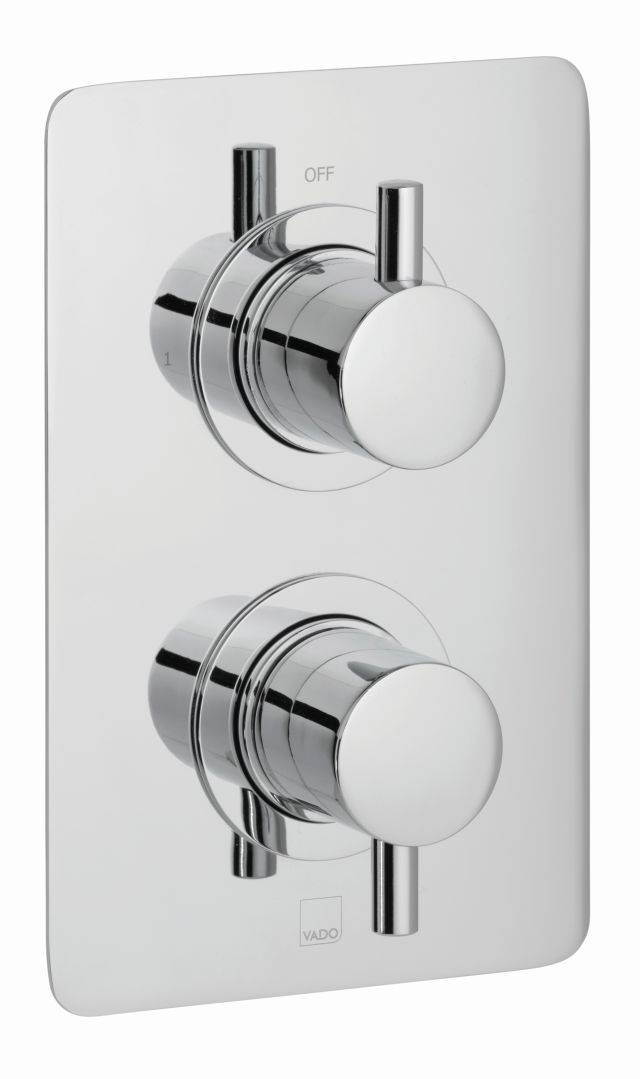

Concealed, wall mounted, single outlet, two handle thermostatic shower valve with rectangular, vertically-aligned backplate.

Features and benefits:

  • Part of the Celsius collection.
  • Concealed inlet/ outlets.
  • Includes thermostatic and diverter cartridges.
  • Two ¾" female inlets.
  • One ¾" female outlet.
  • Supplied with ¾" to ½" adaptors.
  • Includes bleed valve for system flush on installation.
  • 15-year guarantee.

General information

Finish

CEL-148D/SQ-C/P

Standard.

IND-CEL-148D/SQ-BG - Bright gold

IND-CEL-148D/SQ-BLK - Brushed black

IND-CEL-148D/SQ-BRG - Brushed gold

IND-CEL-148D/SQ-BRN - Brushed nickel

IND-CEL-148D/SQ-BN - Bright nickel

IND-CEL-148D/SQ-BRZ - Brushed bronze

Material

Brass

WarrantyDescription

15 year guarantee (registration required)

Uniclass 2015

Pr_40_20_87_81 Shower thermostatic water supply setsPrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Specification data - Shower thermostatic water supply sets

Product Reference

Celsius DX1 Outlet 2 Handle Thermostatic Valve

Finish

CEL-148D/SQ-C/P

Standard.

IND-CEL-148D/SQ-BG - Bright gold

IND-CEL-148D/SQ-BLK - Brushed black

IND-CEL-148D/SQ-BRG - Brushed gold

IND-CEL-148D/SQ-BRN - Brushed nickel

IND-CEL-148D/SQ-BN - Bright nickel

IND-CEL-148D/SQ-BRZ - Brushed bronze

Standard product features

Size:

  • Width (external): 130 mm.
  • Height (external): 200 mm.
  • Optimum installation depth: 82 mm (minimum: 75 mm; maximum: 95 mm).

Minimum operating pressure:

  • Shower: 0.2 bar.
  • Bath: 1.0 bar.

Flow rate (at 3 bar pressure):

30 L/minute.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
Third party certifications
  • Water Regulations Advisory Scheme (WRAS): Approved
