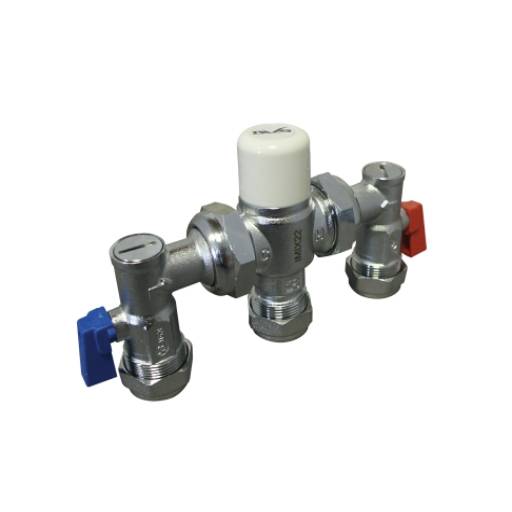

DVS Thermostatic Mixing Valve
Verified by manufacturer over a year ago
A highly advanced TMV3 approved thermostatic mixing valve for use in basin, shower, bidet and high pressure bath fill applications (above 1 bar).
Application
Any public, semi-public, commercial or domestic setting.
Description
A highly advanced TMV3 approved thermostatic mixing valve for use in basin, shower, bidet and high pressure bath fill applications (above 1 bar). The valve is designed to control the mixed water outlet temperature to within +/- 2°C regardless of fluctuations in the temperature and pressure of the hot and cold water supplies. The valve will also shut the mixed water outlet instantly in case of hot or cold water failure (Supply conditions must remain within limits). It incorporates a unique purpose-built adjuster key so that standard tools cannot be used by unauthorised persons to change the set outlet temperature. The valve is fully approved by WRAS under the TMV3 scheme to the DO8 specification for basin, shower, bidet, and high pressure bath fill applications. Disclaimer: All valves should be commissioned after installation.
This download contains BIM objects that represent the following products:
- AC17-047
General information
Color | White |
Finish | Polished |
Material | Copper |
Shape | Circle Guidance for specification option: Anti-ligature exposed handle. T shapoe, pipe arrangement on reverse of wall. |
Length | 100 mm |
Width | 100 mm |
Height | 100 mm |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves |
Specification data - Sink thermostatic water supply sets
Approvals | TMV3. |
Materials | |
Body | Brass. |
Finish and colour | Chrome. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
