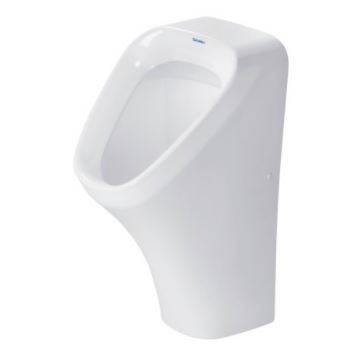

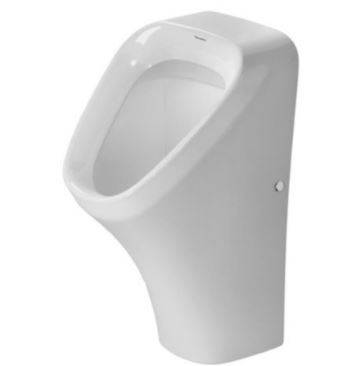

DuraStyle Urinal
Verified by manufacturer over a year ago
2804300000
2804300000
Wall mounted urinal (white) with concealed inlet.
Application
Suitable for multiple sectors.
Description
Wall mounted urinal (white) with concealed inlet, siphonic action, vertical and horizontal outlet, fixings included.
Features and benefits:
- Design by Matteo Thun and Antonio Rodriguez.
- Available in HygieneGlaze: An Antibacterial ceramic glaze which kills 99.99% of germs within 24 hours.
- Available with WonderGliss surface finish.
General information
Color | White Guidance for specification option: White Alpin or HygieneGlaze (antibacterial). |
Finish | Manufacturer guidanceWondergliss surface finish optional. |
Material | Ceramic |
Length | 300 mm |
Width | 340 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/316 Urinals and flushing valves N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns |
SKU Code | 2804300000, 2804300007, 2804302000, 2804302007, 28043000001, 28043000071, 28043020001, 28043020071 |
Specification data - Wall-hung urinals
Classification data | |
Form | Bowl. |
Materials | |
Body | Ceramic. |
Finish and colour | 00 White Alpin. Guidance for specification option: Standard. |
Water supply, overflow and waste holes | |
Water supply | Top supply holes. |
Overflow | None. |
Waste | Bottom horizontal outlet, siphonic action. Bottom vertical outlet, siphonic action. |
Integral accessories | Fixings. |
Accessories | 005112 – Siphon 1–4 L, horizontal outlet (concealed). 005111 – Siphon 1–4 L, vertical outlet. 695800 – Water inlet mechanism for urinals with back supply. |
Weight | 15.4 kg. |
Surface finish | Standard. |
Component | Model without fly. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
