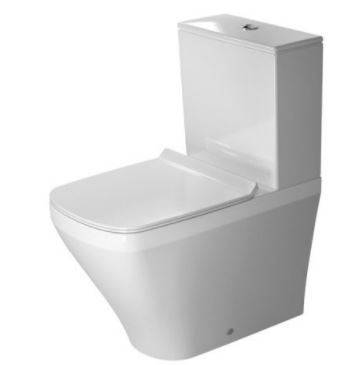

DuraStyle Close Coupled Toilet

Verified by manufacturer over a year ago

2155090000

Duravit UK Ltd Variant:

Close-coupled toilet, white.

Jump to:
+44 (0)207 2533559 Website

Application

Suitable for multiple sectors.

Description

Close-coupled toilet (without cistern), washdown model, fixings included, UWL class 1.


Features and benefits:

  • Outlet for Vario connector set, with Vario connecting bend.
  • For horizontal and vertical outlet.
  • Length adjustable from 70–170 mm.
  • Vertical outlet from 160–200 mm.
  • White Alpin.
  • HygieneGlaze surface finish optional: An antibacterial ceramic glaze which kills 99.99% of germs within 24 hours.
  • WonderGliss surface finish optional.
  • Pan height: 400 mm.
  • Flush volume: 4.5 L.
  • Design by Matteo Thun and Antonio Rodriguez.

General information

Color

White

Guidance for specification option:

White Alpin or HygieneGlaze (an antibacterial ceramic glaze that provides almost indefinite effectiveness).

Finish

-

Manufacturer guidance

WonderGliss option available.

Material

Ceramic

Shape

Rectangle

Length

370 mm

Width

630 mm

Height

400 mm

Guidance for specification option:

Pan height: 400 mm.

Warranty description

Lifetime

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

SKU Code

2155090000, 2155092000, 21550900001, 21550920001

Specification data - WC pans

Classification data

Form

Close-coupled, washdown.

Pan height

400 mm.

Materials

-

Body

Ceramic.

Finish and colour

00 White Alpin.

Guidance for specification option:

Standard.

Water supply, outlet and seat holes

-

Water supply

Top inlet.

Outlet

Horizontal back outlet.
Vertical outlet.

Seat holes

Standard pattern.

Guidance for specification option:

Holes 415 mm from front and 170 mm apart.

Integral accessories

Fixings.

Accessories

Not required.
001422 – Vario connector set including excenter.
899025 – Vario connecting bend for vertical outlet.

Weight

30.5 kg.

Flush volume

4.5 L.

Surface finish

Standard.

Sustainability data

Country of product manufacture

Germany

BIM objects

Platform Compatible Version
Revit
-

1
