Duplex Stainless Steel/ Powder Coated Aluminium Balustrade
Application

For internal balustrading use.

Description

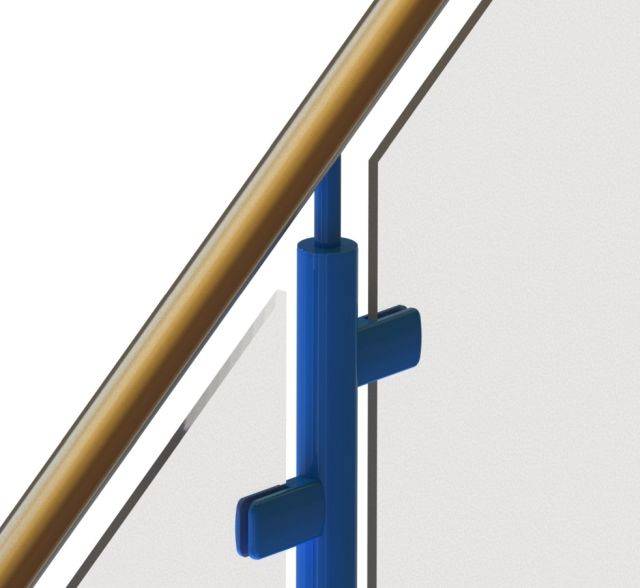

Combined stainless steel and aluminium powder coated balustrade available in a wide range of standard RAL and contemporary metallic colours to suit every aesthetic need.

Duplex allows the combination of an aluminium or stainless steel handrail, stanchions and infill rails in one balustrade system. The two materials provide an attractive contrast and complement each other within the same modular design solution.

The modular system offers the versatility to meet virtually any design requirement, no matter how complex. The balustrade is engineered to close tolerances, with quality formed bends eliminating the need for unsightly mitred joints. Component parts are mechanically secured with concealed fixings, requiring no welding and ensuring rapid assembly on site (all fixings are supplied). Bespoke finishes are available, and the balustrade can also be combined with the Spectrum Stainless Steel Balustrade within the Duplex system.

Features and benefits:

  • 100% accuracy and uniform quality through factory manufacturing.
  • Durable, hard-wearing and maintenance free.
  • Large range of standard and bespoke components and infills to meet virtually any design.
  • Meets all relevant Building Regulations.
  • Modular connection with internal fixtures providing smooth, clean lines for comfortable touch and high aesthetic value.
  • Fast, low-energy installation with no welding/ hot works.
  • Manufactured in accordance with BS 6180.
  • Includes a lifetime guarantee.

Applications:

For internal balustrading use.

General information
Uniclass 2015
Pr_25_30_36_84 Stainless steel handrailsPrimary
CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Stainless steel handrails
Product Reference

Duplex Stainless Steel/ Powder Coated Aluminium Balustrade

Loading requirement

0.36 kN/m

0.74 kN/m

1.5 kN/m

3 kN/m

Stanchion -
Type

Centric

Quad

Shape

Slim

Material

Aluminium

Nylon coated alloy to BS1474 (6063 T4 and T6).

Stainless steel, grade 1.4301 (304)

Stainless steel, grade 1.4401 (316)

Colour

Not applicable

For stainless steel.

Aluminium (50)

For aluminium only.

Black (89)

For aluminium only.

Blue (83)

For aluminium only.

Bronze (76)

For aluminium only.

Burgundy (81)

For aluminium only.

Champagne (70)

For aluminium only.

Chromium (78)

For aluminium only.

Dark Silver (56)

For aluminium only.

Graphite (77)

For aluminium only.

Green (85)

For aluminium only.

Red (80)

For aluminium only.

Yellow (87)

For aluminium only.

Top rail/ handrail -
Type

Offset handrail

Allows glass infills to be extended higher.

Ovular top rail

Tubular top rail

Wall mounted handrail

Material

Aluminium

Nylon coated alloy to BS1474 (6063 T4 and T6).

Stainless steel, grade 1.4301 (304)

Stainless steel, grade 1.4401 (316)

Colour

Not applicable

For stainless steel.

Aluminium (50)

For aluminium only.

Black (89)

For aluminium only.

Blue (83)

For aluminium only.

Bronze (76)

For aluminium only.

Burgundy (81)

For aluminium only.

Champagne (70)

For aluminium only.

Chromium (78)

For aluminium only.

Dark Silver (56)

For aluminium only.

Graphite (77)

For aluminium only.

Green (85)

For aluminium only.

Red (80)

For aluminium only.

Yellow (87)

For aluminium only.

Infill -
Type

Mesh

Perforated

Rails, horizontal

Insert diameter requirement.

Rails, vertical

Insert diameter requirement.

Tension wire

Toughened glass, clear

Toughened glass, tinted

Material

Aluminium

Nylon coated alloy to BS1474 (6063 T4 and T6).

Stainless steel, grade 1.4301 (304)

Stainless steel, grade 1.4401 (316)

Infill colour

Not applicable

For tension wire, toughened glass and stainless steel infills.

Aluminium (50)

For aluminium only.

Black (89)

For aluminium only.

Blue (83)

For aluminium only.

Bronze (76)

For aluminium only.

Burgundy (81)

For aluminium only.

Champagne (70)

For aluminium only.

Chromium (78)

For aluminium only.

Dark Silver (56)

For aluminium only.

Graphite (77)

For aluminium only.

Green (85)

For aluminium only.

Red (80)

For aluminium only.

Yellow (87)

For aluminium only.
