Duofix Urinal Frames

Application

  • For installation of wall-hung urinals.
  • For installation in a Duofix system wall in front of solid or drywall construction.
  • For installing in a load bearing stud wall.
  • For mounting in front of a solid or drywall construction (order PreWall brackets 111.844.00.1 separately).
  • For a screed of 0–200 mm (not in room height applications).
  • 111.622.00.1 - For mains fed water supply (note: Geberit urinal controls need a minimum one bar supply).
  • 111.623.00.1 - For tank fed water supply with a dedicated source only (note: Geberit urinal controls need a minimum one bar supply).
  • For Geberit concealed urinal control.
  • Not suitable for urinals with spreaders.

Description

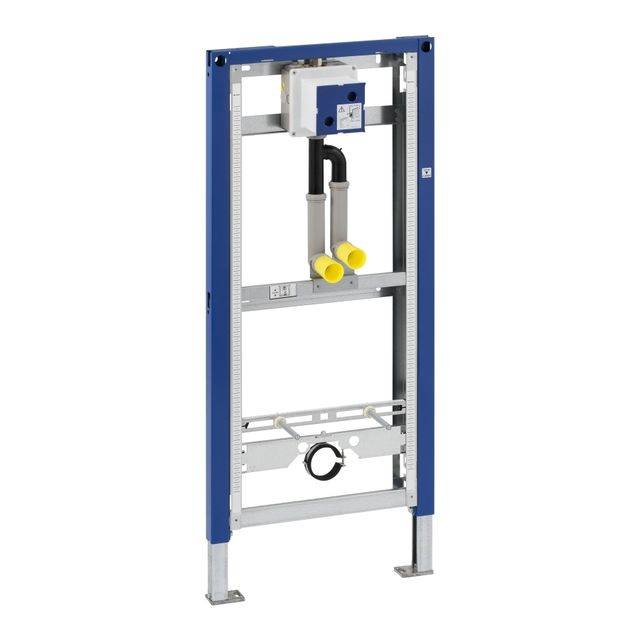

A frame system designed to support urinals behind wall panels or plasterboard, complete with all plumbing, water supply pipework and cisterns. Designed for both domestic and commercial applications.

Application:

  • For installation of wall-hung urinals.
  • For installation in a Duofix system wall in front of solid or drywall construction.
  • For installing in a load bearing stud wall.
  • For mounting in front of a solid or drywall construction (order PreWall brackets 111.844.00.1 separately).
  • For a screed of 0–200 mm (not in room height applications).
  • 111.622.00.1 - For mains fed water supply (note: Geberit urinal controls need a minimum one bar supply).
  • 111.623.00.1 - For tank fed water supply with a dedicated source only (note: Geberit urinal controls need a minimum one bar supply).
  • For Geberit concealed urinal control.
  • Not suitable for urinals with spreaders.

Characteristics:

  • Frame with holes ø nine mm for fastening in wood frame construction.
  • Galvanized leg supports, steplessly adjustable 0–200 mm.
  • Self-supporting.
  • Frame with C profile 40/ 40 mm.
  • Powder-coated frame, ultramarine blue.
  • Frame height from 1120–1300 mm, depending on urinal.
  • Terminal provided.
  • Inlet ø 32 mm, height-adjustable.
  • Fastening for urinal with M8 threaded rod, adjustable height and distance.
  • Additional fastening possible for urinal with accessories.
  • Conversion possible for urinals with spray head with accessories.

General information

Uniclass 2015

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/500 Preplumbed frame system

Specification data - Pre-plumbed installation frames

Product Reference

111.622.00.1

H130, flush pipe with pipe interrupter for mains fed water supply.

111.623.00.1

H130, for tank fed water supply.
