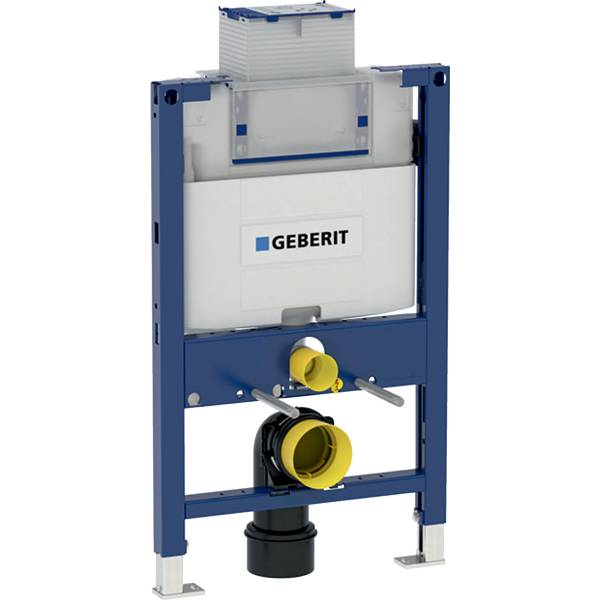

Duofix frame for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm

Application

  • For drywall construction.
  • For installation in part-height prewall installations.
  • For installation in part-height Geberit Duofix system walls.
  • For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
  • For wall-hung WCs with projection up to 62 cm.
  • For floor constructions 0–20 cm.

Description

Features and benefits:

  • Self-supporting frame, powder-coated.
  • Frame with ø 9 mm drilling holes for fastening in wood frame construction.
  • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
  • Galvanized feet.
  • Feet adjustable 0–20 cm.
  • Non-slip leg supports.
  • Rotatable foot plates.
  • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
  • Connection bend can be mounted without tools at different depths, adjustable range 45 mm.
  • Fastening for connection bend, sound-absorbing.
  • Concealed cistern with top or front actuation.
  • Concealed cistern, fully insulated against condensation.
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II.
  • Immediate post flush possible with factory setting.
  • Tool-free installation and maintenance work on concealed cistern.
  • Water supply connection on the left or rear left.
  • Protection cover box for service opening protects against moisture and dirt.
  • Protection box for service opening can be cut to length.
  • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets.
  • With fastening option for electrical connection.

General information

Color

Blue

Finish

Galvanized

Leg support.

Powder coated

Frame.

Material

Steel

Shape

Other

Width

500 mm

Height

820 mm

Uniclass

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/66 Pre-plumbed frame system

N13/500 Pre-plumbed frame system

Specification data - Pre-plumbed installation frames Enhanced data

Materials

Galvanized steel.

FlowResistanceRange

0.1–10 bar, specifier to detail.

-

MaximumOperatingTemperature

Operating temperature water.

25 °C.

Flush volume

2.6–4 L, small range. Specifier to detail.

3 L and 5.8 L.

Factory setting.
