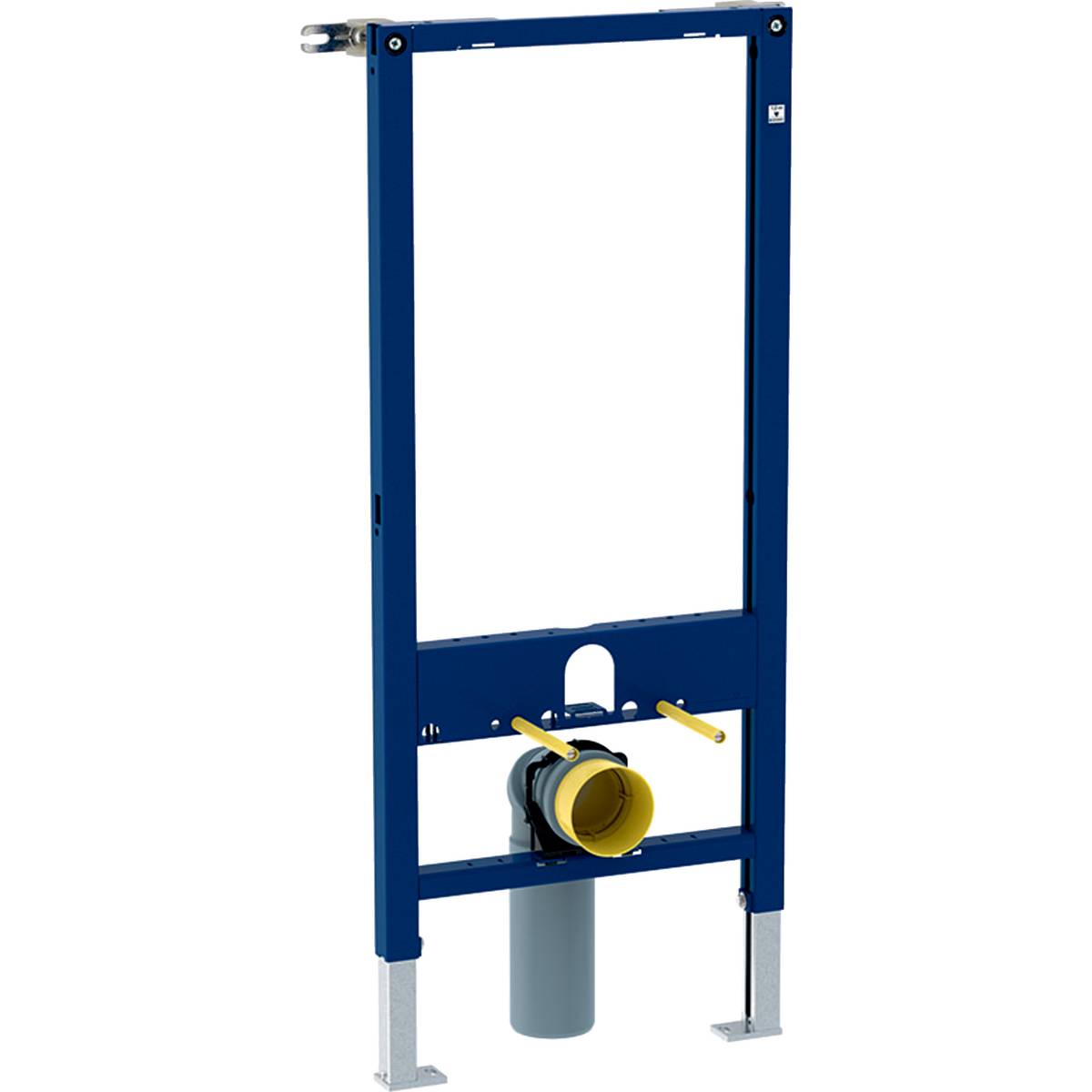

Duofix frame for wall-hung WC, 112 cm, without cistern
Wall hung WC frame, without cistern.
Application
Suitable:
- For drywall construction.
- For installation in part or room-height prewall installations.
- For installation in room-height installation walls.
- For installation in part or room-height Geberit Duofix system walls.
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
- For wall-hung WCs with projection up to 62 cm.
- For floor constructions 0–20 cm.
Description
Wall hung WC frame, without cistern.
Features and benefits:
- Self-supporting frame, powder-coated.
- Frame with ø 9 mm drilling holes for fastening in wood frame construction.
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
- Galvanized feet.
- Feet adjustable 0–20 cm.
- Non-slip leg supports.
- Rotatable foot plates.
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm.
- Rotatable connection bend for connection piece for horizontal outlet to the rear.
- Fastening for connection bend, sound-absorbing.
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame.
Scope of delivery:
- Set of wall anchors for single and system installation.
- Connection set for WC, ø 90 mm.
- Connection bend 90° made of PVC, ø 90 / 100 mm.
- Protection plug.
- Two threaded rods M12.
- Fastening material.
General information
Height | 1120 mm |
Width | 500 mm |
Finish | Powder-coated |
Shape | Rectangle |
SizeHeight x width x thickness. | 1120 x 500 x 40 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
Specification data - Pre-plumbed installation frames
Form | Support frames without cistern. |
SizeHeight x width x thickness. | 1120 x 500 x 40 mm. |
Accessories | Not required.Geberit Duofix set of wall anchors for single and system installation.Geberit Duofix fastening set for stud clearance 50–57.5 cm.Geberit concealed outlet for drywall and solid wall construction.Geberit Duofix set of foot extensions for floor construction 20–40 cm.Geberit set of support brackets for WC ceramic appliances with small contact surfaces.Geberit Duofix set of wall anchors for single installation.Geberit Duofix set of wall anchors for single installation, corner construction.Reinforcing sheet for drywall construction, for Geberit Duofix frame for wall-hung WC, width 50 cm. |
