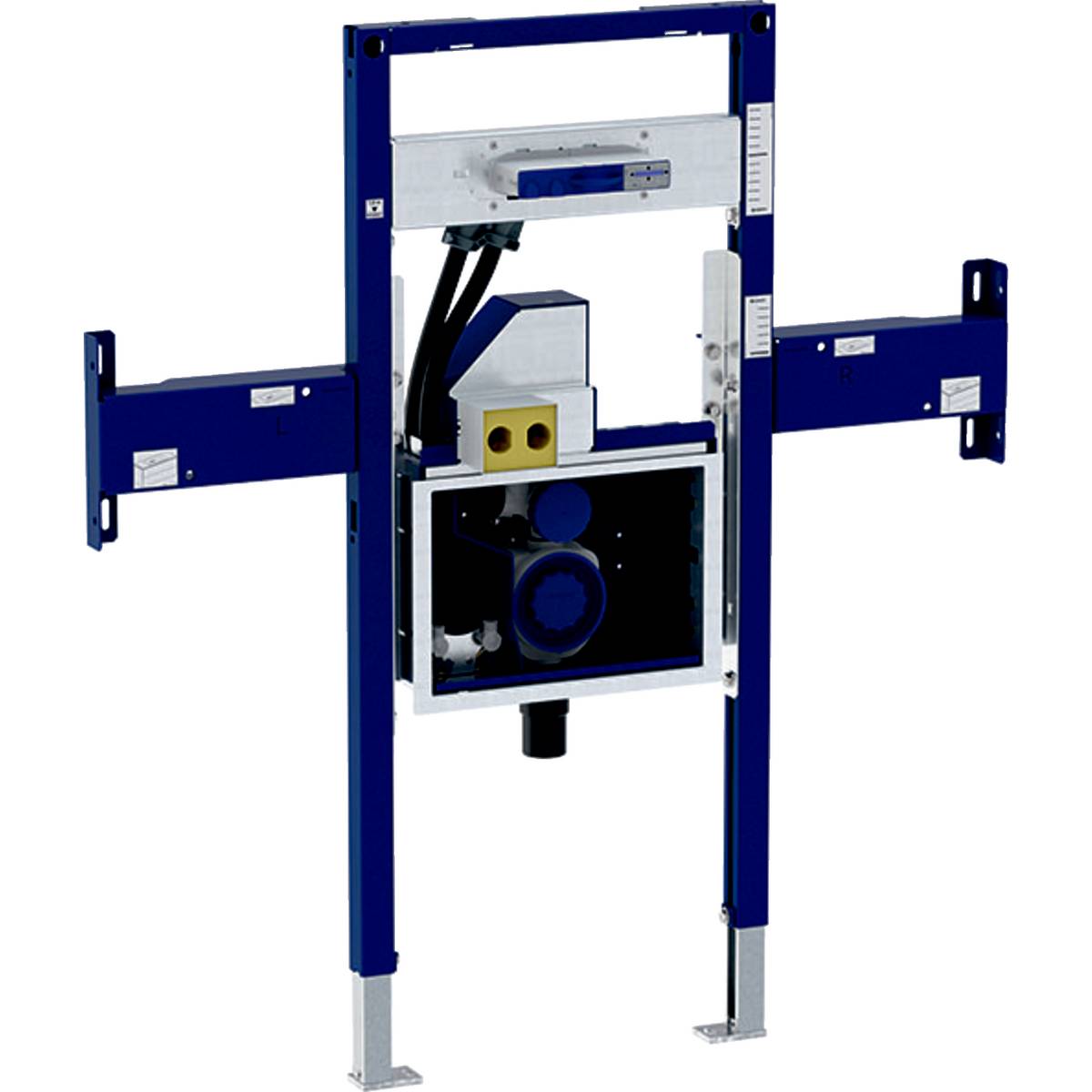

Duofix Frame for ONE washbasin and ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou
Verified by manufacturer over a year ago
111.093.00.1, Duofix Frame for ONE washbasin and ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou: B=110cm, Washbasin width=105cm, H=112–130cm, T=12cm
111.093.00.1, Duofix Frame for ONE washbasin and ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou: B=110cm, Washbasin width=105cm, H=112–130cm, T=12cm
Concealed frame for Geberit ONE basins and Geberit ONE wall mounted taps.
Application
- For drywall construction.
- Suitable for less-abled installation.
- For installation in part-height prewall installations.
- For installation in part-height Geberit Duofix system walls.
- For Geberit ONE wall-mounted taps.
- For floor constructions 0–20 cm.
- For Geberit ONE vanity basins.
- For Geberit ONE washbasins.
Description
Duofix Frame for ONE washbasin and ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou, is a self-supporting powder-coated frame, suitable for use with the Geberit ONE range. The frame has ø 9 mm drilling holes for fastening in wood frame construction, galvanized feet adjustable 0–20 cm, non-slip leg supports and rotatable footplates.
Features and benefits:
- Footplate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
- Pre-mounted connection pipes between concealed housing and fastening for wall-mounted tap.
- In-wall cabinet with straight connector made of PE, ø 50/ 56 mm.
- Concealed housing for Geberit ONE washbasin tap, pre-mounted.
- Water supply connection compatible with MasterFix and MeplaFix.
- Water supply connection on the bottom of concealed housing.
- Shut-off unit integrated in the concealed housing.
- Pre-mounted fastening for wall-mounted tap.
- Outlet mounting box in concealed housing.
- Concealed turn trap with service opening.
- Tap crossbar height-adjustable.
System components:
- Two consoles.
- Protection covers.
- Fastening material.
- Two threaded rods M10.
- Female socket for mains connection.
General information
Color | Blue |
Finish | Powder coated |
Shape | Other |
Length | 1120 mm 1300 mm |
Width | 800 mm 950 mm 1100 mm 1250 mm |
Height | 120 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
Specification data - Pre-plumbed installation frames
Form | Support frames, for 105 cm wide ONE washbasin. |
Size | 1100 x 105 x 1120–1300 mm. |
Accessories | 115.420.11.1, Ready-to-fit set for Geberit ONE washbasin, floating design white alpine.115.420.DW.1, Ready-to-fit set for Geberit ONE washbasin, floating design white alpine jet black RAL 9005.111.848.00.1, Duofix set of foot extensions for floor construction 20–40 cm. |
