NBS Source

Application

  • School playgrounds.
  • Public buildings.
  • Schools.
  • Car parks.
  • Business parks and retail premises.

Description

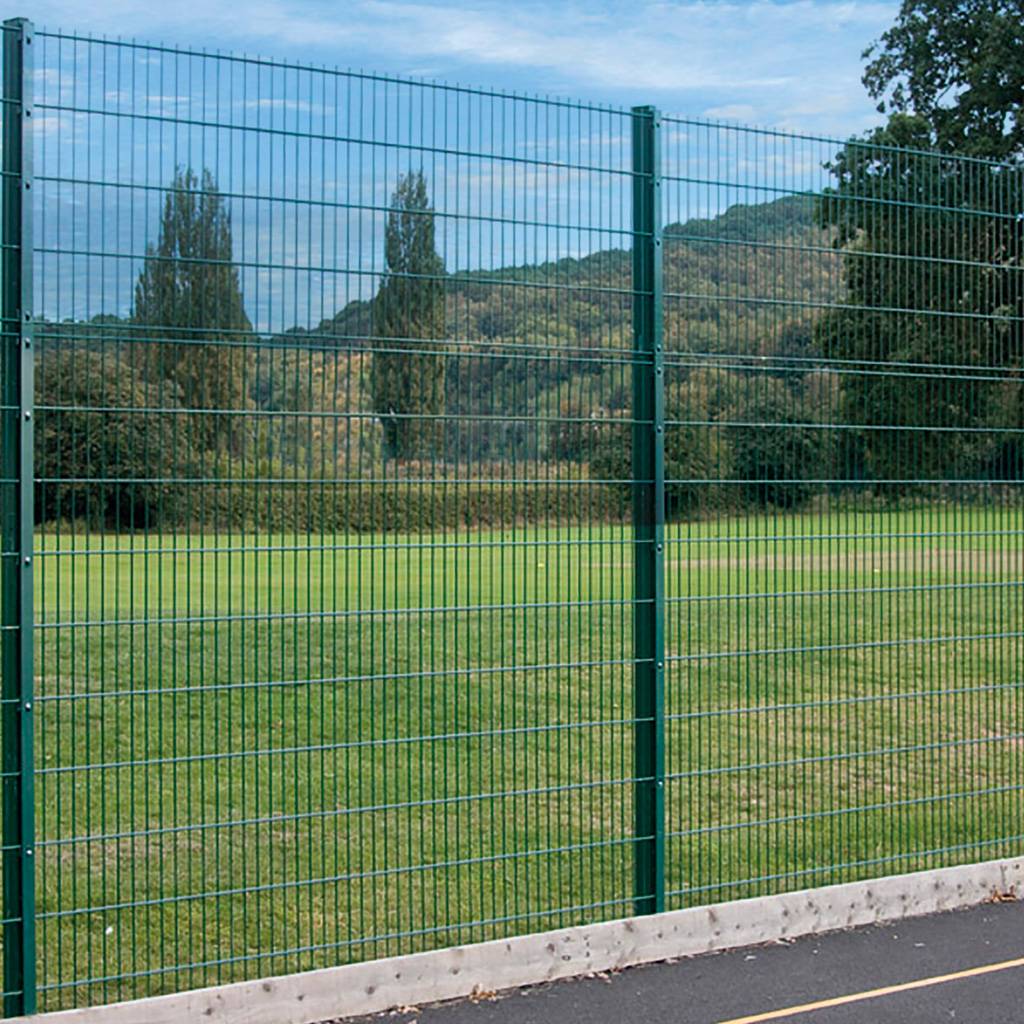

The Dulok-6 Double Wire welded steel, wire mesh perimeter security panel system is a cost effective system with added security. This system is similar to the standard Dulok system but has the added benefit of 3 m wide panels and 5/6 mm wire diameters.


This system is also designed to take the Active anti-intruder topping which is essential for stopping any entry from the top.


Features:


  • Anti-cut-through, double wire panels.
  • Range of height options.
  • Secured by Design accredited system.
  • RAL colours available.
  • Conforms to BS 1772-14.

General information

Finish

Powder-coated

Galvanized

Material

Steel

WarrantyDescription

15 year

Uniclass

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Q40/430 Proprietary fencing

Specification data - Metal mesh panel fencing systems

System performance

Anti-intruder and security fencing performance.

Standard

To BS 1722-14.

Posts

Rectangular hollow section (RHS), hot dip galvanized and polyester powder coated with 40 x 5 mm flat clamp bars (finished to match post).

Fence topping

Not required.

Barbed wire.

Double mesh cranks.

Razor wire, coiled.

Product Reference

Dulok-6 SR1™

Height

1830 mm.

2030 mm.

2430 mm.

3030 mm.

1830 mm.

Show more

Width

2506 mm.

3000 mm.

Colour/ Finish

Galvanized and powder coated green RAL 6005.

Standard colour.

Galvanized and powder coated RAL.

Insert colour requirements from RAL range.

Mesh size

200 x 50 mm.

WireDiameter

5 mm verticals, 2 x 6 mm horizontals.

Top edge protection

30 mm.

Fasteners

M8 x 40 security screws.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library
