Duct System: Corian Ducting 13 mm
Verified by manufacturer 3 months ago
Duct panelling system with timber framework.
Application

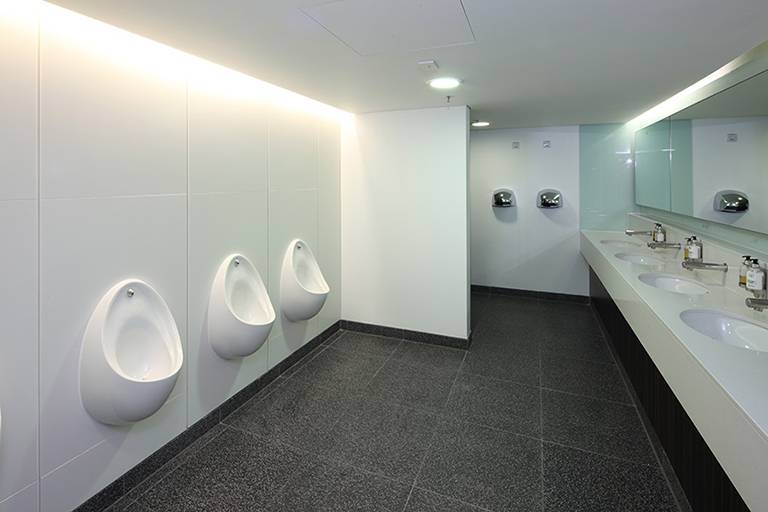

Suitable for public washrooms.
Description
Features and benefits:
- Corian duct panels manufactured from 13 mm Corian solid surface material.
- Bonded to a substrate with the edges also lipped in Corian.
General information
Color | Manufacturer guidanceTo be confirmed from WW standard range. |
Finish | Manufacturer guidanceVarious options available. |
Material | Corian Manufacturer guidance13 mm Dupont Corian solid surface, the edges of the panels are also lipped in Corian |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Manufacturer guidanceFrom practical completion |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only |
Specification data - Duct and wall panel lining systems
Panels | Depends on specification of sanitaryware. |
Fasteners | Supplied complete with corresponding flashgap laminate and Hafele push on/ lift off brackets. |
Supporting frame | |
Duct panels | Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header. |
Wall panels | Assembled frames constructed from 60 x 40 mm treated softwood complete with plywood skirting and header. |
Flash gap panels | 1 mm HPL flashgap bonded to framework. |
Product Reference | Concerto Duct Panelling System (Corian Ducting 13 mm) |
Edge treatment | Lipped with Corian. |
Colour | Manufacturer guidanceTo be confirmed from WW standard range. |
Sustainability data
Country of material origin | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
