Description

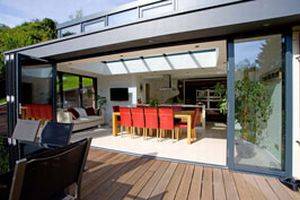

Aluminium sliding folding doors, of 2–7 leaves, in left or right hand sliding and swing opening configurations.

Features:

  • Leaf size (w x h, maximum): 1000 x 2283 mm.
  • Leaf weight (maximum): 100 kg.
  • Open in and open out variants.
  • Multipoint locking system; slim sight lines; low threshold cill option.
  • Stainless steel track and wheels giving easy glide operation.
  • Thirty six different sliding/ opening configurations; maximum overall width 6200 mm.
  • Trickle ventilators.

Performance:

  • Open out - Tested to BS 6375-1: 2004: Class 7a (600 Pa) Water Tightness; Class 4 (600 Pa) Air Permeability; Class 4 (1600 Pa) Wind Resistance.
  • Open in - Tested to BS 6375-1: 2004: Class 3a (150 Pa) Water Tightness; Class 4 (600 Pa) Air Permeability; Class 4 (1600 Pa) Wind Resistance.
  • With low threshold sill - Tested to BS 6375-1: 2004: Class 2a (50 Pa) Water Tightness; Class 1 (150 Pa) Air Permeability; Class 2 (800 Pa) Wind Resistance.

General information
Size

Insert requirements.

Finish

Anodized

To BS 3987.To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Features

Leaf size (w x h, maximum): 1000 x 2283 mm

Leaf weight (maximum): 100 kg

Open in and open out variants

Multipoint locking system; slim sight lines; low threshold cill option

Stainless steel track and wheels giving easy glide operation

Thirty six different sliding/ opening configurations; maximum overall width 6200 mm

Trickle ventilators

Uniclass 2015
Sliding door and partition sets (Pr_30_59_24_80)Primary
Specification data - Sliding door and partition sets
Product Reference

Dualfold Sliding Folding Door

Size

Insert requirements.

Leaves -
Swing

Not required

In, left hand

In, right hand

Out, left hand

Out, right hand

As drawing

As schedule

Finish

Anodized

To BS 3987.To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Glazing

24 mm

28 mm

32 mm

Accessories

None

Magnetic catch for swing leaf

Pull handle

Low threshold sill

Product Options

Leaves:

- Number of folds:

Insert number, 2–7, or insert configuration reference from manufacturer's literature.

Glazing:

24, 28 or 32 mm as standard. Insert details of glass and spacer dimensions, emissivity, safety and solar control.
