DSSB

Description

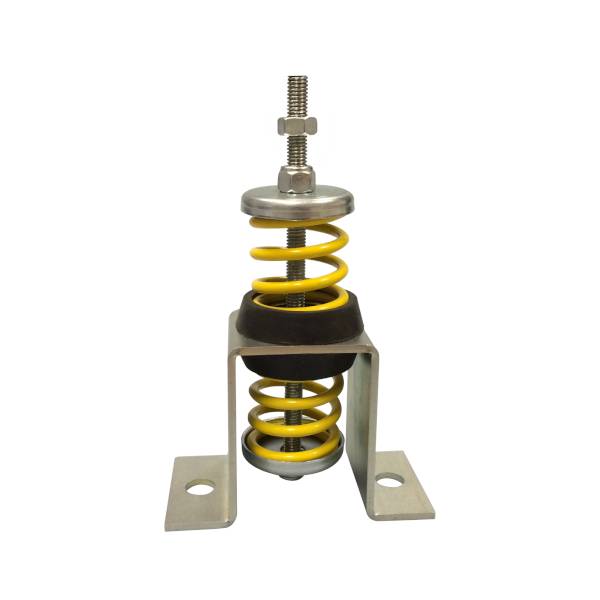

The DSSB Double Spring Sway Brace/Slam Wall Isolator is a specially designed product. This product is particularly suitable for resiliently mounted slam/rebound walls that are subject to impact loads. The double spring arrangement allows for both compression and tension loads to be absorbed, and to allow the wall to rebound effectively to absorb the impact forces. The springs are pre-compressed, giving good static vibration isolation characteristics too. The DSSB can be used for any application where there will be an impact force on a wall or vertical surface. They can also be used as a horizontal tie for vertical pipework. Typical variants have load capacities ranging from 51kg up to 95kg. Additional capacities are available if required.

General information

Features

Useful for mounted slam walls, rebound boards that are subject to impact loads, braces provide bi-directional isolation against impact loads, superior impact isolation compared to an equivalent rubber isolator

Material

Steel

Size

120 x 140 x 55 mm

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
