All in one hand dryer, soap and water solution.
All in one hand dryer, soap and water solution.

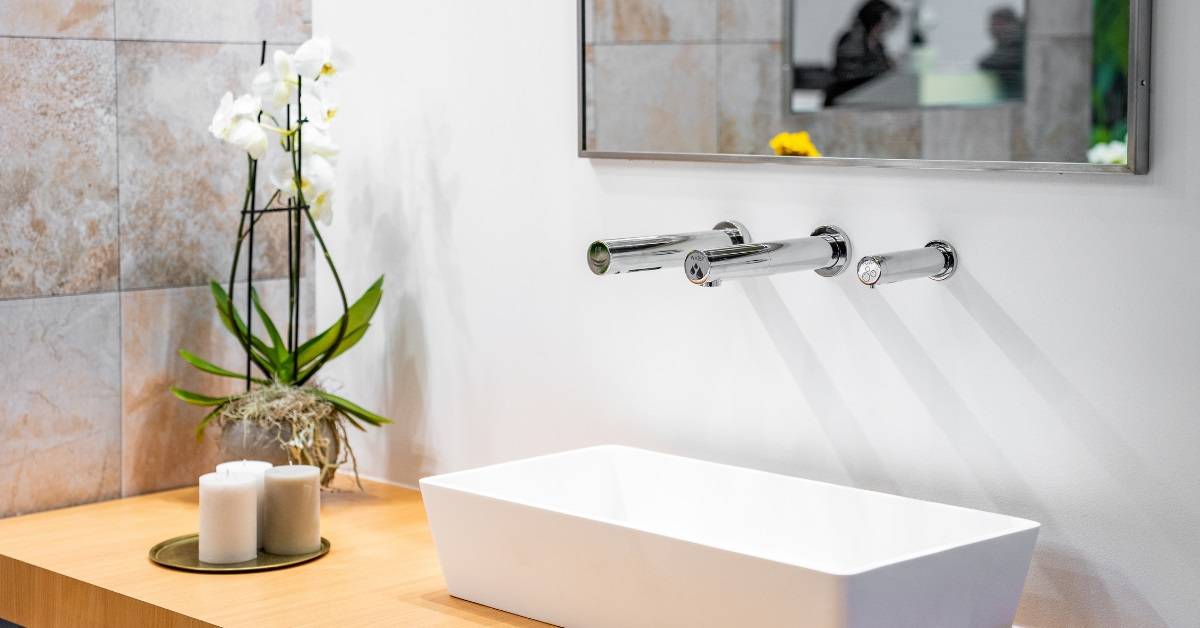

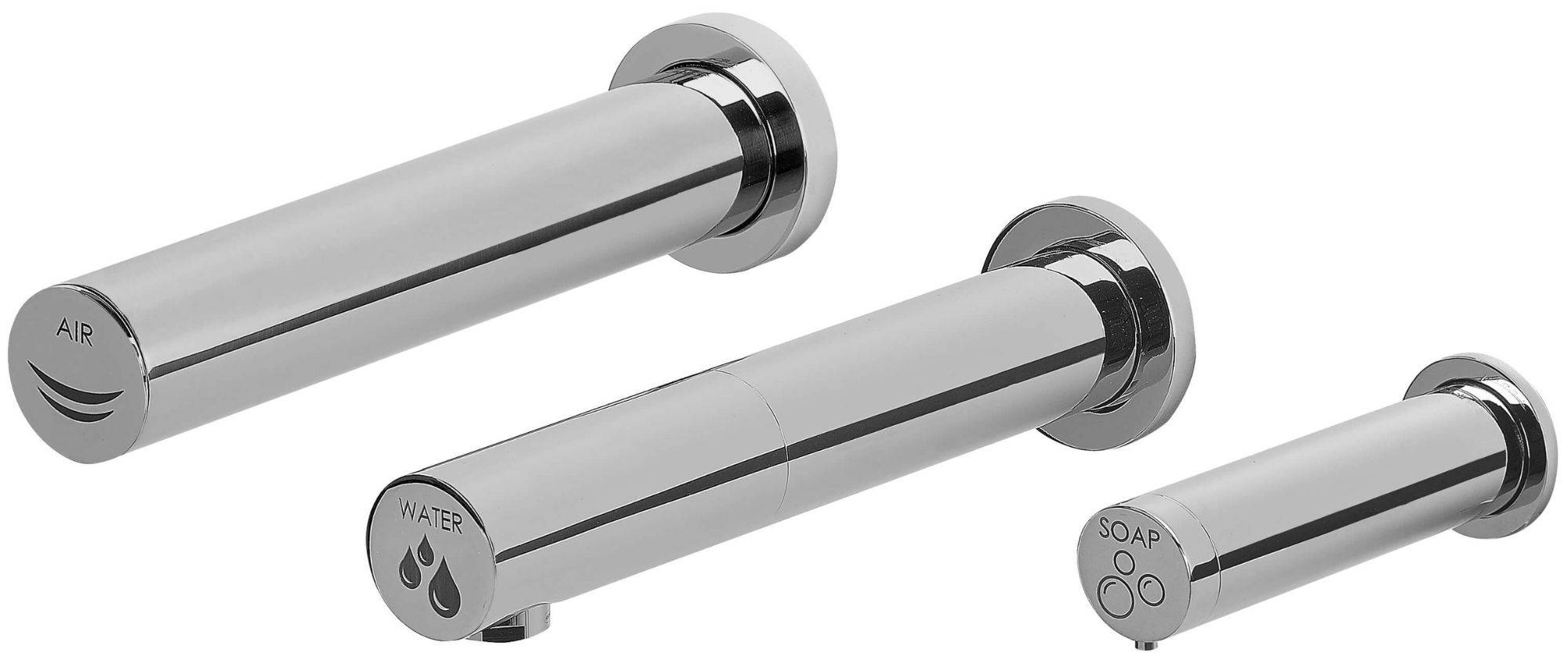

An “All-in-one” touch-free, hygienic and highly efficient solution or can be specified as individual standalone accessories. This is a wall mounted, over the sink hand dryer, a water tap and soap dispenser.
Features and benefits:
Optional hygienic extras include a HEPA media filter, “Ion Hygienic” technology and an air-freshener tablet.
Hand dryer:
Automatic Water faucet:
Automatic soap dispenser:
Color | Silver |
Finish | Polished |
Material | Brass Stainless steel |
Shape | Other |
Length | 230 mm |
Width | 40 mm |
Height | 60 mm |
Warranty description | Three year |
Uniclass | |
CAWS | N13/472 Hand dryers N13/335 Washbasins N13/30 Washbasins |
Product range |
Form | |
Tap | Automatic-action thermostatic mixer taps. |
Hand dryer | High-velocity air. |
Operation | |
Tap | Automatic. |
Hand dryer | Automatic. |
Timer | Fixed. |
Flow rate (maximum) | 5 L/min. |
Electrical supply | |
Power rating | 0.42 - 1.5 kW.Guidance for specification option: Internal on / off heater switch & adjustable motor speed. |
Rated operational voltage (Ue) | 220 - 240 V. |
Frequency | 50/60 Hz. |
Noise level at 1 m (maximum) | 67 - 72 dB. |
Body | |
Material | Stainless steel. |
Finish | Polished chrome. |
Colour | Silver. |
Ingress protection (minimum) | IP23. |
Dimensions | 230 x 40 x 60 mm. |
Air speed | 248 MPH. |
Operating temperature range | At ambient temperature, (25°C) - 42°C. |
Cable entry | Rear entry with access available from bottom. |
Third-party certification | CE, ROHS, TUV-GS certified. |
Sensor | 5 - 25 cm. Guidance for specification option: Sensor range. |
Container capacity | 1.5 L. |
Water pressure | 0.5 - 8 bar. |
Air flow | 50-105 m³/h. |
Velocity | 190 - 400 Km/h. |
Country of material origin | Spain |
Country of product manufacture | Spain |
Recyclability | Three-step process to keep any of the product out of landfill. The product can be returned to the manufacturer for free to repair, keeping the product working and reducing waste. If unrepairable the product is stripped down and all possible components are re-used. Any unusable waste is added to the circular economy and the best recycling partners are found for the remaining materials. Guidance for specification option: End of life zero waste management via Intelligent Facility Solutions Infinity Life Project. More information here https://www.intelligenthanddryers.com/aftercare-i36 Manufacturer guidance100% Recyclability |
