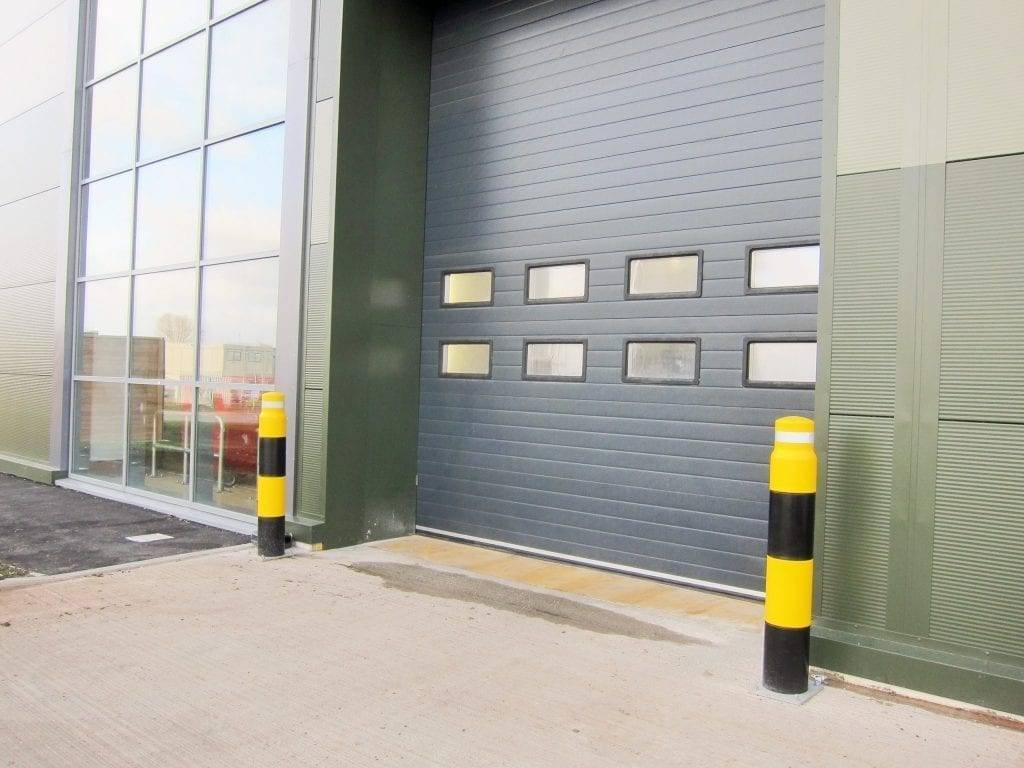

Drop Core Bollard
Description

A bollard system that enables the user to lift out, remove and or replace bollard cores without the need for excavating; available in heavy and super duty variants.

Features and benefits:

  • Cast-in steel floor socket for superior strength.
  • Demountable cores simply lift out and drop back in.
  • Avoids costly excavating and casting-in potted bollards.
  • Choice of cover kit colour schemes including 50 mm reflective band for night time visibility.
  • Heavy duty specification: 168 mm diameter steel - 210mm diameter overall, 1260 mm above ground height.
  • Super duty specification: 219 mm diameter steel - 260mm diameter overall 1560 mm above ground height.

General information

Color

Yellow and black

Size

210 x 1260 mm

Uniclass 2015

Pr_20_76_08_10 Carbon steel bollardsPrimary
Specification data - Carbon steel bollards

Uniclass 2015 Title

Carbon steel bollards

Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
