Application

Suitable for household showering areas.

Description

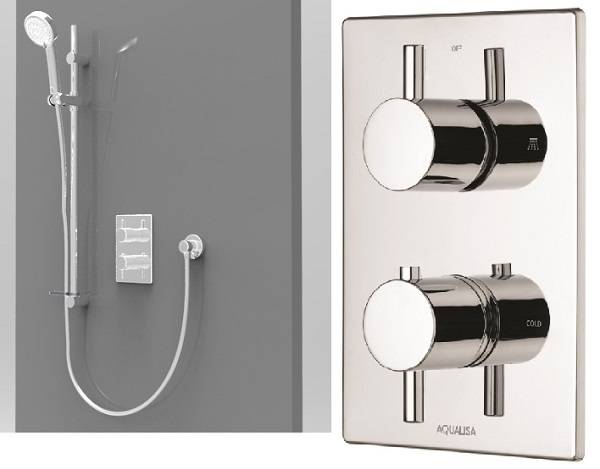

Dual control valve mixer shower with adjustable and drencher shower heads.

Features and benefits:

  • Sleek, striking design.
  • Versatile.
  • Excellent performance.
  • Slimline concealed valve.
  • Includes a temperature override button for extra safety.
  • Drencher and adjustable shower heads include easy clean nozzles to help reduce limescale build-up.
  • Anti-twist hose connector.
  • Adjustable rail fitting.
  • Single or dual outlet shower systems.
  • Harmony™ head with a choice of four spray patterns (inner, middle, outer, and eco).
  • The ‘Eco’ spray setting saves up to 25% water without compromising performance.
  • Separate flow and temperature control.
  • Suits high pressure, combination boiler and boosted gravity water systems.
  • Five-year guarantee.
  • Matching shower/ bath filler models available (specified separately).

Applications:

Suitable for household showering areas.

General information
Finish

Chrome

Uniclass 2015
Shower fittings package (Pr_40_20_87_75)Primary
Specification data - Shower fittings package
Product Reference

Dream™ DCV - DRMDCV001

Mixer shower with adjustable head.

Dream™ DCV - DRMDCV002

Mixer shower with wall fixed drencher.

Dream™ DCV - DRMDCV003

Dual outlet mixer shower with adjustable head and wall fixed drencher.

Accessories

None

Easy fit ceiling arm assembly - 910377

For drencher. Chrome finish.

Standard product features

Finish:

Chrome.

Shower head:

  • 105 mm diameter Harmony™ head with four spray patterns (not supplied with DRMDCV002).
  • 250 mm diameter fixed drencher head with a 400 mm arm (DRMDCV002 and DRMDCV003 only).

Control plate size (h x w x d):

200 x 140 x 50–65 mm. Includes 25 mm levers which can be inserted if required.

Valve:

  • Inlet centres: 140 mm.
  • Inlet fitting connections: 3/4" BSP female inlet connections (suitable fittings required).
  • Inlet supply positions: Hot/ left, cold/ right.
  • Outlet connections: 3/4" BSP female connections (suitable fittings required).

Rail length (not supplied with DRMDCV002):

865 mm.

Hose length (not supplied with DRMDCV002):

1.5 m.

Pressure requirements:

1–5 bar (static).

Supply temperature:

  • Cold: 5–20°C.
  • Hot: 55–65°C.
