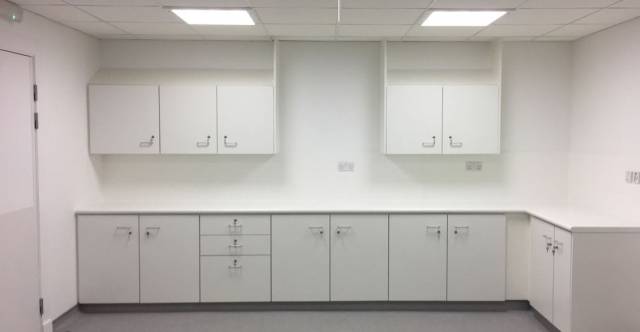

DrawLine Base Unit

Verified by manufacturer over a year ago

D/L Base Unit - 1 Door 1 Drawer

Nu-Style Products Ltd Variant:

Door and Drawer Base unit in a range of sizes.

Jump to:
BOS
+44 (0)1224 823000 Website

Application

Healthcare:

  • Hospitals.
  • Doctor's surgery.
  • Dental practice.
  • Veterinarian practice.
  • Private clinics.


Educational:

  • Schools.
  • Nurseries.
  • Daycare.


Commercial:

  • Offices.
  • Shops.
  • Airports.

Description

D/L Base Unit - Door and Drawer in a range of sizes.


Features and benefits:

  • Supplied fully assembled.
  • 2 mm high impact edging or 1 mm sleek edging (depending on the area and use).
  • Material 18 mm melamine-face chipboard (MFC) and/ or 20 mm medium density fibreboard (MDF) with high-pressure laminate (HPL) for doors.
  • One handle per drawer and door.
  • Pair of runners and hinges per drawer and door.
  • One lock per drawer and door if required.
  • One adjustable shelf.
  • Four adjustable feet.
  • Available in a wide range of colours.
  • Compatible with other products in the Nu-Style.


Custom design of Drawer Base unit available by request.

General information

Color

Other

Guidance for specification option:

Available in a wide range of colours, contact manufacturer for details.

Beige

Black

Blue

Bronze

Show more

Finish

Laminated

Guidance for specification option:

Melamine-faced.

Material

MFC

High pressure laminate (HPL)

Length

560 mm

Bespoke

Width

300 mm

350 mm

400 mm

450 mm

500 mm

Show more

Height

768 mm

Bespoke

Warranty description

Ten year

Uniclass

Pr_40_30_87_46 Laboratory storage unitsPrimary

CAWS

N10/135 Storage and display units

N10/130 Laboratory furniture

N11/310 Fitted base units

N11/320 Fitted wall units

N11/10 Fitted base units and wall units

Specification data - Laboratory storage units

Form

Floor mounted cupboard units.

Dimensions

768 x 300 x 560 mm.

768 x 350 x 560 mm.

768 x 400 x 560 mm.

768 x 450 x 560 mm.

768 x 500 x 560 mm.

768 x 550 x 560 mm.

768 x 600 x 560 mm.

Material

18 mm-thick melamine-faced chipboard (MFC).

Guidance for specification option:

Swiss Krono; square edged/ lipped with 2 mm-thick polyvinyl chloride (PVC).

20 mm-thick high-pressure laminate (HPL).

Guidance for specification option:

18 mm-thick moisture resistant medium density fibreboard (MDF) with high-pressure laminate on both sides. Square edged/ lipped with 2 mm-thick acrylonitrile butadiene styrene (ABS).

Finish

Melamine-faced, laminate.

Colour

-

Manufacturer guidance

Available in a wide range of colours, contact manufacturer for details.

Plinth

100 mm.

Guidance for specification option:

Height.

Shelf

One.

Hardware

Lock is optional, handle, soft close Hinges, three types of drawer runners - Single walled runners - Double walled runners - Ball bearing runners with drawer box.

Number of drawers

One.

Doors

One.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit

Revit 2017

1
