Drawer Runner - SPACE STEP - Plinth solution

Name: Drawer Runner - SPACE STEP - Plinth solution
Brand: Blum UK
SKU: hBSBaDQWLBtsp87ABh4JJP

Verified by manufacturer 4 months ago

Blum UK

Third party certifications:

FSC
Certificate type
ISO 14001:2015
Certificate type
ISO 9001:2015
Certificate type

Plinth solution which can be implemented with most Blum box and runner systems

Jump to:

+44 (0)1908 285700 Website

Application

The following box or runner systems can be fitted under SPACE STEP:

LEGRABOX heights N, M, K
MERIVOBOX in heights N, M, K
TANDEMBOX in heights N, M, K
MOVENTO
TANDEM

Description

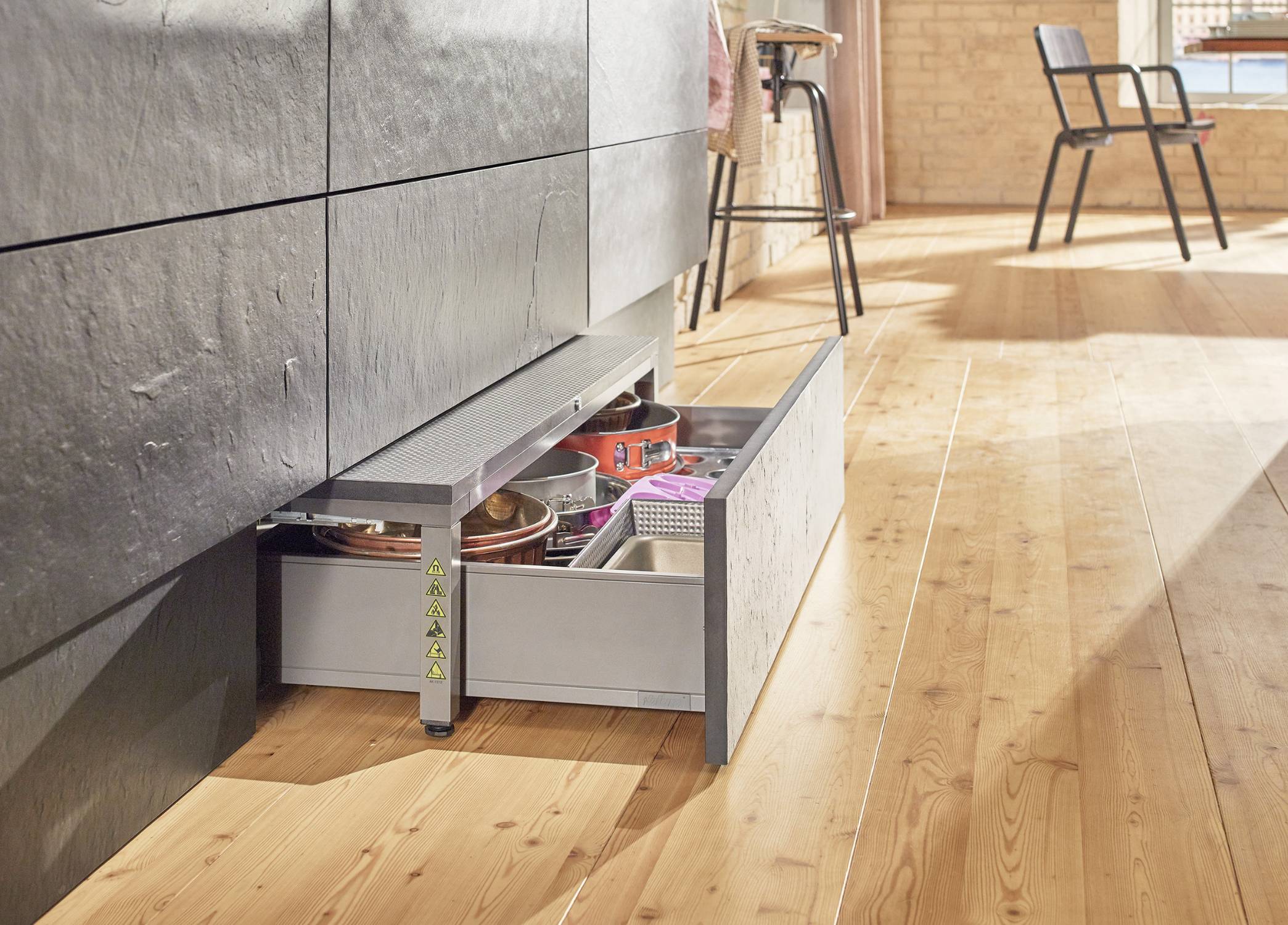

Blum SPACE STEP plinth solution. Made in Austria.

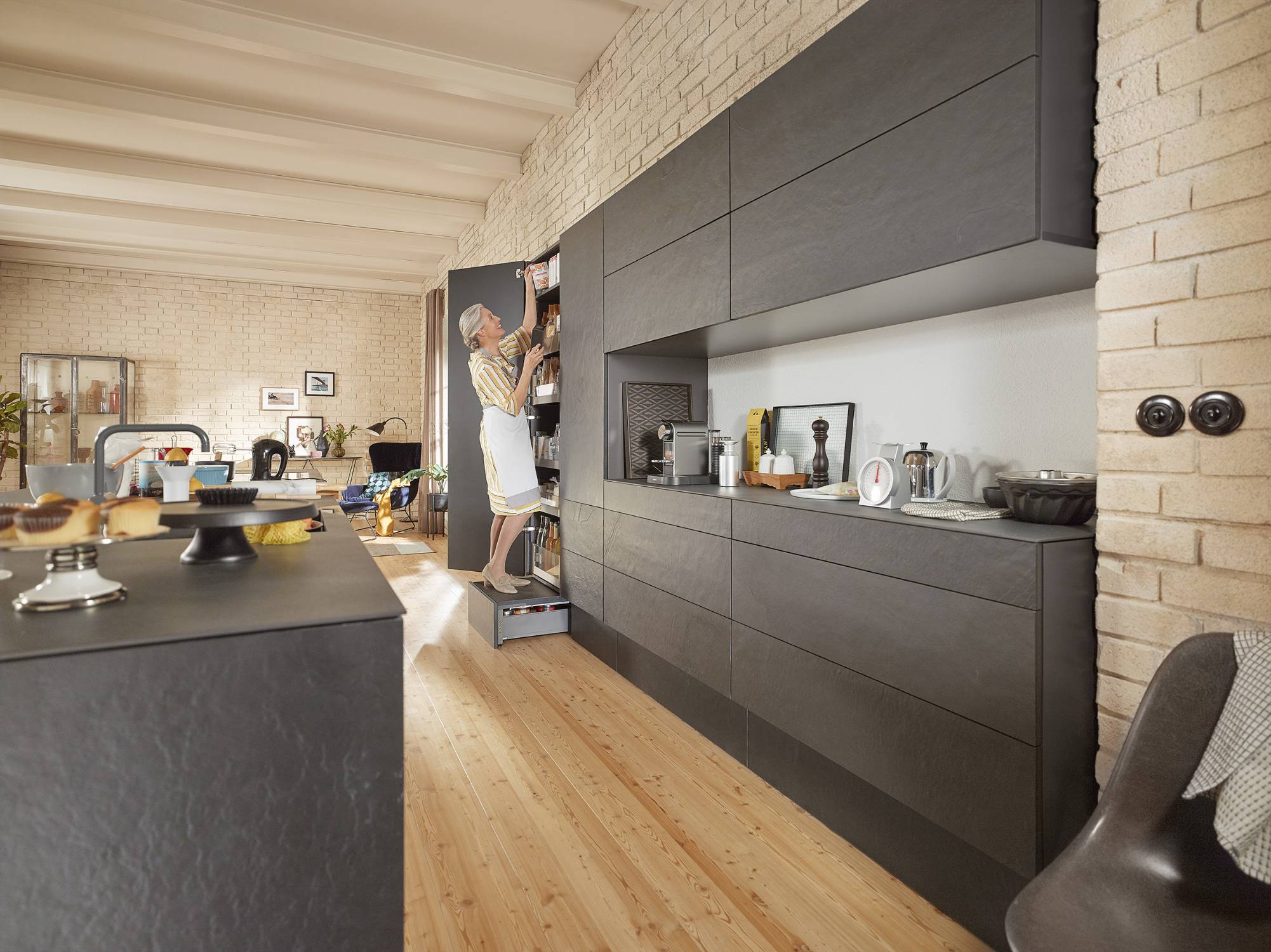

Enables access to the next storage level up in wall cabinets. Can be used with BLUMOTION, SERVO-DRIVE, TIP-ON BLUMOTION and TIP-ON motion technologies. Creates additional storage space in the pull-out underneath the SPACE STEP.

Activated by a weight of just 8 kg, the anti-slip system securely locks SPACE STEP in position when extended. The step surface can take a maximum load of 150 kg, provided the construction is suitable.

Features and benefits:

Can be implemented with all motion technologies
Can be implemented with all Blum box and runner systems
Different types of cabinet design.

General information

Color	Grey
Finish	Matt
Material	Steel Nylon
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
WarrantyDescription	Lifetime

Uniclass	Pr_30_36_36_24 Drawer runnersPrimary
CAWS	N10/135 Storage and display units N10/10 Purpose-made N10/110 Purpose-made

Specification data - Drawer runners

Form	SPACE STEP set Nylon/steel NL=410 mm. SPACE STEP set Nylon/steel NL=460 mm. SPACE STEP Cross profile Aluminium L=1040 mm.
Material and finish	Nylon and steel.
Colour	Orion grey matt.
