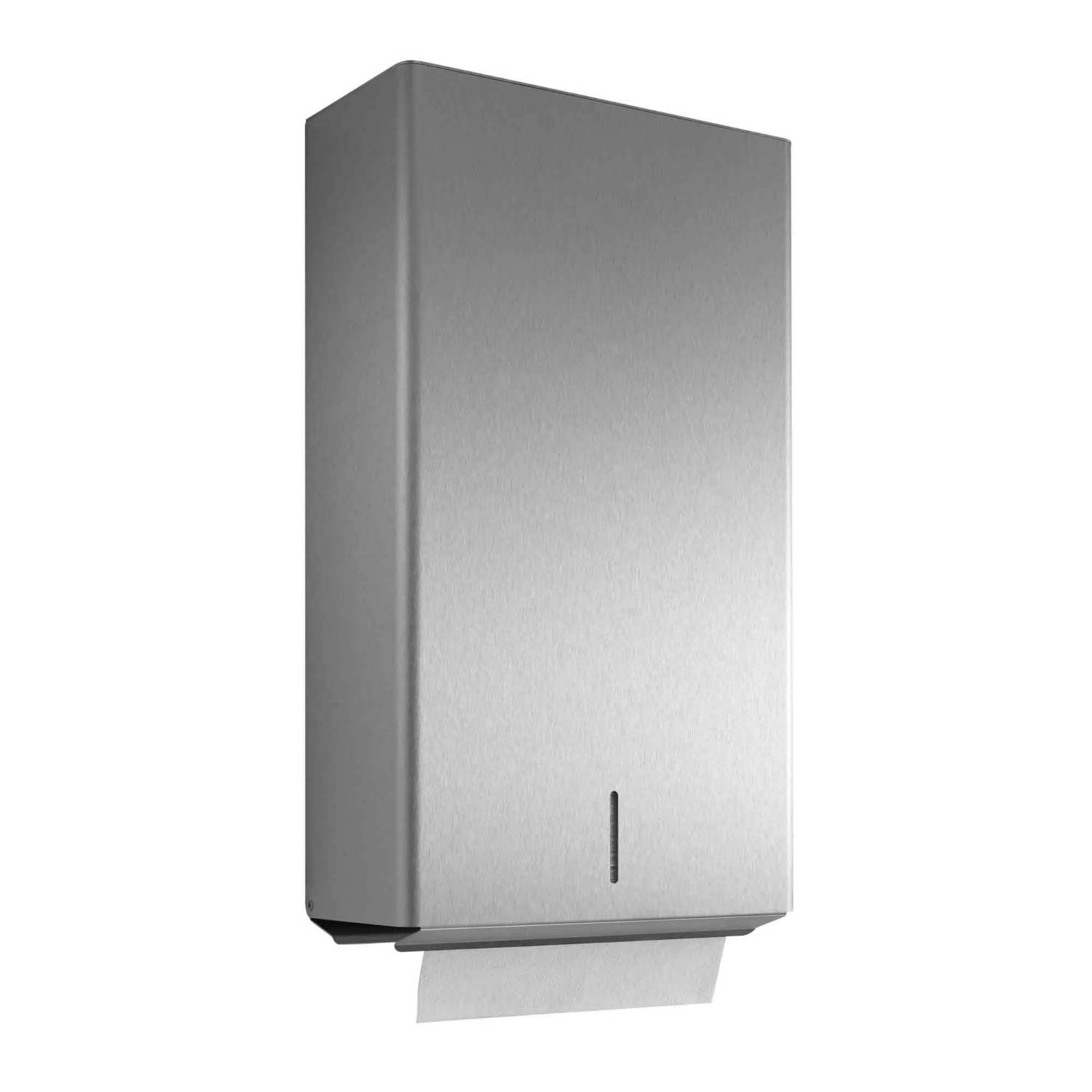

DP3103 Dolphin Prestige Paper Towel Dispenser
Verified by manufacturer 3 months ago
A wall mounted, large capacity, chrome nickel steel, paper towel dispenser.
Application
Suitable for washroom applications.
Description
A wall mounted, large capacity, chrome nickel steel, paper towel dispenser.
Features and benefits:
- Robust, easy to clean.
- Rounded vertical corners.
- Inspection slot to indicate refill level.
- Housing door swings down for refilling.
- Easy to clean due to optimum accessibility.
- Dispenser lockable with cylinder lock, fitted on the top.
- Simple mounting: line up with tiles and fasten with four screws.
- Full metal housing in stainless steel 1.4301 (304), satin finished.
- Complies with SKA rating criteria.
General information
Color | Grey Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: Grade 1.4301 (304). |
Shape | Rectangle |
Width | 265 mm |
Height | 448 mm |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Wall mounted. |
Towels | |
Towel type | Folded. |
Width | 265 mm. |
Materials | |
Body | Stainless steel, grade 1.4301 (304). |
Finish and colour | Satin silver. |
Operation | Pull out. |
Projection | 120 mm. |
Capacity | 750. Manufacturer guidancePaper towel. |
Dimensions | 448 x 265 mm. Guidance for specification option: Height x width. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
