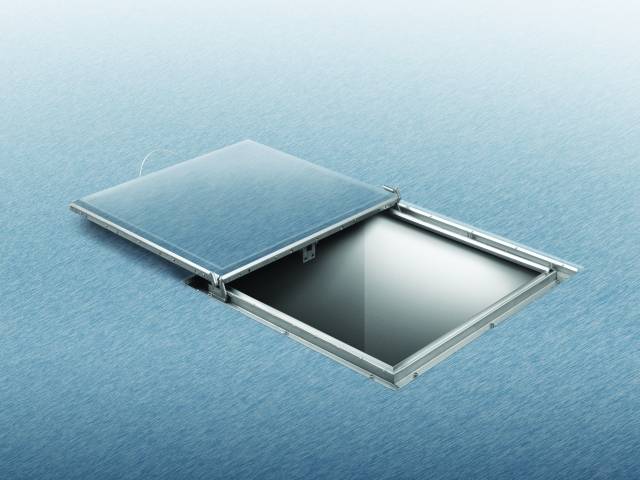

Double Sealed Sliding Access Cover
Description

Double Sealed Sliding Access Cover provides access to inspection chambers and service ducts within buildings, where sheet floor covering is used. A watertight joint formed between the sheet floor covering and the edge of the frame, prevents water from seeping into the structure.

Features:

  • Hygienic: No holes, recesses or dirt traps.
  • Air tight: Double sealed by closed cell neoprene gaskets to meet all current Building Regulations.
  • Safe: All edges of floor material are securely clamped in position by concealed clamp strips with no steps or exposed edges.
  • Unobtrusive: When installed only a 50 mm wide stainless steel clamping frame is visible.
  • Vandal Resistant: Cover is removable only after loosening several screws.
  • Easy open sliding mechanism can be opened and closed safely by one person.

General information

Features

Hygienic: No holes, recesses or dirt traps

Air tight: Double sealed by closed cell neoprene gaskets to meet all current Building Regulations

Safe: All edges of floor material are securely clamped in position by concealed clamp strips with no steps or exposed edges

Unobtrusive: When installed only a 50 mm wide stainless steel clamping frame is visible

Vandal Resistant: Cover is removable only after loosening several screws

Show more

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

R12/471 Access covers and frames

Specification data - Access covers and frames

Product Reference

Double Sealed Access Cover

Type

RS231

450 x 450 clear opening size.

RS231H

450 x 450 clear opening size with Pin Torx screws for security applications.

RS232L

450 x 600 clear opening size.

RS232LH

450 x 600 clear opening size with Pin Torx screws for security applications.

RS232W

600 x 450 clear opening size.

RS232WH

600 x 450 clear opening size with Pin Torx screws for security applications.

RS233

600 x 600 clear opening size.

RS233H

600 x 600 clear opening size with Pin Torx screws for security applications.

RS234L

600 x 750 clear opening size.

RS234LH

600 x 750 clear opening size with Pin Torx screws for security applications.

RS234W

750 x 600 clear opening size.

RS234WH

750 x 600 clear opening size with Pin Torx screws for security applications.

RS235

750 x 750 clear opening size.

RS235H

750 x 750 clear opening size with Pin Torx screws for security applications.

RS236L

600 x 900 clear opening size.

RS236LH

600 x 900 clear opening size with Pin Torx screws for security applications.

RS236W

900 x 600 clear opening size.

RS236WH

900 x 600 clear opening size with Pin Torx screws for security applications.

Product Options

Type:

  • Special sizes are available to order.
  • Suffix 'H' - Pin Torx screw securing.
